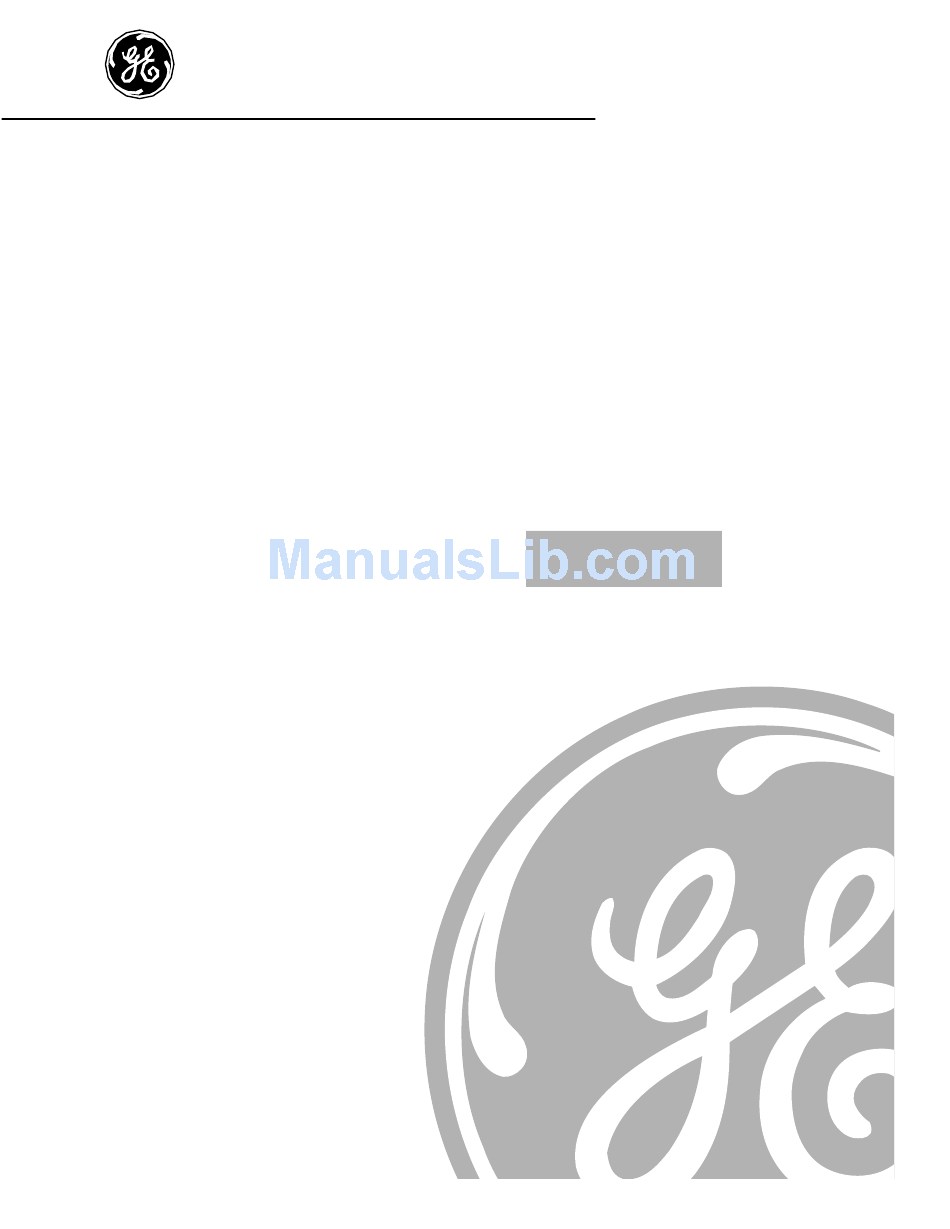

- Page 1 GE Appliances Room Conditioners Owner’s Manual & Installation Instructions AMH10 AMH12 Pub. No. 49-7371 F561535 CG 10-97...
-
Page 2: Table Of Contents
If you do need service, you can relax knowing help is only a phone call away. A list of toll-free customer service numbers is included in the back section. Or, you can always call the GE Answer Center® at 800.626.2000, 24 hours a day, 7 days a week. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury. SAFETY PRECAUTIONS This air conditioner must be properly Turn the mode control to OFF and unplug installed in accordance with the Installation your air conditioner before making any Instructions before it is used. -
Page 4: Controls
About the controls on the air conditioner. COOL HIGH COOL HIGH COOL ENERGY SAVER MODE CONTROL TEMP CONTROL Controls Mode Control Temp Control HIGH COOL, MED COOL and LOW COOL provide The temp control is used to maintain the cooling with different fan speeds. room temperature. - Page 5 Additional controls and important information. Exhaust Control The exhaust control is located below the air direction louvers. When set at CLOSE , only the air inside the room will be circulated and conditioned. When set at OPEN , some inside air is exhausted outside. Air Direction To change the air direction, adjust the louvers up or down or left and right.
-
Page 6: Care And Cleaning Of The Air Conditioner
The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot they may be professionally steam cleaned, a service available through your GE service outlet. Air Filter The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary. -
Page 7: Preparing To Install The Air Conditioner
Preparing to install the air conditioner. Read these instructions completely and carefully. Before You Begin NOTE TO INSTALLER: Leave these instructions with CAUTION: the air conditioner after installation is completed. Do not, under any circumstances, cut or remove the third (ground) prong from the NOTE TO CONSUMER: Keep this Owner’s Manual power cord. -
Page 8: Window Installation Instructions
Window Installation Instructions Parts Included Foam top window gasket Left Window locking accordion bracket panel Top mounting rail Window sash sealing ribbon Panel Right retainer accordion panel Panel Package of retainer putty Type B (5) Type A (5) Type C (4) - Page 9 Read completely, then follow step-by-step. Window Requirements These instructions are for a standard double- hung window. You will need to modify them for other types of windows. The air conditioner can be installed without the accordion panels if needed to fit in a narrow window.
- Page 10 Window Installation Instructions Remove the Air Conditioner From the Case. Remove the 2 shipping screws from the back of Slide the air conditioner from the case by the case. pulling on the air conditioner’s grip. Remove the locking bracket and grounding screw.
- Page 11 Install the Panels Slide the left and right accordion panels into Insert a panel retainer in the first fold of each the top mounting rail. panel and attach them to the case with 2 type C screws on each side. Top mounting rail Type C screws Panel retainer...
- Page 12 Window Installation Instructions Install the Window Locking Bracket and the Foam Top Window Gasket Attach the window locking bracket with a Cut the foam top window gasket to the window type A screw. width. Stuff the foam between the glass and the window to prevent air and insects from getting into the room.
-
Page 13: Through-The-Wall Installation
Through-the-Wall Installation Read completely, then follow step-by-step. Prepare and Install the Case in the Wall Remove the air conditioner from the case. For specific instructions, refer to the Window Installation Instructions. Make certain a wall receptacle is available close to the hole location or make arrangements to install a receptacle. -
Page 14: Troubleshooting Tips
Before you call for service… Troubleshooting Tips Save time and money! Review the chart below first and you may not need to call for service. Problem Possible Causes What To Do • Make sure the air conditioner plug is pushed Air conditioner The air conditioner completely into the outlet. -
Page 15: Air Conditioner Warranty
Any part of the air conditioner which fails due to a defect in materials or workmanship. One Year During this full one-year warranty, GE will also provide, free of charge, all labor From the date of the and in-home service to replace the defective part. -
Page 16: Service Telephone Numbers
Expert GE repair service is only a phone call away. Special Needs Service 800.626.2000 800-TDD-GEAC (800-833-4322) GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons with limited mobility. Service Contracts 800-626-2224 Purchase a GE service contract while your warranty is still in effect and you’ll receive a substantial discount.
