Innovaphone IP62 Quick Reference Manual

Quick Reference Guide: IP62
for innovaphone WiFi handset
Construction
Multifunction Button
Earpiece speaker
Color
Display
Soft keys
Off-hook
Key lock
Display Icons
Signal strength
Battery status
Keypad locked
Microphone off
Incoming call
Missed call
Outgoing call
Handset locked
Sound off
System connection

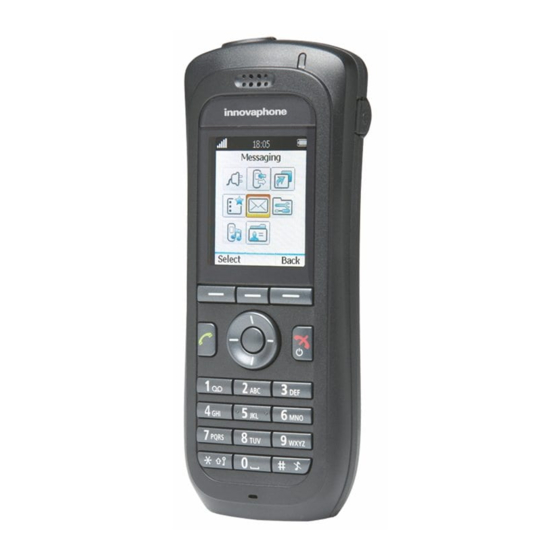

The IP WiFi telephone IP62 is suitable for use in office environments. It can be
operated on the innovaphone PBX as an extension line on its own or on the same
extension number in addition to a desk top phone. The WiFi connection enables the
subscriber to move more than 100m away from the base station.
Register
Please contact your administrator or local innovaphone partner in order to register
the IP62 WiFi telephone to the local network and the telephone system.
innovaphone PBX features
The IP62 is intuitive to use on the basis of the above mentioned keys and symbols.
Additional features described here are available for use on the innovaphone PBX.
Switching between calls
As soon as a call has been set-up, the right-and soft key takes on the function of the
R key. Pressing this key puts the current call on hold and a second call can be set
up. When both calls have been set up, press the R key and the number 2 on the
numeric pad to switch between calls and thus to change which call is active.
innovaphone® AG, Böblinger Straße 76, 71065 Sindelfingen, Germany, Tel +49 7031 7 30 09-0, Fax +49 70 31 7 30 09-99
info@innovaphone.com, www.innovaphone.com, Version: November 2012, Copyright © 2012 innovaphone® AG
Errors and omissions excepted. All information, technical specifications and delivery times may be subject to change.
LED
Headset connector
Date and time
more symbols
Soft key functio
Navigation
On / Off
On-hook
Mute
Mikrophone
