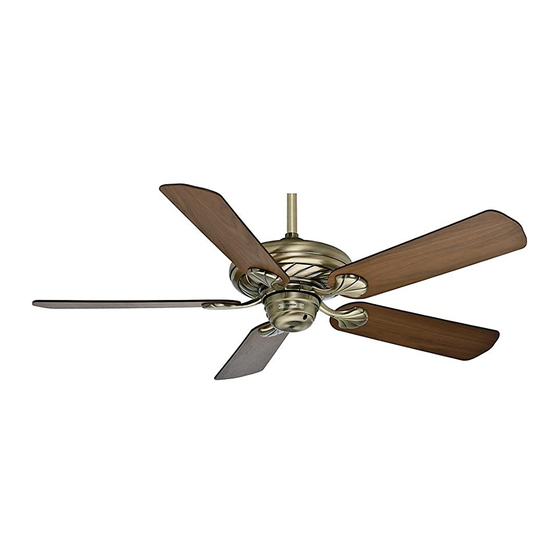

Casablanca ceiling fan Installation And Operation Manual
Ceiling fan
Hide thumbs
Also See for ceiling fan:
- Installation manual (22 pages) ,
- Installation and operation manual (21 pages) ,
- Owner's manual (15 pages)
Table of Contents
Advertisement
Quick Links
Table of Contents
Congratulations on purchasing your new
Casablanca® ceiling fan! It will provide
comfort and performance in your home
or office for many years. This installation
and operation manual contains complete
instructions for installing and operating
your fan.
We are proud of our work and appreciate
the opportunity to supply you with the
best ceiling fan available anywhere in the
world.
To register your fan, please visit:
www.CasablancaFanCo.com/register
Save your receipt for proof of purchase.
What to Expect with
Your Installation
Tools Needed
30 inches
7 feet
2
Hanging the Fan
6
Switch Housing
Light Kit
10
1
M6016-01 • 03/28/13 • © Casablanca Fan Company
www.CasablancaFanCo.com
Ceiling Bracket
Ladder
3
Wiring
Motor Housing
7
Maintenance
& Cleaning
11
1.888.227.2178
Preparation
4
5
Blades
8
9
Troubleshooting
?
?
?
13
14
Advertisement
Table of Contents
Related Manuals for Casablanca ceiling fan
Summary of Contents for Casablanca ceiling fan
- Page 1 7 feet Ladder We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the Hanging the Fan Wiring Motor Housing Blades world.
-
Page 2: What To Expect With Your Installation
- To reduce the risk of fire, electrical shock, or motor You may need a damage, use only Casablanca Solid State Speed Controls. friend to help you. w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. -
Page 3: Tools Needed
Tools Needed www.CasablancaFanCo.com 1.888.227.2178 Power Drill 9/64” Drill Bit Screwdrivers Ladder (optional) (optional) If mounting to a support structure, you will also need these tools. M6016-01 • 03/28/13 • © Casablanca Fan Company... -
Page 4: Ceiling Bracket
To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the Refer to warning w.1 on pg. 2 outlet box associated with the wall switch location. M6016-01 • 03/28/13 • © Casablanca Fan Company... - Page 5 Ceiling Bracket (continued) Preparation www.CasablancaFanCo.com www.CasablancaFanCo.com 1.888.227.2178 1.888.227.2178 Time Saver Tip: Get a helper to insert grommets, found in hardware bag, into the blades while you’re doing the next couple of steps. M6016-01 • 03/28/13 • © Casablanca Fan Company...
-
Page 6: Hanging The Fan
Be sure the ground wire attached the motor to the ceiling bracket. to the hanger faces out of the large opening in the ceiling bracket. Note: Fan style may vary. M6016-01 • 03/28/13 • © Casablanca Fan Company... - Page 7 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M6016-01 • 03/28/13 • © Casablanca Fan Company...
-
Page 8: Motor Housing
Tighten all four in the housing locks into place with the notch screws securely. in the ceiling bracket. The motor housing is not secured until the next step is complete. Do not leave unattended. M6016-01 • 03/28/13 • © Casablanca Fan Company... - Page 9 Your blades are shielded with Dust Armor® which is a nanotechnology coating that repels dust. For cleaning the fan, use soft brushes or cloths to prevent scratching. Cleaning agents may damage the finishes. M6016-01 • 03/28/13 • © Casablanca Fan Company...
-
Page 10: Switch Housing
Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing fixture falling. M6016-01 • 03/28/13 • © Casablanca Fan Company... -
Page 11: Light Kit
Go to www.CasablancaFanCo.com/FAQs and click the upper switch housing. Failure to properly secure all three “How do I install my fan without the light kit?” assembly screws could result in the light fixture falling. M6016-01 • 03/28/13 • © Casablanca Fan Company... -
Page 12: Operation Instructions
See next page for fan switch housing. all thumbscrews securely. operation instructions. Note: Glass shade style and number of lights may vary. M6016-01 • 03/28/13 • © Casablanca Fan Company... - Page 13 Cleaning products The light pull chain controls the may damage the finishes. light fixture: on and off. For questions regarding removing a light kit, call 1-888-227-2178. customer service M6016-01 • 03/28/13 • © Casablanca Fan Company...
-
Page 14: Troubleshooting
• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 7. • Check the plug connection in the switch housing. M6016-01 • 03/28/13 • © Casablanca Fan Company...
