Table of Contents

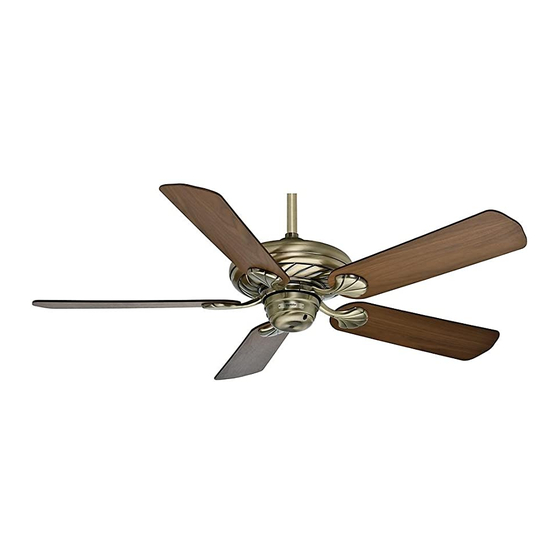

Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or office for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.
12

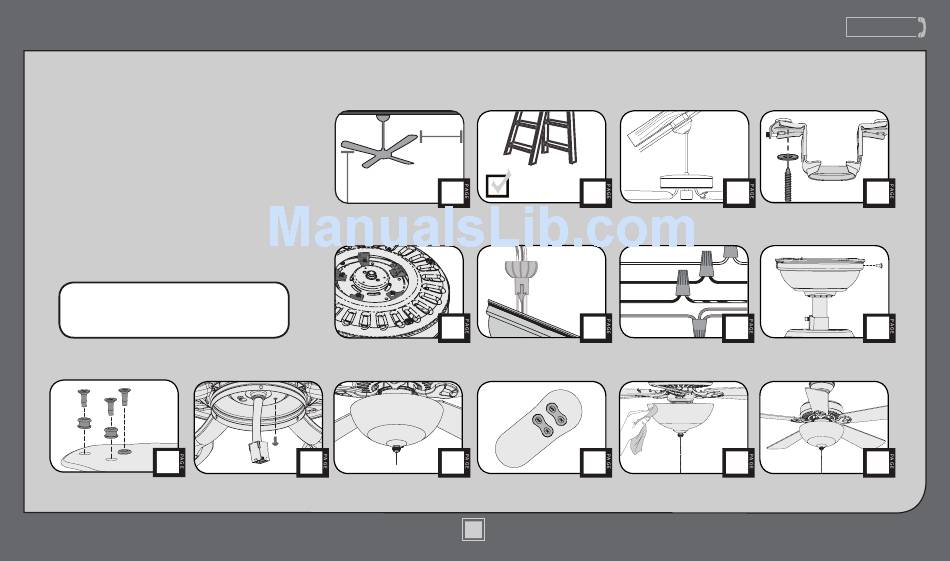

What to Expect with
Your Installation
7 feet
13
M0081-01 • 05/14/14 • © Hunter Fan Company
30 inches
2
Ladder
3
6
7
14
16
1
www.HunterFan.com
4
10
Operation,
Maintenance & Cleaning
?
?
17
1.888.830.1326
5
11
?
19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Casablanca Ceiling fan
Summary of Contents for Casablanca Ceiling fan
- Page 1 What to Expect with Your Installation Tools Needed Mounting Options Ceiling Bracket your new Hunter® ceiling fan! It will provide comfort and performance in your home or office for many years. This installation and operation 30 inches manual contains complete...
- Page 2 What to Expect with Your Installation www.HunterFan.com 1.888.830.1326 1.888.830.1326 1.888.830.1326 Read and Save These Instructions This product conforms to UL Standard 507. If you are unfamiliar with wiring, use a WARNINGS qualified electrician. w.1 - To reduce the risk of fire, electrical shock, or personal 30 inches injury, mount fan directly from building structure and/or an from blade tip...
- Page 3 Tools Needed www.HunterFan.com 1.888.830.1326 Pliers Wire Strippers Screwdrivers Ladder Power Drill 9/64” Drill Bit (optional) (optional) If mounting to a support structure, you will also need these tools. M0081-01 • 05/14/14 • © Hunter Fan Company...
- Page 4 CEILING Mounting Options www.HunterFan.com www.HunterFan.com 1.888.830.1326 1.866.268.1936 If you have a flat ceiling: Standard Hang your fan by a standard downrod (included). Support Support Mounting Structure Structure If you have an angled ceiling: Ceiling 1. You will need a longer downrod (sold separately). Outlet Box Angled (required)
- Page 5 (included) when securing (provided with outlet to support structure with box) when securing to approved electrical outlet existing ceiling fan-rated box. Drill 9/64” pilot holes outlet box. Make sure in support structure to aid it is securely installed in securing ceiling bracket...
- Page 6 Preparation www.HunterFan.com www.HunterFan.com 1.888.830.1326 1.888.830.1326 If you are installing multiple remote-controlled fans on the same circuit breaker, you may need to perform a few extra steps to prevent interference or faulty operation of your remote controls. Go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote- controlled fans?”...
- Page 7 Downrod www.HunterFan.com 1.888.830.1326 skip to next page Standard Downrod for ceilings 8-10’ high If you need a different downrod length follow these steps: Steps 1-5 to remove standard downrod pipe Longer Downrod for angled ceilings or ceilings 10’ or higher Shorter Downrod for fans installed...
- Page 8 Downrod (continued) www.HunterFan.com 1.888.830.1326 3/8” 8” KEEP! Remove the pre-installed The wires can be cut, but Hand tighten the downrod (at Tighten the setscrew setscrew so that the downrod leave at least 8” extending least 4-5 full turns) until it stops. with pliers.
- Page 9 Downrod (continued) www.HunterFan.com 1.888.830.1326 DO NOT PICK THE FAN UP BY THE Put the wires and downrod through the canopy. Let the canopy sit loosely on top CANOPY OR WIRES. Place the downrod of the fan. ball into the slot in the ceiling bracket. M0081-01 •...
- Page 10 Wiring www.HunterFan.com 1.888.830.1326 Note: To connect the wires, hold the bare metal leads together and place a wire connector over them, then twist clockwise until tight. Using the orange Using the orange wire wire connectors connectors from from the remote hardware bag, control hardware connect the black wire...
- Page 11 Canopy www.HunterFan.com 1.888.830.1326 Screw Holes Position the canopy so that, when Lift the canopy into place so that Insert the two canopy screws lifted into place, the canopy fits into the screw holes are aligned. found in the hardware bag. the hanging bracket as shown.
- Page 12 Blades www.HunterFan.com 1.888.830.1326 Remember the screws that you kept after removing the shipping blocks (page 6)? You need them for this step. Insert grommets found in the hardware Lightly attach the blade irons to the bag into the holes in the blades, then motor with the blade iron armature secure each blade to a blade iron with screws, then securely tighten after both...
- Page 13 Switch Housing www.HunterFan.com 1.888.830.1326 Feed the wire plug through the center Screw two housing assembly screws Insert the third screw, found in hole of the upper switch housing, then from the hardware bag halfway into hardware bag, into place and then wrap keyhole slots around the screws and the motor housing.
- Page 14 Light Kit Light Kit www.HunterFan.com 1.888.830.1326 Notch Switch Switch Housing Housing Screw Screw Partially install two of the switch housing Align the notches in the sides of the lower Install the third switch housing screw. screws found in the bag. Connect switch housing with the upper switch Tighten all three screws securely.
-
Page 15: Operation Instructions
Light Kit (continued) www.HunterFan.com 1.888.830.1326 Metal Plate Pull Light Pull Chain Chain Globe Globe Keeper Finial Finial Install a bulb into each of the Press the globe and globe keeper flush Connect the appropriate pull sockets. When necessary, replace against the metal plate. Thread the chain pendant to each of the short See next page for remote light pull chain through the hole in the... - Page 16 Remote Control www.HunterFan.com 1.888.830.1326 If you are installing multiple remote-controlled fans on the same circuit breaker, you may need to perform a few extra steps to prevent interference or faulty operation of your remote controls. Go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-controlled fans?”...
- Page 17 Operation, Maintenance, & Cleaning www.HunterFan.com 1.888.830.1326 Safe-Exit The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off to exit the room Control before the lights go out. To use Safe-Exit: Light • Press the Fan Off button for at least three seconds to Control initiate the Safe-Exit Mode.
- Page 18 Operation, Maintenance, & Cleaning (continued) www.HunterFan.com 1.888.830.1326 Metal Plate Globe Globe Keeper Reverse Finial Switch Finial Changing the bulbs - unscrew the finial Changing the direction of air flow - Cleaning the fan - use soft brushes or and remove it from the threaded rod. move the reverse switch to the opposite cloths to prevent scratching.
- Page 19 www.HunterFan.com Troubleshooting 1.888.830.1326 CFL bulbs flicker Fan doesn’t work Excessive wobbling Noisy Operation • Turn the light switch off and • Make sure power switch is on. • Tighten all of the blade and • Tighten the blade and blade back on.
