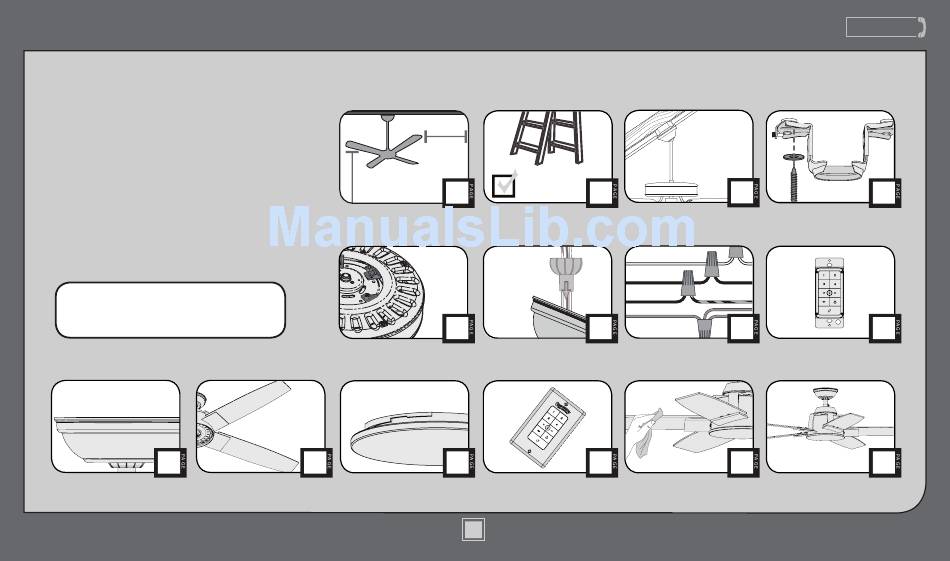

Table of Contents
Advertisement
Quick Links
Table of Contents
Congratulations on purchasing your new
Casablanca® ceiling fan! It will provide
comfort and performance in your home
or office for many years. This installation
and operation manual contains complete
instructions for installing and operating
your fan.
We are proud of our work and appreciate
the opportunity to supply you with the
best ceiling fan available anywhere in the
world.
To register your fan, please visit:
www.CasablancaFanCo.com/register
Save your receipt for proof of purchase.
Canopy
13
What to Expect with
Your Installation
7 feet
Preparation
Blades
Light Kit
14
M8518-01 • 10/05/14 • © Casablanca Fan Company
Tools Needed
30 inches
2
Ladder
3
Downrod
6
7
Operation
15
17
1
www.CasablancaFanCo.com
Mounting Options
Ceiling Bracket
4
Wiring
Wall Control
10
Maintenance
& Cleaning
Troubleshooting
?
?
19
1.888.227.2178
5
12
?
20
Advertisement
Table of Contents
Related Manuals for Casablanca ceiling fan
Summary of Contents for Casablanca ceiling fan
- Page 1 We are proud of our work and appreciate the opportunity to supply you with the Preparation Downrod Wiring Wall Control best ceiling fan available anywhere in the world. To register your fan, please visit: www.CasablancaFanCo.com/register Save your receipt for proof of purchase. Maintenance...
-
Page 2: What To Expect With Your Installation
Assess ceiling angle Select a downrod length installed and used in accordance with the instructions may cause harmful interference to radio communications. M8518-01 • 10/05/14 • © Casablanca Fan Company... -
Page 3: Tools Needed
Tools Needed www.CasablancaFanCo.com 1.888.227.2178 Pliers Wire Strippers Screwdrivers Ladder Power Drill 9/64” Drill Bit (optional) (optional) If mounting to a support structure, you will also need these tools. M8518-01 • 10/05/14 • © Casablanca Fan Company... -
Page 4: Mounting Options
You need BOTH You need ONLY a Longer a Longer Downrod & Downrod an Angled Mounting Kit *most common M8518-01 • 10/05/14 • © Casablanca Fan Company M8518-01 • 10/05/14 • © Casablanca Fan Company... -
Page 5: Ceiling Bracket
To avoid possible electrical shock, before 1-888-277-2178. installing your fan, disconnect the power by turning off the circuit breakers to the outlet Refer to warning w.1 on pg. 2 box associated with the wall switch location. M8518-01 • 10/05/14 • © Casablanca Fan Company... - Page 6 Preparation www.CasablancaFanCo.com www.CasablancaFanCo.com 1.888.227.2178 1.888.227.2178 Time Saver Tip: Get a helper to insert grommets, found in hardware bag, into the blades while you’re doing the next couple of steps. M8518-01 • 10/05/14 • © Casablanca Fan Company...
- Page 7 Steps 1-5 to remove standard downrod pipe Longer Downrod for angled ceilings or ceilings 10’ or higher Shorter Downrod for fans installed close to ceiling Steps 6-10 to reassemble with new pipe M8518-01 • 10/05/14 • © Casablanca Fan Company...
- Page 8 4-5 full turns) until it stops. with pliers. DO NOT can be inserted. from the top of the downrod. HAND TIGHTEN. 8” 3/8” If the setscrew is not tightened securely, the fan may fall. M8518-01 • 10/05/14 • © Casablanca Fan Company...
- Page 9 Put the wires and downrod through the canopy. Let the canopy sit loosely on top of the fan. CANOPY OR WIRES. Place the downrod ball into the slot in the ceiling bracket. Note: Fan style may vary. M8518-01 • 10/05/14 • © Casablanca Fan Company...
- Page 10 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M8518-01 • 10/05/14 • © Casablanca Fan Company...
- Page 11 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M8518-01 • 10/05/14 • © Casablanca Fan Company...
-
Page 12: Wall Control
(1) this device may not cause harmful interference, and (2) this device must accept the green wire coming from the wall control with an included wire nut. any interference received, including interference that may cause undesired operation. M8518-01 • 10/05/14 • © Casablanca Fan Company... - Page 13 Lift the canopy into place so that Insert the two canopy screws lifted into place, the canopy fits into the screw holes are aligned. found in the hardware bag. the hanging bracket as shown. M8518-01 • 10/05/14 • © Casablanca Fan Company...
- Page 14 Blade Iron Insert grommets found in the hardware bag into the holes in the blades, then secure each blade to a blade iron with screws found in the hardware bag. M8518-01 • 10/05/14 • © Casablanca Fan Company...
-
Page 15: Light Kit
LED assembly. housing by installing two light kit attachment Push excess wiring into the switch housing screws, found in the hardware bag, through the wire slot. through the slots, not the screw holes. M8518-01 • 10/05/14 • © Casablanca Fan Company... -
Page 16: Operation Instructions
See next page for fan operation instructions. M8518-01 • 10/05/14 • © Casablanca Fan Company... -
Page 17: Operation
4 button for four seconds to pair the remote. To prevent faulty operation, please ensure all other ceiling fans within range are turned off at the wall switch while pairing. M8518-01 • 10/05/14 • © Casablanca Fan Company... - Page 18 The reverse (a) downward air flow pattern. button changes the direction that In cold weather, use (b) upward the blades turn. The power button air flow pattern. turns the fan off and on. M8518-01 • 10/05/14 • © Casablanca Fan Company...
-
Page 19: Maintenance And Cleaning
Your new ceiling fan has earned the ENERGY STAR label because it meets high energy efficiency specifications any maintenance or set by the Environmental Protection Agency (EPA). -
Page 20: Troubleshooting
• Make sure you have paired the your remote controls, please go to remote. www.CasablancaFanCo.com/FAQs and click “How do I properly install multiple remote-controlled fans?” for information on how to correct this issue. M8518-01 • 10/05/14 • © Casablanca Fan Company...
