AMPLIFIER PLACEMENT
DO:
• Place the amplifier with the feet resting on a solid flat level surface.
• Place the amplifier in a well-vented area to provide proper cooling. In areas that lack proper ventilation, such as tight
cabinets or racks, it may be necessary to install small fans to create air movement.
DON'T:
• Don't block the ventilation holes on the top or bottom of the amplifier. Never place it on carpeting or similar material.
• Don't place the amplifier in any other position other than horizontal with the feet down. Never place on its side or
resting on the back where the terminals are located.
• Don't place the amplifier near heat sources, or in an area that it would be exposed to moisture or excessive humidity.
YOU SHOULD KNOW
• The power supply may cause a hum to be heard in some components if they are placed very close to the amplifier.

INSTALLATION

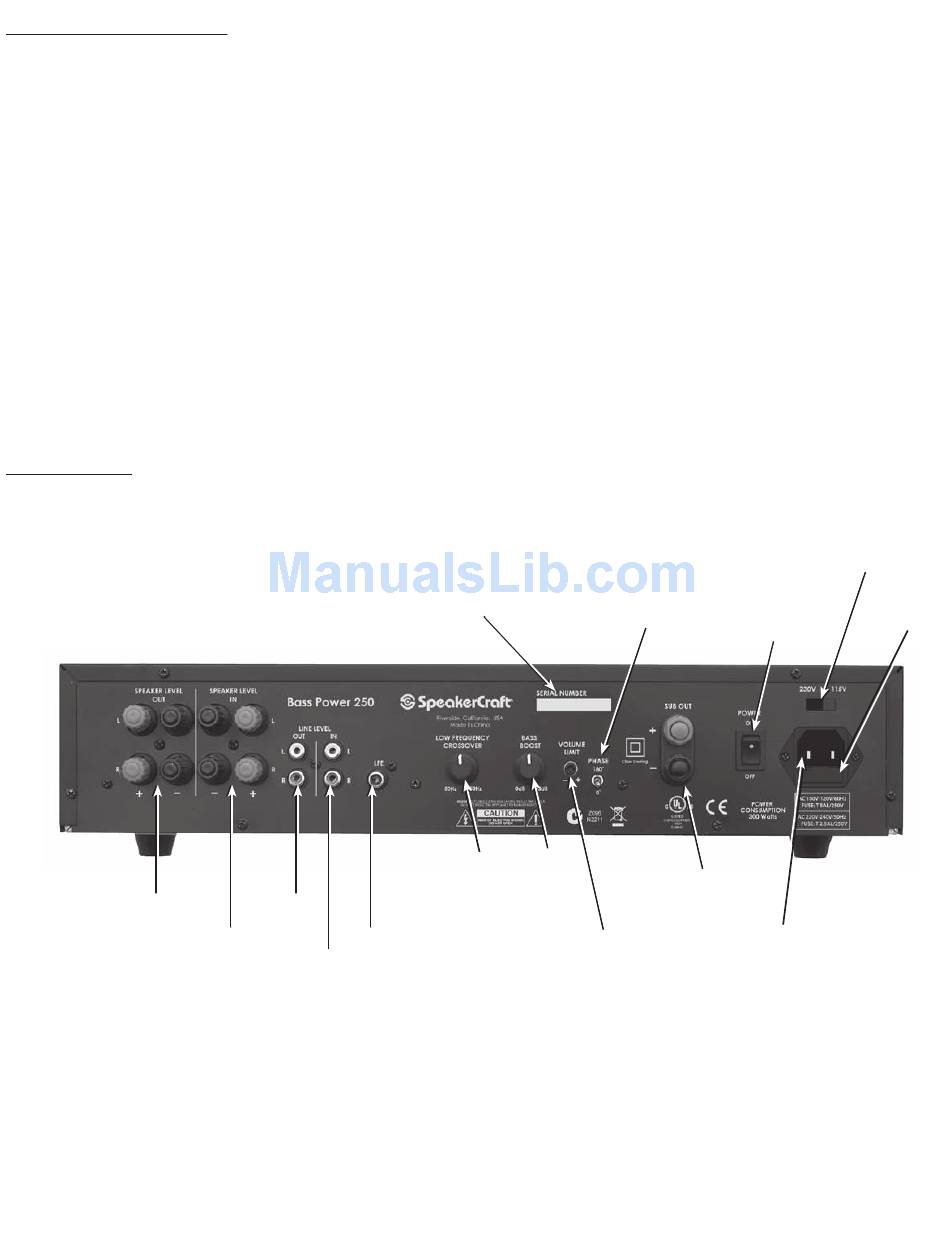

Please use Diagram 1 to familiarize yourself with the rear panel of the Bass Power amplifier.
DIAGRAM 1
Bass Power Rear Panel
Speaker Output Terminals
Speaker Input Terminals
Low Pass
Crossover
Line
Outputs
LFE Input
Line Inputs
Serial Number
Phase Switch
Bass
Boost
Control Control
Volume Limit
Control
3
Power Switch
Subwoofer
Output Terminals
IEC Power
Connector
Dual Voltage
Switch
Fuse
