OWNER'S MANUAL
Congratulations on your purchase of SpeakerCraft "Mirror Image Technology" In-Wall Speakers. Your
speakers are equipped with pivoting woofers and tweeters, which allow you to direct the sound
toward or away from a listening area, and "Mirror Image Technology" in which the tweeters are
mounted in an asymmetrical offset position to their baffles. This design minimizes diffraction and reflec-
tion effects for better stereo imaging than speakers with conventional center positioned tweeters.
SpeakerCraft has a wide variety of accessories to compliment your Mirror Image Technology In-Wall
Speakers. Contact your dealer or SpeakerCraft direct for more details.

SPEAKER PLACEMENT

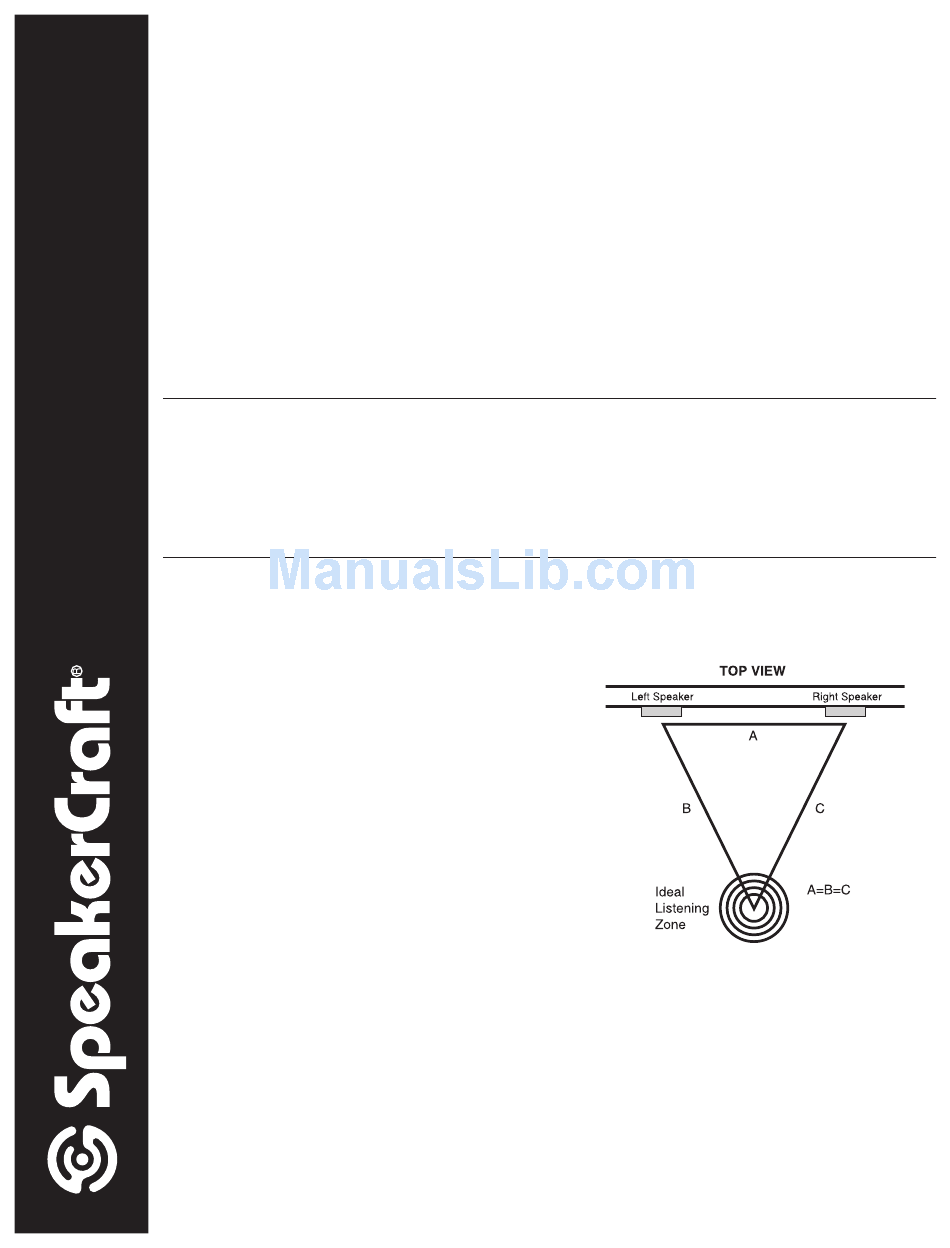

Best results are achieved when the left, right channel speakers
are all the same distance away from the listener. The front left
and right speakers should be placed so that they form an equi-
lateral triangle, with the listener at one point and each speaker
at the other two. (Figure 1) Ideal sound will be achieved when
the tweeters are placed at ear level or slightly higher. If the
speakers are positioned far away from the primary listening
area, adjust the pivoting tweeters so they are pointed toward
the primary listening area. NOTE: To avoid possible damage
to the pivoting tweeters, read the section entitled "SPEAKER
ADJUSTMENTS" in this manual prior to performing the tweeter
adjustment.

INSTALLATION CONSIDERATIONS

Before installing your speakers into the wall, you should con-
sider the placement carefully, taking into account the location
of electrical, plumbing and other fixtures. Contact your dealer
for assistance if you are not sure of the best location in your
particular room environment.

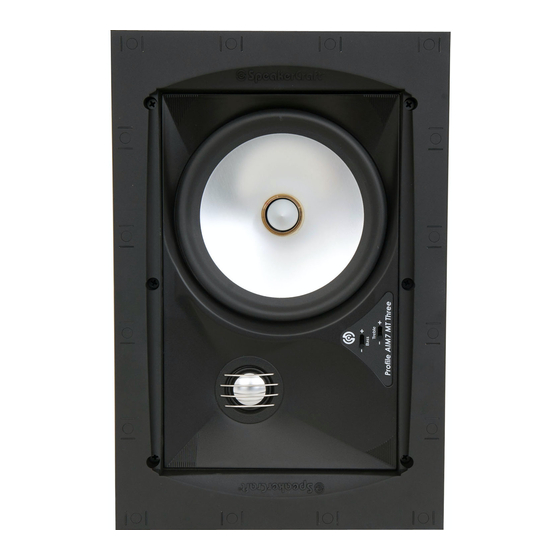

AIM7 MT
In-Wall Speaker System
Figure 1
