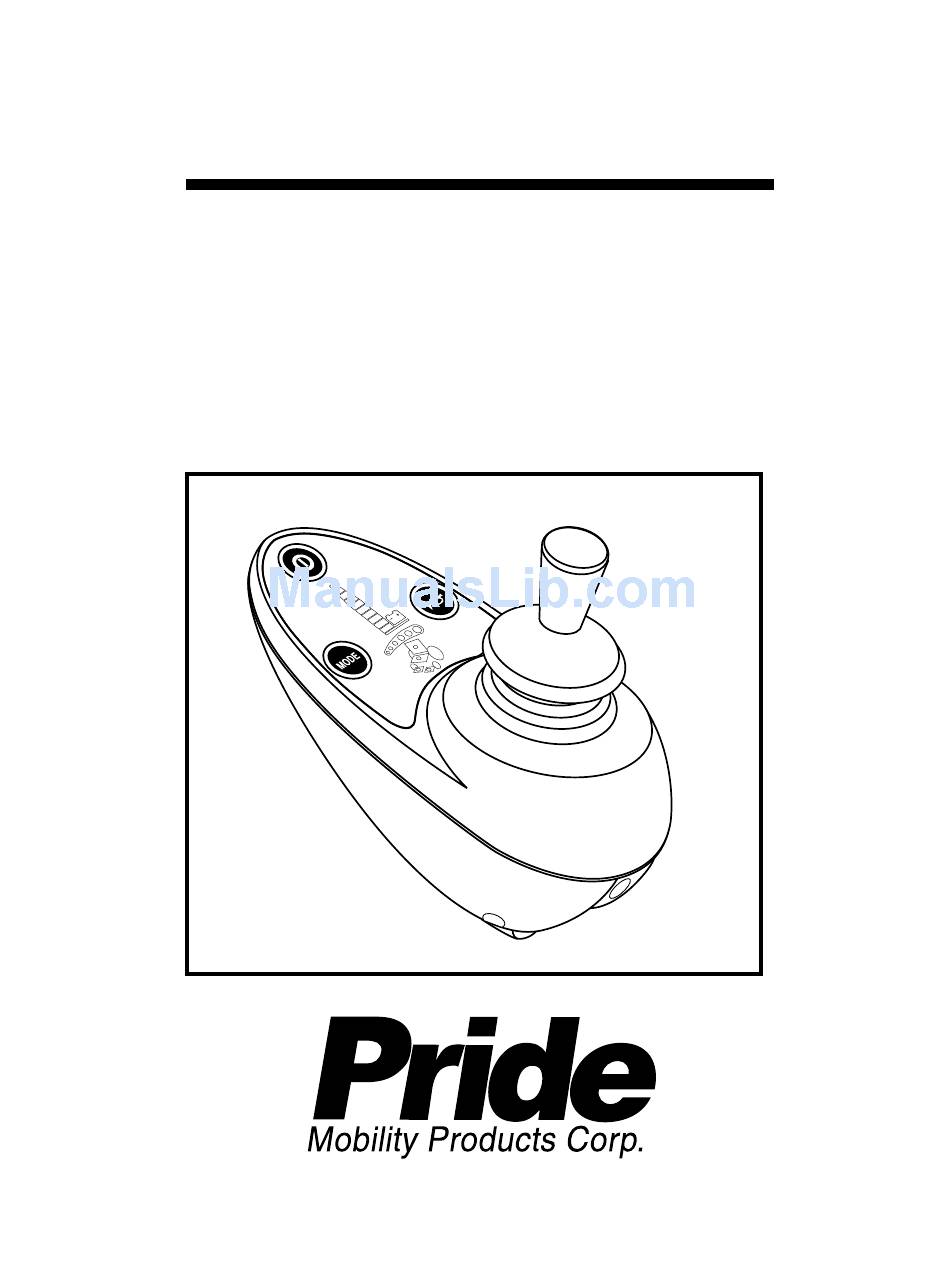

- Page 1 Synergy TRU-Balance BASIC OPERATION INSTRUCTIONS Remote Plus Controller Remote Plus Controller ACN# 088 609 661 ACN# 088 609 661...
- Page 2 Disposal and recycling - Contact your authorized Pride Provider for information on proper disposal and recycling of your Pride product and its packaging. Copyright © 2006 Pride Mobility Products Corporation INFMANU1773/Rev C/November 06 Remote Plus Controller Basic Operation Instructions www.pridemobility.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Basic Operation Instructions INTRODUCTION ... 4 REMOTE PLUS CONTROLLER ... 6 PRECAUTIONARY GUIDELINES ... 6 OPERATING THE REMOTE PLUS CONTROLLER ... 10 3-PIN OFF-BOARD CHARGER/PROGRAMMING SOCKET . 13 CONTROLLER COMMUNICATIONS CONNECTOR ... 14 ACTUATOR ADJUSTMENT ... 14 SPEED ADJUSTMENT/PROFILE SELECT ... -
Page 4: Introduction
Basic Operation Instructions INTRODUCTION WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that the design features will provide you with the conveniences you expect during your daily activities. Understanding how to safely operate and care for this product should bring you years of trouble free operations and service. - Page 5 Basic Operation Instructions NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and we will be glad to send you a new one immediately. My authorized Pride Provider Is: Name: _____________________________________________________ Address: ____________________________________________________ Phone Number: ______________________________________________ Purchase Date: _______________________________________________...
-
Page 6: Remote Plus Controller
REMOTE PLUS CONTROLLER The Remote Plus Controller is a fully-programmable, modular electronic controller system that allows you to operate your power chair. It is designed to allow the user to have complete control over chair movement and speed. The controller has been pre-programmed to meet a typical user’s needs. The program is set using either a personal computer with software provided by the controller manufacturer or with a hand-held programmer, also provided by the controller manufacturer. - Page 7 Basic Operation Instructions Electromagnetic and Radio Frequency Interference (EMI/RFI) WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves can have an adverse affect on the performance of electrically-powered mobility vehicles. Electromagnetic and Radio Frequency Interference can come from sources such as cellular phones, mobile two-way radios (such as walkie-talkies), radio stations, TV stations, amateur radio (HAM) transmitters, wireless computer links, microwave sig- nals, paging transmitters, and medium-range mobile transceivers used by emergency...
-
Page 8: Sleep Mode
Remote Plus Controller Features Figure 1 provides information on the Remote Plus components and connections. Use this diagram to familiarize yourself with the function and location of each component before using the Remote Plus Controller. The following functions are available with the Remote Plus Controller: ! Joystick Control The joystick is used to control the direction and speed of the power chair. - Page 9 Basic Operation Instructions On/Off Button Press to power on or off the power chair and controller. Mode Button Used to select the various functions available with the Remote Plus. Speed/Profile Indicator Series of five colored LEDs which display the speed or profile setting.
-
Page 10: Operating The Remote Plus Controller
OPERATING THE REMOTE PLUS CONTROLLER The Remote Plus Controller is used to operate your power chair and all of its components. The Remote Plus controller consists of (see figure 2): 1. joystick 2. keypad 3. controller communications connector 4. 3-pin off-board charger/programming socket 5. - Page 11 Basic Operation Instructions Figure 2. Remote Plus Controller Figure 4. 7-Key Controller Keypad Figure 3. 3-Key Controller Keypad www.pridemobility.com Remote Plus Controller...
- Page 12 Mode Key (Speed Settings) The mode key controls the speed settings. The Remote Plus speed settings range from 1 to 5. Typically, the slowest speed setting is 1 and the fastest speed setting is 5. The settings are indicated by the number of lights that are lit on the speed setting indicator.
-
Page 13: 3-Pin Off-Board Charger/Programming Socket
Basic Operation Instructions NOTE: If you still get “ripple up and down of lights,” contact your au- thorized Pride Provider. NOTE: When the batteries approach a discharged state, the red lights will begin to slowly flash, reminding you the batteries need to be charged immediately! Right/Left Turn Indicator Keys (For Optional Equipment) The right/left turn indicator keys toggle either the left or right turn indicators. -
Page 14: Controller Communications Connector
WARNING! Only chargers with Neutrik NC3MX plugs should be connected to the 3-pin off-board charger/programming socket. See your authorized Pride Provider for more information. NOTE: Changes to the programming can only be made by an autho- rized Pride Provider. CONTROLLER COMMUNICATIONS CONNECTOR The controller communications connector provides the Remote Plus with a connection to the power module via an intermediate harness equipped with an onboard/off- board charger connector. -
Page 15: Speed Adjustment/Profile Select
Basic Operation Instructions SPEED ADJUSTMENT/PROFILE SELECT To select a speed setting: 1. Press the on/off key to power on the controller. 2. Press the mode key once. 3. To increase chair speed, push the joystick to the right. Each time you push the joystick, you will increase the speed setting in the speed setting indicator. -
Page 16: Fault Codes
FAULT CODES The battery condition meter will flash fault codes when the controller system detects an abnormal condition in the electrical system. All of the battery condition meter LEDs will flash a number of times quickly, then pause, then flash again. The battery condition meter will continue to flash the fault codes until the problem is fixed. -
Page 17: Care And Maintenance
NOTES Basic Operation Instructions CARE AND MAINTENANCE Refer to your power chair owner’s manual for proper cleaning and disposal instructions. WARRANTY For two (2) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, the controller or any of its components found upon examination by an authorized representative of Pride to be defective in material and/or workmanship. - Page 18 NOTES Basic Operation Instructions Remote Plus Controller www.pridemobility.com...
- Page 19 NOTES Basic Operation Instructions www.pridemobility.com Remote Plus Controller...
- Page 20 St. Catharines, Ontario L2R 6P7 Canada Pride Mobility Products Ltd. Unit 106, Heyford Park Camp Road Upper Heyford, Oxfordshire OX25 5HA Pride Mobility Products Australia Pty. Ltd. 21 Healey Road Dandenong, 3175 Victoria, Australia Pride Mobility Products Italia S.r.l. Via del Progresso - ang. Via del Lavoro Loc.
