Page 1: User Manual

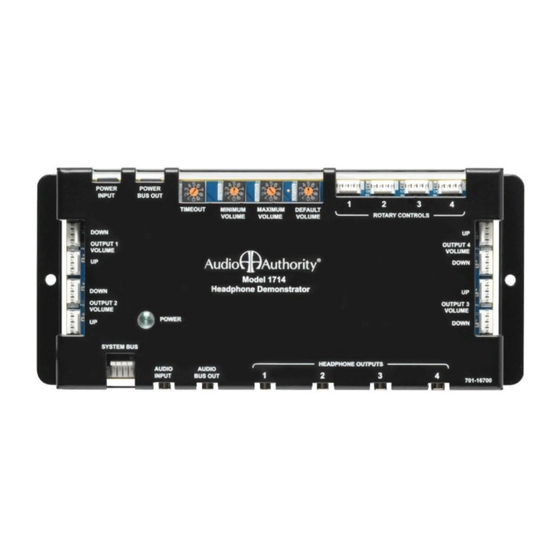

User Manual Model 1714 Headphone Demonstration Amplifier with Volume Control... - Page 2 Introduction The 1714 is designed to provide high fidelity headphone amplification and volume control for self service retail demonstration. All outputs are active all the time, volume is adjusted individually for all outputs. VOLUME CONTROL BUTTONS VOLUME UP 2 VOLUME DOWN 2...
-
Page 3: Package Contents
To control volume using a volume knob, connect a four-conductor encoder such as Audio Authority’s Model 1793 or 1794 to the four-pin encoder port at each position. Push the knob to mute audio. These controls allow mute by pressing the knob. - Page 4 The audio BUS OUTPUT feeds the currently selected audio input (MUSIC PLAYER) to more 1714 modules in the system. Do not connect headphones to this output. Connect a 3.5mm patch cord from the first 1714 bus output to the second 1714 player input, etc.
