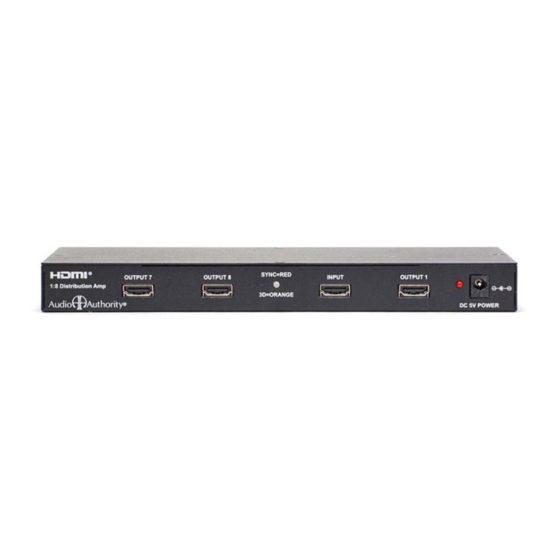

Audio Authority HDMI 1398B User Manual

Hdmi
Hide thumbs Also See for HDMI 1398B:
Table of Contents

Advertisement

Quick Links

Download this manual
HDMI OUT
OUTPUT 7
CLUX-8M3D
1:8 Distribution Amp
HDMI SPLITTER
OUTPUT 2
EDID
STD
TV

User Manual

Model 1398B
Distribution Amplifier
HDMI OUT
OUTPUT 8
OUTPUT 3
Model 1398B
Audio Authority® Corporation
®
SYNC-RED
SYNC=RED
HDMI IN
INPUT
3D-ORG
3D=ORANGE
OUTPUT 4
800-322-8346 • 859-233-4599 • www.audioauthority.com
HDMI OUT
OUTPUT 1
OUTPUT 5
OUTPUT 6
POWER
DC 5V
DC 5V POWER
CEC
AUTO-RESET
ON
OFF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDMI 1398B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audio Authority HDMI 1398B

Summary of Contents for Audio Authority HDMI 1398B

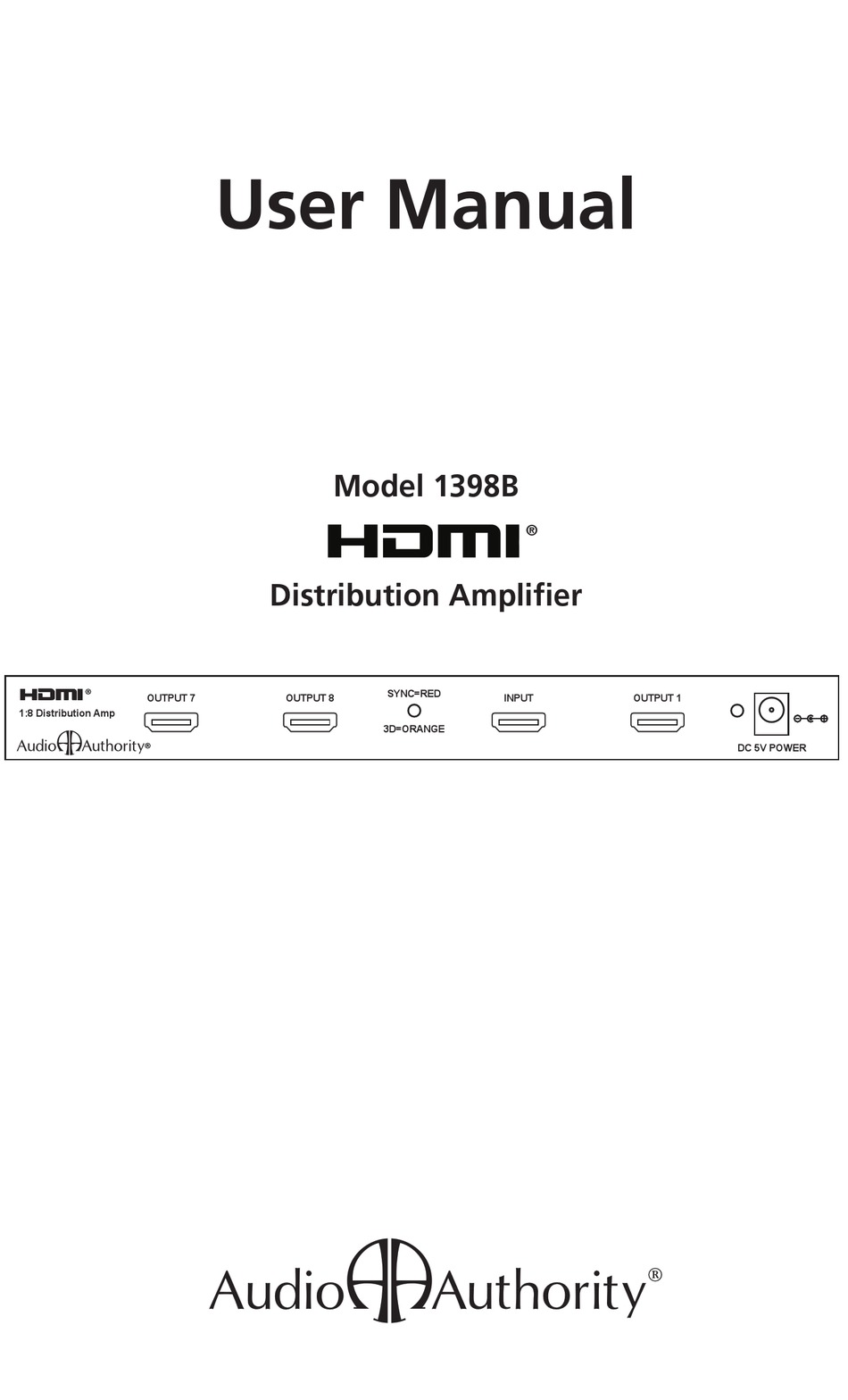

  • Page 1: User Manual

    User Manual Model 1398B ® Distribution Amplifier HDMI OUT HDMI OUT SYNC-RED SYNC=RED HDMI IN HDMI OUT POWER OUTPUT 7 OUTPUT 8 INPUT OUTPUT 1 CLUX-8M3D 1:8 Distribution Amp HDMI SPLITTER 3D-ORG 3D=ORANGE DC 5V DC 5V POWER OUTPUT 2...

  • Page 2: Liability Statement

    Liability Statement Every effort has been made to ensure that this product is free of defects. Audio Authority ® cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly.

  • Page 3: Table Of Contents

    Model 1398B ® Distribution Amplifier Table Of Contents Introduction ......4 Checking Package Contents ....4 Getting the Best Results .

  • Page 4: Introduction

    ® signal from one source to multiple HDMI displays without signal degradation or loss of encryption. The 1398B is HDCP 1.1 compliant, and HDMI v1.3 compliant, supporting 3d content, deep color video and Dolby TrueHD and DTS-HD Master Audio. Ultra high bandwidth, equalized inputs, and amplified outputs insure a flawless installation even with long cable runs.

  • Page 5: Getting The Best Results

    Higher Lower Shorter Distance Longer Distance 3.0 GETTING THE BEST RESULTS Many factors influence the quality and reliability of HDMI signal distribution installations. The following are the main factors to consider, and basic precautions that will ensure the best possible performance. •...

  • Page 6: Installation

    • Connect an HDMI approved cable from the HDMI source to the input of the 1398B. Cable lengths should be kept as short as possible. • Connect the outputs of the 1398B to their displays or other devices. • Connect the power adapter to the AC source and then to the 1398B.
  • Page 7 2. EDID* SWITCH: Leave on TV setting, which supports 3D content, unless some TVs do not sync with the source. In TV mode the 1398B reads the EDID on output 1 and records it, then allows the source to send matching HDMI signals to the other seven HDMI outputs.

  • Page 8: Troubleshooting

    • If some displays are not receiving video signal, or lose signal, check to see if they are on the wrong input. One display may be sending out a CEC command, changing the inputs on other displays. Turn on the 1398B CEC AUTO-RESET (see page 7), or turn the displays’ CEC feature off.

  • Page 9: Specifications

    7.0 SPECIFICATIONS Compliance HDMI 1.3 compliant HDCP 1.1 compliant Video Inputs HDMI (all models) 1x via HDMI connector (Type A) Video Output 1394 HDMI 4x via HDMI connector (Type A) 1398 HDMI 8x via HDMI connector (Type A) Audio Output HDMI HD-Audio, including Dolby TrueHD &...

  • Page 10: Limited Warranty

    8.0 LIMITED WARRANTY Should any consumer product from Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end- user, Audio Authority guarantees that we will replace the defective product at no cost.

  • Page 11: Regulatory Compliance

    9.0 REGULATORY COMPLIANCE Model 1398B distribution amplifiers have been tested for compliance with appropriate FCC and CE rules and regulations and are also RoHS compliant. The power adaptor has been tested for compliance with UL, CE and CSA rules and regulations and is also RoHS compliant.
  • Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 Website: http://www.audioauthority.com E-103 8/11...
