Summary of Contents for Audio Authority 1354

  • Page 1: User Manual

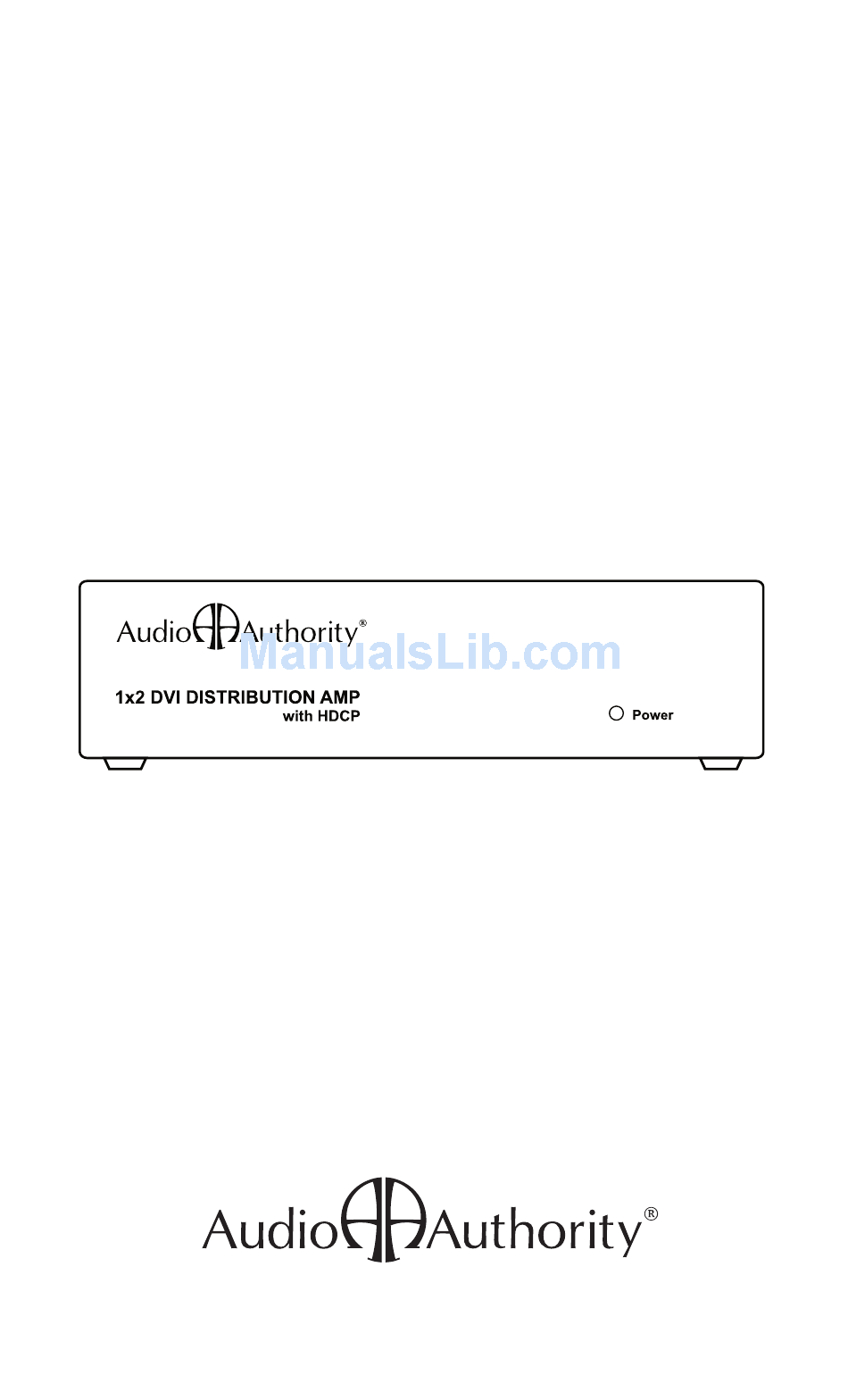

    User Manual Model 1352 and 1354 1x2 and 1x4 DVI Distribution Amplifi er...
  • Page 3: Table Of Contents

    Table Of Contents Introduction ..... . . 4 Specifi cations ..... . 5 Checking Package Contents .
  • Page 4: Introduction

    1.1 Liability Statement Every effort has been made to ensure that this product is free of errors. Audio Authority cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly.
  • Page 5: Specifications

    2.0 SPECIFICATIONS Performance HDTV Resolutions Supported 480i, 480p, 720p, 1080i, 1080p Maximum PC Resolution 1920 X 1200 @ 60Hz (WUXGA) Bandwidth 165MHz Maximum Cable Distance (Outputs) 32 feet (10M) Using Premium Cable I/O Connectors DVI Destination Port Connectors Two or four DVI-I 29 pin female Input Port Connector One DVI-I 29 pin female Mechanical...
  • Page 6: Checking Package Contents

    Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: • 1352 or 1x 1354 DVI Distribution Amplifi er • 9 VDC AC Adapter • User Manual Note: Please retain the original packing material should the need ever arise to return the unit.
  • Page 7: Operating The Unit

    5.0 OPERATING THE UNIT Before installation, please make sure all devices you wish to connect have been turned off. • Connect a DVI HDCP compliant signal to the input connector using premium quality cable. • Connect two or four (depending on model) DVI HDCP compliant devices to the Distribution Amplifi er’s outputs using premium quality cable.
  • Page 8: Troubleshooting

    DVI switcher in the signal path after a distribution amp; this confi guration does not work. If the problem still persists after trying the above suggestions, contact the Audio Authority Technical Service department via email: support@audioauthority.com, or call 800/322-8346 or 859/233-4599.
  • Page 9: Limited Warranty

    7.0 LIMITED WARRANTY Should any consumer use product from Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only).
  • Page 10: Regulatory Compliance

    8.0 REGULATORY COMPLIANCE The 1352 and 1354 DVI Distribution Amplifi er have been tested for compliance with FCC and CE Regulations. The Power Adaptor/Supply has been tested for compliance with UL, CSA & CE Regulations. 9.0 CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact Audio Authority using the information below.
  • Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859/233-4599 • Fax: 859/233-4510 Customer Toll-Free USA & Canada: 800/322-8346 Website: http://www.audioauthority.com 752-497 11/05...
