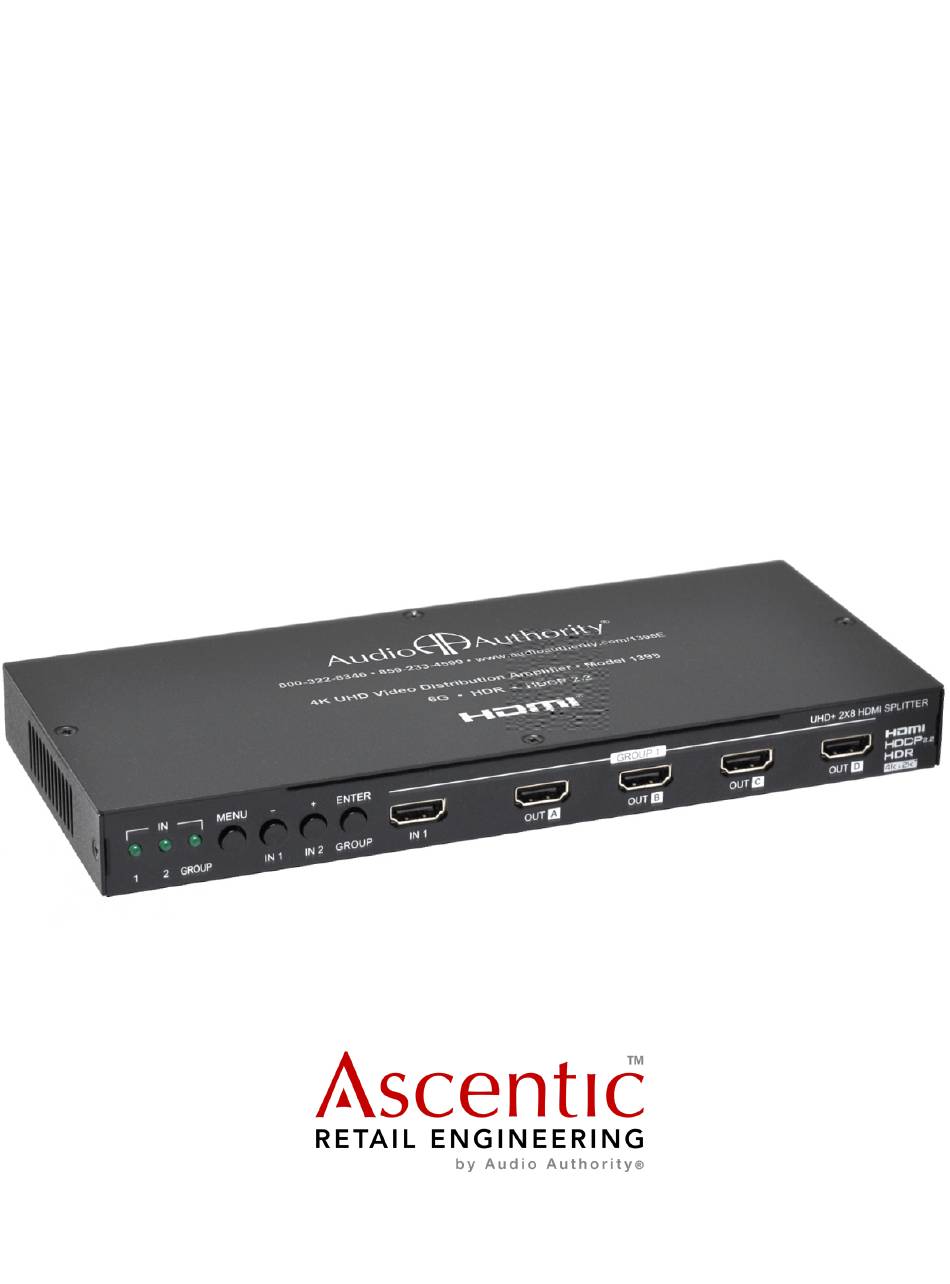

- Page 1 User Manual Model 1399 4K Video Distribution Amplifier...
-
Page 2: Package Contents

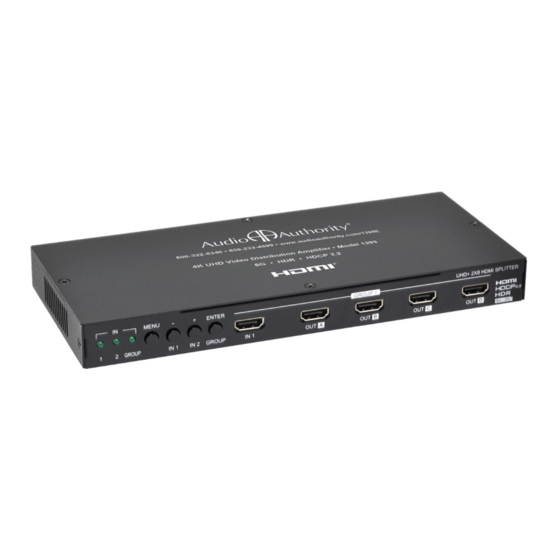

Introduction The Model 1399 combines interactivity with video switching and distribution in ultra-high definition 4K resolution. Configure each output to scale 4K to 1080p or apply color space conversion (4:4:4 to 4:2:0), as appropriate. This splitter also includes a special “Group Mode” which allows the unit to function as two independent 1×4 splitters. When Group Mode is enabled, each of the 2 HDMI inputs are routed to their own discrete set of 4 outputs. - Page 3 Eight HDMI Outputs The model 1399 HDMI outputs deliver up to 4K@60 video + audio content to HDMI display screens, AVRs or sound bars. CEC commands can be used to control the sink device. Video File Information MPEG-4 encoded videos are supported with maximum video resolution up to 4K@60. Test all files before deployment. Two HDMI Inputs The model 1399 has two HDMI inputs to connect peripheral devices such as MediaHubs, game consoles, and set-top boxes.
- Page 4 MAIN MENU LEVEL 2 LEVEL 3 EDID Control In 1-2 INT UHD+ 2CH Assign the current EDID to Input 1 or Input 2 INT UHD+ MCH INT HDR 2CH INT HDR MCH USER 1 USER 2 COPY OUT A COPY OUT B COPY OUT C COPY OUT D COPY OUT E...
- Page 5 MAIN MENU LEVEL 2 LEVEL 3 OSD Setting Panel Color GREEN BLUE GRAY Font Color BLACK WHITE GREEN BLUE YELLOW CYAN MAGENTA Free Run Set the color to display when no source is detected GREEN BLUE BLACK COLOR Default Reset the OSD settings to factory default System Setting [Vendor ID] [Product ID]...
- Page 6 GET DESCIRPTION Show the unit’s current description/name. SET KEYLOCK N1 Enable or disable the front panel key lock. GET KEYLOCK Show the current front panel key lock status. SET OSD DEFAULT Reset the OSD configuration to the factory defaults. SET FACTORY DEFAULT Reset all configurations to the factory defaults.
- Page 7 GET OSD FONT COLOR Show the OSD menu’s current font color. SET OSD FREERUN COLOR N1 Set the Free Run mode and the color used when the input signal is lost and Free Run is active. GET OSD FREERUN COLOR Show the current Free Run color setting.
-
Page 8: Installation
Color Space: This tab allows for the selection of which color formats and bit depths are supported, including BT.2020 and HDR support options. Others: This tab contains options for supporting 3D and defining the CEC Address. Once the user is finished editing or creating an EDID it can be saved to a *.bin file locally or uploaded directly to the unit using the “Save”... -
Page 9: Example System
The MH2-4K MediaHub is an innovative and effective way to organize your presentation. It connects directly to one of the two HDMI inputs. Ascentic is a trademark of Audio Authority Corp. 2048 Mercer Road, Lexington, Kentucky 40511-1071 800-322-8346 •...
