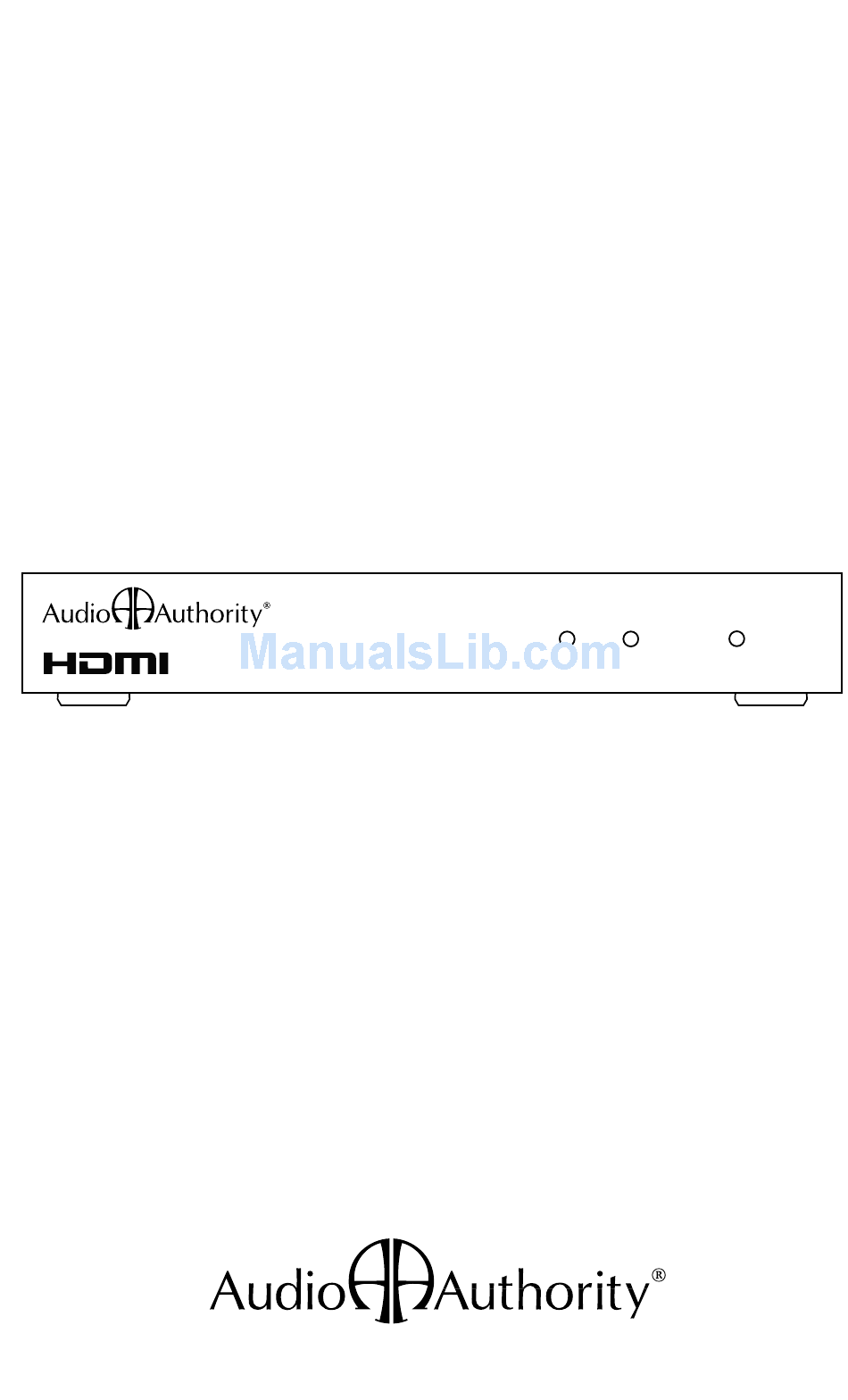

Page 1: User Manual
User Manual POWER Model 1392 1 x 2 Distribution Amplifier DC POWER HDMI OUTPUTS 5V-2A HDMI INPUT Model 1392, 1394, and 1398 HDMI Distribution Amplifiers... -
Page 3: Table Of Contents
Table Of Contents Introduction ..... . . 4 Specifications ..... . 5 Checking Package Contents . -
Page 4: Introduction
HDMI Licensing LLC. 1.2 FEATURES The 1392, 1394 and 1398 have many features that enable them to perform in a superior manner. Among those features you will find: • Distributes one HDMI source to multiple destinations •... -
Page 5: Specifications
Model 1398: HDMI, TMDS x8 Mechanical Dimensions (H-W-D) Model 1392 1.1 x 7.6 x 3.6 (28 x 192 x 90.4mm) Model 1394 1.1 x 10.4 x6 (28 x 264 x 153mm) Model 1398 1.1 x 11.2 x 7 (44 x 284 x 175mm) Weight Model 1392 1.2 lbs (550g) -
Page 6: Checking Package Contents
Finally, there is no power switch. The unit will begin to function as soon as the AC adapter is connected to the unit and an AC supply. Model 1392 HDMI Distribution Amplifier, front view. Models 1394 and 1398 are similar. POWER Model 1392... - Page 7 4.1 Installation of Mounting Components The 1392 and 1394 DAs can be mounted on any flat surface and the 1398 DA can be mounted in a standard 19” rack. Mounting the 1392 or 1394 DAs Attach the two “L” shaped mounting brackets to the product using the furnished hardware and then attach the combined assembly to the desired location.
-
Page 8: Operating The Unit
5.0 OPERATING THE UNIT • To use any of the 1390 series HDMI Distribution Amplifiers, connect an HDMI approved cable, no more than 50* feet in length, from the HDMI source to the input of the DA. • Connect the outputs of the DA to their destination devices using HDMI approved cables no more than 50 feet long.* •... -
Page 9: Troubleshooting
HDMI capable. In addition, HDCP encryption requires processing dependent on the equipment you have connected to both the source and destination devices. If the problem still persists after trying the above suggestions, contact the Audio Authority Technical Service department via email: support@audioauthority.com, or call 800-322-8346 or 859-233-4599. -
Page 10: Limited Warranty
7.0 LIMITED WARRANTY Should any consumer use product from Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only). -
Page 11: Regulatory Compliance
8.0 REGULATORY COMPLIANCE The 1392, 1394, and 1398 Distribution Amplifiers have been tested for compliance with appropriate FCC and CE rules and regulations and are also RoHS compliant. The Power Adaptor/Supplies have been tested for compliance with UL, CE and CSA rules and regulations and are also RoHS compliant. - Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 Website: http://www.audioauthority.com E-068 12/06...
