Summary of Contents for Audio Authority 1398C
-

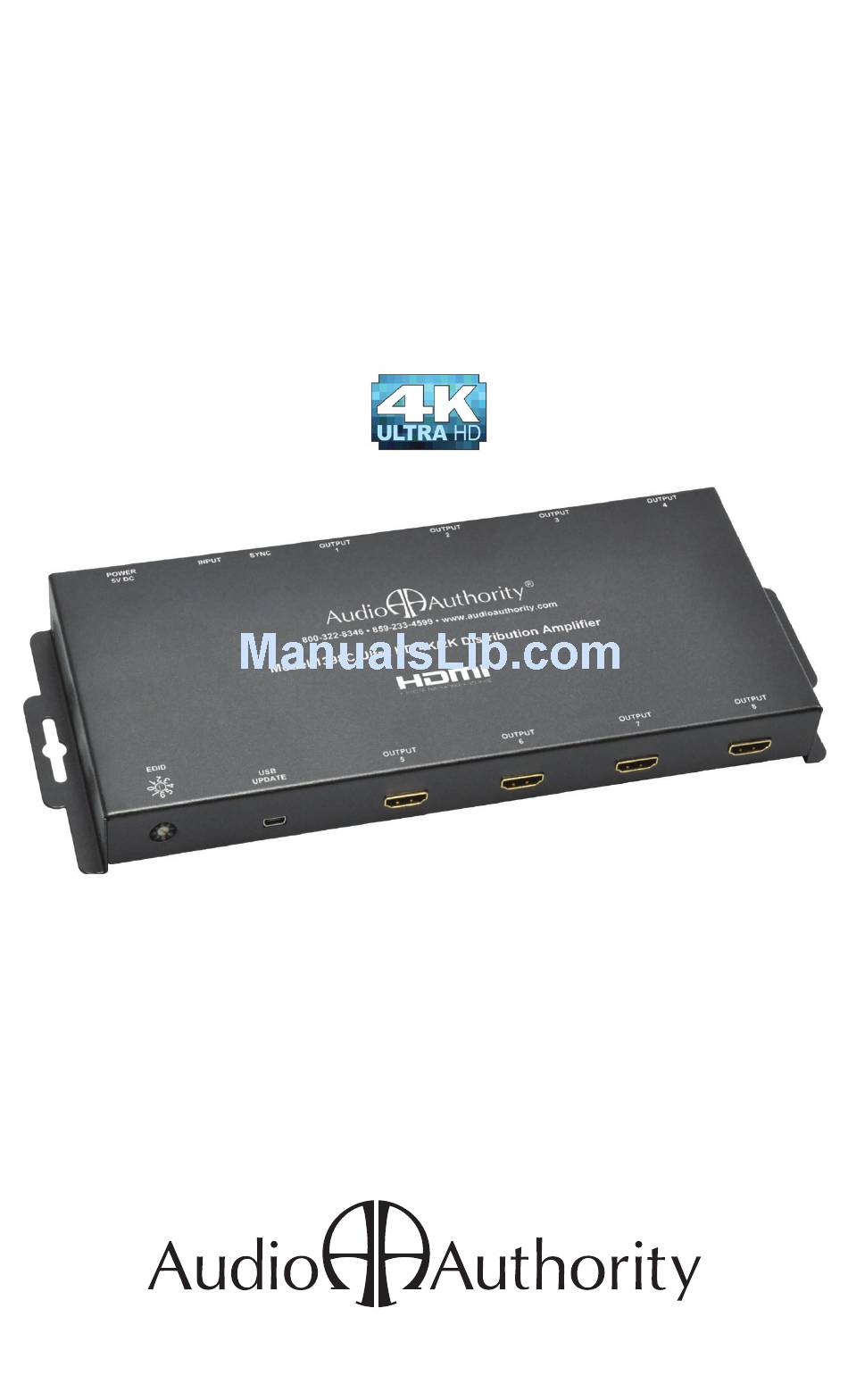

Page 1: User Manual

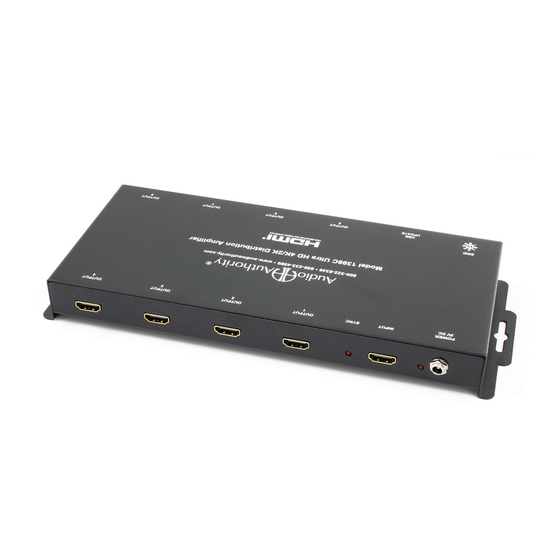

User Manual Model 1398C 4K/2K Video Distribution Amplifier ®... -
Page 2: Power
Every effort has been made to ensure that this product is free of defects. Audio Authority® cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. -
Page 3: Table Of Contents
Model 1398C ® 4K/2K Distribution Amplifier Table Of Contents Introduction Checking Package Contents Getting the Best Results Planning a Distribution System Installation Troubleshooting Specifications Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
Thanks for purchasing the Model 1398C UHD distribution amplifier from Audio Authority®. The 1398C is designed to split a 4K HDMI® signal from one source to a wide spectrum of HDMI displays in retail demo environments. It is the ideal solution for merchandising HD displays using the latest content at the highest resolutions, and even 3D. -
Page 5: Getting The Best Results
Getting the Best Results Many factors influence the quality and reliability of HDMI signal distribution installations. The following are the main factors to consider, and basic precautions that will ensure the best possible performance. ● Resolution tracking - Set the source to output the best resolution that all TVs are capable of displaying. -
Page 6: Planning A Distribution System
If you plan to install a very large HDMI signal distribution network, you should be aware of system limitations related to content protection. Audio Authority can help you design a distribution system that suits your needs and is easy to install and operate. -
Page 7: Installation
Study the drawing below and become familiar with the controls, signal input, outputs and power input. OUTPUT 4 OUTPUT 8 OUTPUT 3 OUTPUT 7 OUTPUT 6 OUTPUT 2 OUTPUT 5 OUTPUT 1 SYNC LED FIRMWARE INPUT UPDATE POWER LED POWER EDID 1398C... -
Page 8: Output
EDID. The display that has the lowest resolution support will be the reference EDID for incoming HDMI sources. B. While connecting a new monitor to the 1398C under mode 6 (Auto EDID) & mode 7 (EDID learning mode), you may experience a short period of time without any program material viewed on the display. -
Page 9: Troubleshooting
Firmware Updates Contact Audio Authority Technical Support at 800-322-8346 for information regarding Firmware Updates. Troubleshooting ● For 4K resolution, first make certain that the input cable is as short as possible. HDMI cable design and quality are extremely important in long cable runs where capacitance can severely effect performance. -
Page 10: Specifications
Specifications Model 1398C 1x8 Distribution Amplifier (Splitter) HDMI Compliance HDMI Deep Color, 3D & 4K/2K DVI Compliance DVI 1.0 HDCP Compliance HDCP 1.3 Video Bandwidth Single-link 340MHz (10.2Gbps) Video Support Up to 4K @30 Audio Support DTS-HD Master Audio, Dolby TrueHD Dolby... -
Page 11: Limited Warranty
If this Audio Authority® product fails due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority®... - Page 12 ® 2048 Mercer Road, Lexington, KY 40511-1071 USA 800-322-8346 • 859-233-4599 • Fax: 859-233-4510 support@audioauthority.com • www.audioauthority.com 752-663 Rev. 20140527...
