Summary of Contents for Topcom BUTLER 2511 DELUXE

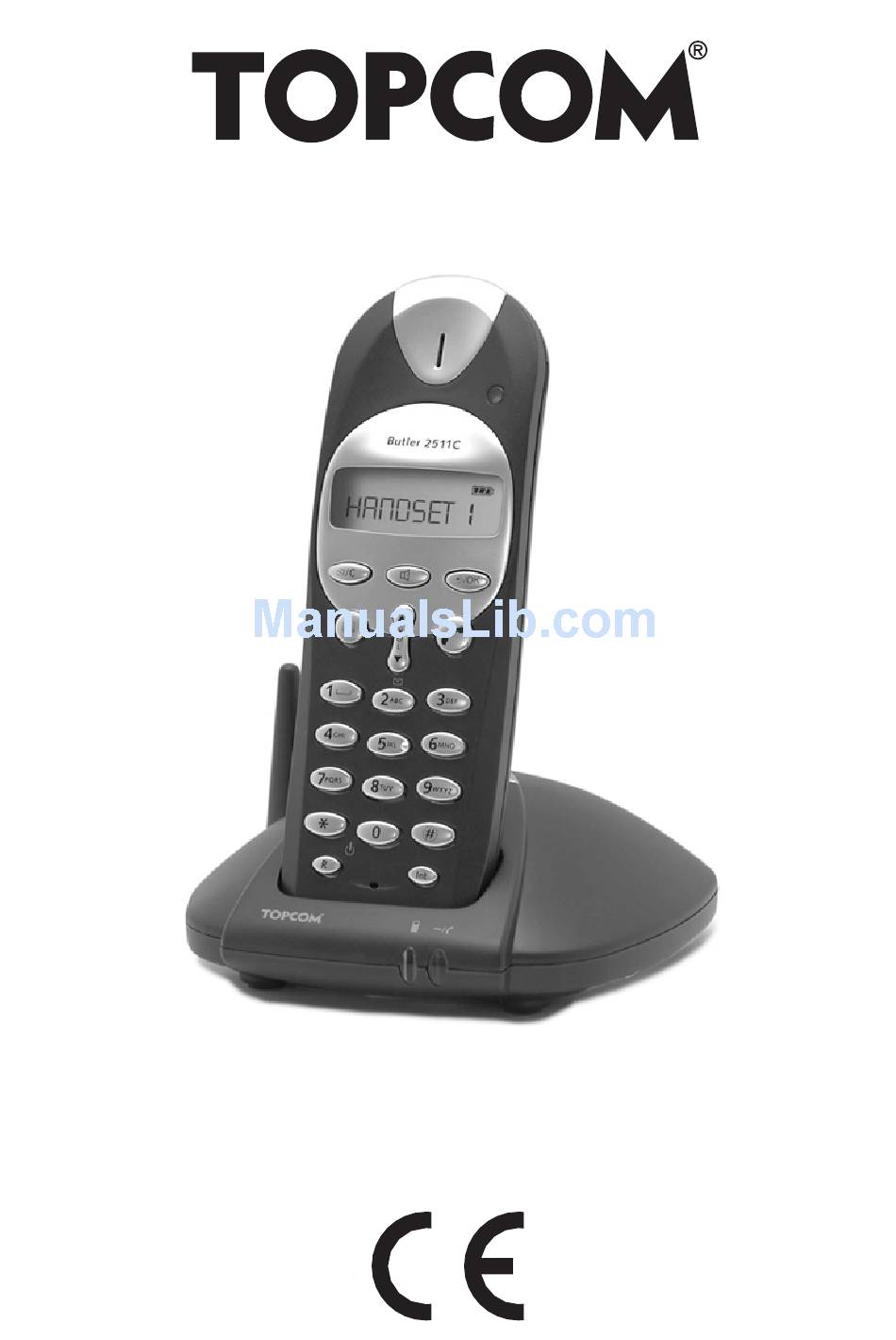

- Page 1 BUTLER 2511 DELUXE USER GUIDE...
- Page 2 This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC. The Declaration of conformity can be found on : http://www.topcom.net/support/cedeclarations.php To be connected to the public analogue telephone network. The CE symbol indicates that the unit complies with the essential requirements of the R&TTE directive.
-
Page 3: Table Of Contents
Topcom Butler 2511 Deluxe DESCRIPTION OF TELEPHONE DISPLAY HANDSET INDICATOR (LED) TELEPHONE INSTALLATION CONNECTIONS RECHARGABLE BATTERIES USING THE TELEPHONE HANDSET ON/OFF RECEIVING A CALL MAKING AN EXTERNAL CALL MAKING AN INTERNAL CALL HANDS FREE MODE INTERNAL CALL TRANSFER CONFERENCE CALL... - Page 4 Topcom Butler 2511 Deluxe MANAGING MULTIPLE HANDSETS SETTING UP AN ADDITIONAL HANDSET REMOVING A HANDSET SETTING UP A HANDSET ON ANOTHER BASE SUBSCRIBING A TOPCOM BUTLER 300 DECT GAP HEADSET SELECTING A BASE TROUBLE SHOOTING GUARANTEE WARRANTY PERIOD WARRANTY HANDLING...
-
Page 5: Description Of Telephone
Topcom Butler 2511 Deluxe 1. DESCRIPTION OF TELEPHONE 1.1 HANDSET AND BASE Earpiece Display Handset indicator LED Mute/Escape key Handsfree Up Key Menu/OK Redial/pause key Phonebook Line-key Down Key Call log Key Paging Key Set-up subscription (press and hold ) -
Page 6: Display
Topcom Butler 2511 Deluxe 1.2 DISPLAY Icon line Character display line. (12 characters maximum) Each operation has an associated icon Icon: Meaning: You are online You are in external communication You are in internal communication You are in 3 way conversation... -
Page 7: Telephone Installation
Telephone cord Power cable 2.2. RECHARGABLE BATTERIES Before you use your Butler 2511 Deluxe for the first time, you must first make sure that the batteries are charged for 6-8 hourse. The telephone will not work optimally if not properly charged. -
Page 8: Using The Telephone
Topcom Butler 2511 Deluxe 3. USING THE TELEPHONE 3.1 HANDSET ON/OFF • Turn ON handset: Press for 2s. The handset will search the base. • Turn OFF handset: Press for 2s. The display will go OFF. 3.2 RECEIVING A CALL When the handset rings, press to answer. -
Page 9: Internal Call Transfer
Topcom Butler 2511 Deluxe 3.6 INTERNAL CALL TRANSFER Only possible when more then one handset are registered to the base!! When you want to transfer an external call to another handset: 1. During a conversation press INT 2. Select the number of the internal handset, the external caller is put on hold. -
Page 10: Redial Memory
Topcom Butler 2511 Deluxe The caller identity is replaced by the call duration after 15 seconds in communication. It is still possible to display the caller’s identity after this time by pressing OK-key repeatedly for the name and number. 3.11.1 List of calls Your telephone keeps a list in memory of the last 20 calls received. -
Page 11: Calling From The Phonebook
Topcom Butler 2511 Deluxe To consult the redial list: 1. Press 2. Scroll through the calls with the up and down arrows. 3. To call by the selected correspondent, simply press when their telephone number or name is displayed. Note: When name is displayed, you can toggle between name and number by pressing the OK key! 3.13 CALLING FROM THE PHONEBOOK... -
Page 12: Using The Menu
Topcom Butler 2511 Deluxe 3.15 USING THE MENU A wide range of telephone functions are accessible through a user friendly menu. 1. To enter the menu, press 2. Scroll through the selections using the up and down keys, the selections scroll in a loop ( you return to the first after the last). -
Page 13: Choosing The Ring Melody
Topcom Butler 2511 Deluxe Note: Every programmation is confirmed at the end by a double or single long beep. A double bleep confirms the validation of your choice A long bleep signifies that the modification has not been taken into account. -
Page 14: Activation / Deactivation Of Beeps
Topcom Butler 2511 Deluxe 4.4 ACTIVATION / DEACTIVATION OF BEEPS The handsets can emit beeptone when a key is pressed, when the batteries are low and when the handset is out of range. 4.4.1 Key pressed beeptone on/off 1. Enter the menu by pressing 2. -
Page 15: Changing The Pin Code
Topcom Butler 2511 Deluxe 4.7 CHANGING THE PIN CODE Certain functions are only available to users who know the PIN code. By default this is PIN code = 0000. To change the PIN code: 1. Enter the menu by pressing 2. -
Page 16: Reset
Topcom Butler 2511 Deluxe 3. Press OK 4. Select Auto ans using the up and down keys 5. Select ON (for automatic answer) or OFF 6. Press OK 4.11 RESET It is possible to return the phone to the original default configuration. This is the configuration which was installed when you first received the telephone. -
Page 17: Searching A Handset From The Base
Topcom Butler 2511 Deluxe 5.1.2 Modify a name or number To modify a number in the phonebook: 1. Enter the menu by pressing 2. Select PHONEBK using the up and down keys 3. Press OK 4. Select MODIFY using the up... -
Page 18: Using Your Telephone With A Pabx
Topcom Butler 2511 Deluxe Setting the priority unit 1. Enter the menu by pressing 2. Select SETUP using the up and down keys 3. Press OK 4. Select priority using the up and down keys 5. Press OK 6. Select “SELECT” using the up... -
Page 19: Managing Multiple Handsets
Topcom Butler 2511 Deluxe Setting the pause duration 1. Enter the menu by pressing 2. Select Setup using the up and down keys 3. Press OK 4. Select PABX using the up and down keys 5. Press OK 6. Select PAUSE using the up... -
Page 20: Removing A Handset
9. Press OK to validate 6.3 SETTING UP A HANDSET ON ANOTHER BASE If you want to use a Butler 2511 Deluxe handset with a base of another model. The base must be GAP compatible. 1. To put the base in registration mode, refer to the base user manual. -
Page 21: Selecting A Base
Topcom Butler 2511 Deluxe 6.5 SELECTING A BASE The handsets can be registered up to 4 bases simultaneously. To select a base: 1. Enter the menu by pressing 2. Select setup using the up and down keys 3. Press OK 4. -
Page 22: Guarantee
8.2. WARRANTY HANDLING A faulty unit needs to be returned to a Topcom service centre including a valid purchase note. If the unit develops a fault during the warranty period, Topcom or its officially appointed service centre will repair any defects caused by material or manufacturing faults free of charge. -
Page 23: Technical Characteristics
Topcom Butler 2511 Deluxe 9. TECHNICAL CHARACTERISTICS • Standard: DECT (Digital Enhanced Cordless Telecommunications) GAP (Generic Access Profile) • Frequency range: 1880 MHZ to 1900 MHz • Number of channels: 120 duplex channels • Modulation: GFSK • Speech coding: 32 kbit/s •... - Page 24 U8006145...
