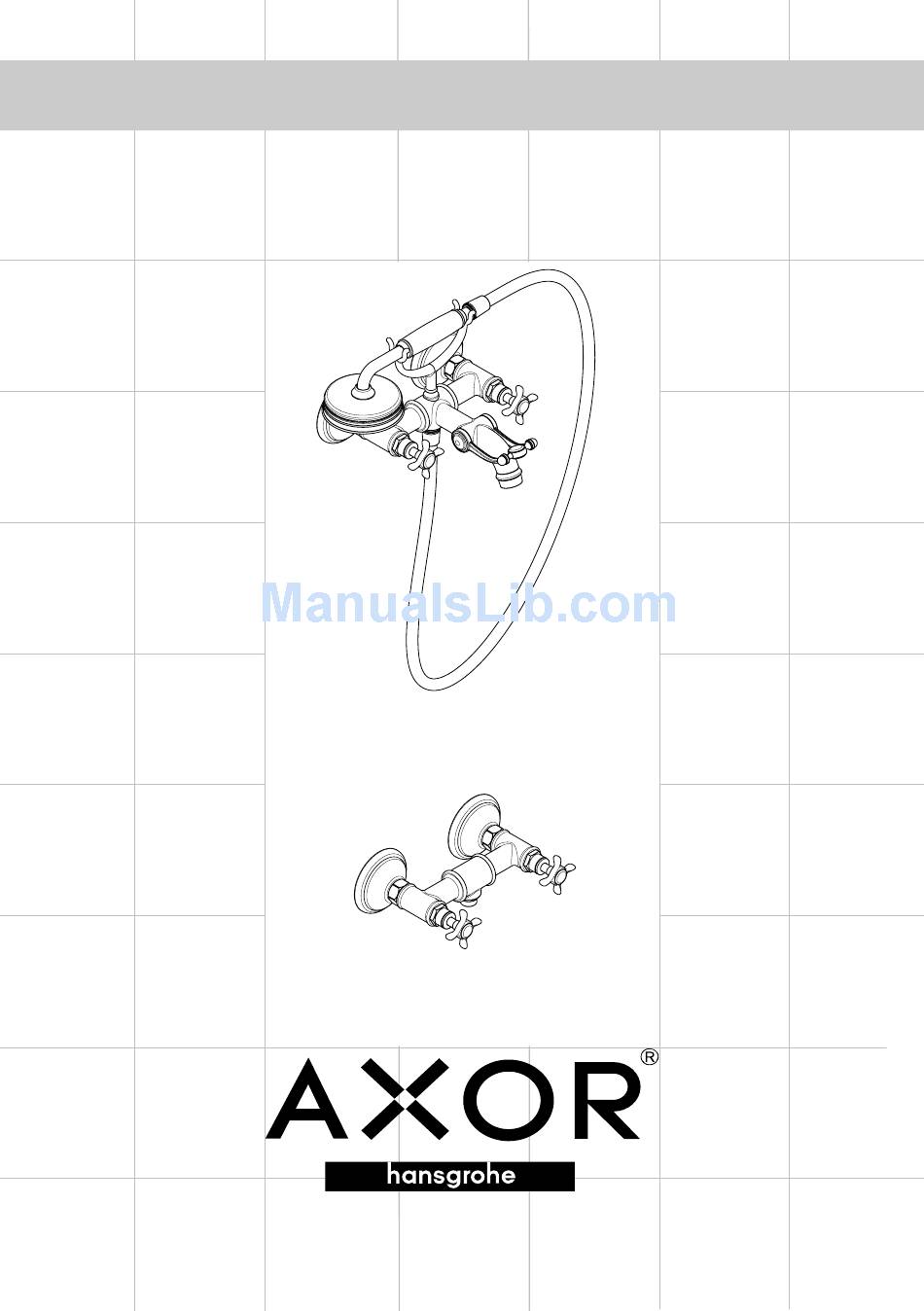

- Page 1 Installation Instructions / Warranty Montreux 16540XX1 Montreux 16560XX1...
- Page 2 Montreux Wall-Mount Tub Filler 16540XX1 Wall-Mount Shower Mixer 16560XX1 16540XX1 16560XX1 Technical Data Operating pressure: max. 145 psi Recommended operating pressure: 14.5 - 72 psi Hot water temperature: max. 176° F* Recommended hot water temperature: 120°F - 140°F* Center distance: 6 3/4“...
- Page 3 Installation During rough-in, install two 1/2” female threaded fittings, recessed 3/16” behind the surface of the finished wall. The fittings should be 6 3/4” apart on center. Flush the hot and cold supplies thoroughly. Wrap the threads on the offset adapters with Teflon thread tape.
-
Page 4: User Instructions
Install the escutcheons. Install the washers and the mixer. Tighten the nuts. Place a hose washer in one end of the hand- shower hose. Screw it to the handshower outlet. Place the other hose washer in the other end of the hose. - Page 5 Push the diverter to the rear to obtain water from the handshower. The check valve should be removed and checked yearly. Replacement Parts 16560XX1...
- Page 6 16540XX1 handle 16597XXX screw cover cold / hot water 97987000 sleeve 97993XXX aerator 98575XXX valve cartridge 94149000 check valve 94074000 diverter assembly 98591000 escutcheon 98595XXX noise reduction 96429000 10 offset adapters 98592001 11 sliding gear lever 98594XXX 12 cover caps 98593XXX 13 shower base 98590XXX...
- Page 7 Cleaning Recommendation for Hansgrohe Products Modern faucetry and shower products utilize a combination of materials to comply with the needs of the market with regard to design and functionality. To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment is not covered under the Hansgrohe warranty.
- Page 8 THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: Conditions, malfunctions or damage not resulting from defects in material or workmanship. Conditions, malfunctions or damage resulting from (1) improper installation, improper maintenance, misuse, abuse, negligence, accident or alteration, or (2) the use of abrasive or caustic cleaning agents or “no rinse” cleaning products, or the use of the product in any manner contrary to the product instructions.
