Asante FriendlyNet FH10T8 User Manual

8-port ethernet hub

Advertisement

Quick Links

FriendlyNet
8-port Ethernet Hub

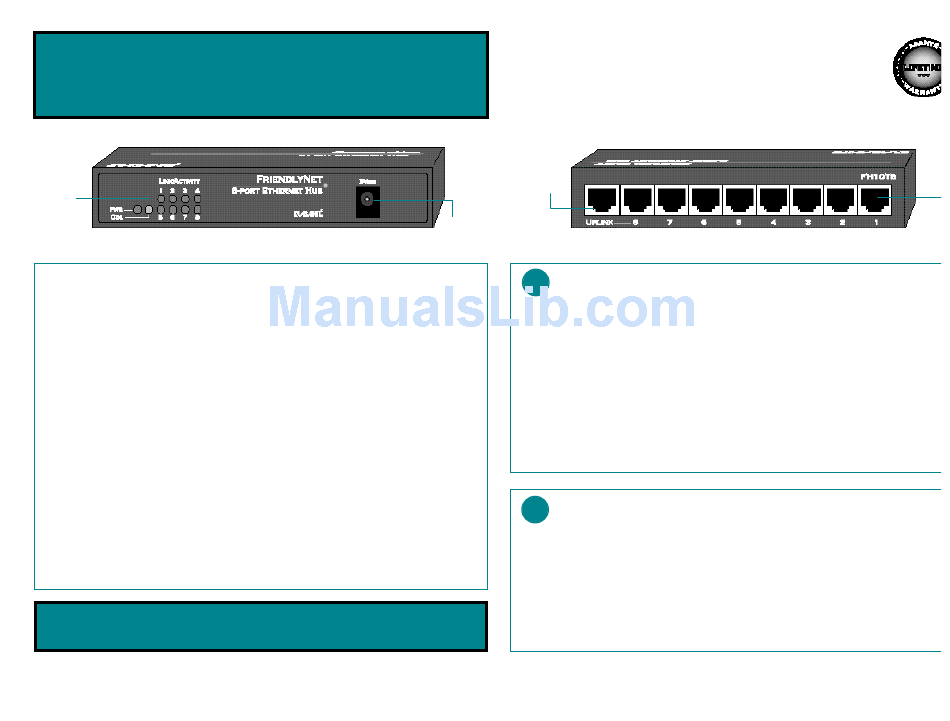

LEDs
Front View
Features
• Eight RJ-45 ports for 10Base-T network connection
• 1 RJ-45 uplink port for hub-to-hub connection (used to expand network)
• Easy accommodation of daisy-chain Ethernet topologies (up to four hubs can
be daisy-chained per Ethernet segment)
• Power, collision, and link/activity LEDs that aid in problem diagnosis and
simple network management
• Constant monitoring of ports for signal quality
• Automatic partitioning of ports that are producing noise or excessive
collisions; automatic reconnection once errors are cleared
• Compact design; can be easily mounted on a wall or countertop
• Plug-and-play installation
Friendly Guide
Hub FH10T8
1 Uplink port
Power
input
Back View
Locate your parts
1
Your package includes:
• Eight-port (FH10T8) FriendlyNet Hub
• External power adapter
• Wall-mount kit (two tapping screws,
two screw anchors)
What you'll need:
• Straight-through twisted-pair network cable less than 100 meters long fo
each station (between the station and hub, including all patch cables and cro
connect wires)

Before you start

2
• Find out what AC power-line voltage is used in your area; make sure your hub
AC/DC power adapter matches this voltage
• The DC output power should be 5 V 800mA
• If you want to mount the hub on a wall, see the section "How to wall mount
the FriendlyNet Hub" on the reverse side of this card
Note:
It's OK to connect or disconnect network cable segments while the
FriendlyNet Hub is plugged in and powered on.
8 RJ-
ports
• Four rubber "feet" (self-adhesive
• Friendly Guide (this card)
• Product registration card
