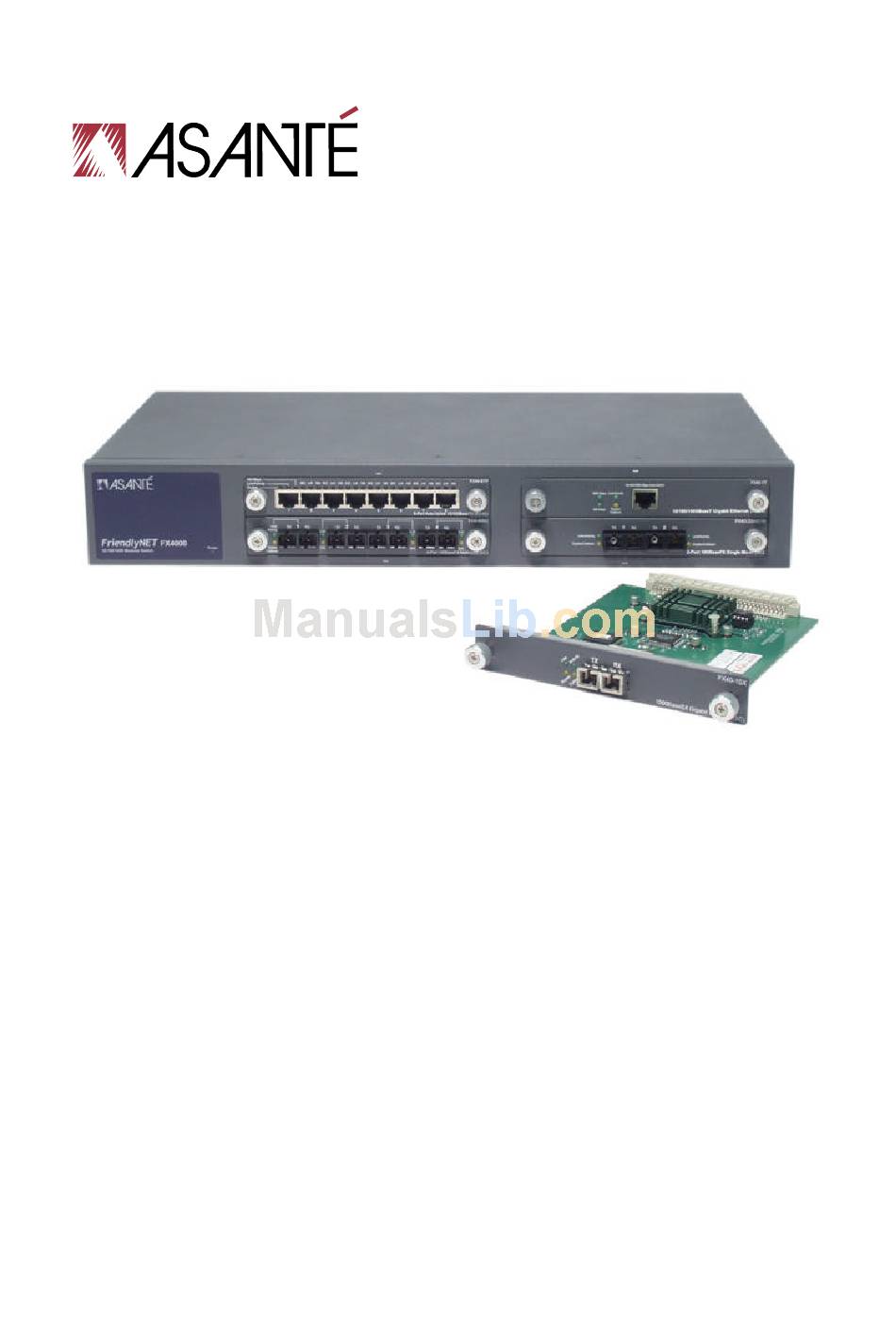

  • Page 1 ™ FriendlyNET FX4000 4-Slot Modular Switch User’s Manual...
  • Page 2 Asanté FriendlyNET FX4000...
  • Page 3: Table Of Contents

    Table of Contents Chapter 1. Introduction Key Features Package Contents Chapter 2. Product Overview Front Panel Optional Modules FX40-8TP Module FX40-2SMC15 Fiber Module FX40-4MMC Fiber Module FX40-1SX and FX40-1LX Gigabit Fiber Modules FX40-1T Gigabit Module Installing the FX40 Optional Modules Chapter 3.
  • Page 4 Asanté FriendlyNET FX4000...
  • Page 5: Chapter 1. Introduction

    Every optional module has it’s own 12K entry MAC address table to store source addresses. The backplane of the FX4000 can reach up to 9.6 Gbps, greatly improving network performance. The FX4000 switch, with 4 optional modular slots, can accept many different media module combinations, allowing you great flexibility in configuring your network.
  • Page 6 Asanté FriendlyNET FX4000...
  • Page 7: Chapter 2. Product Overview

    Installing Optional Modules The FX4000 is a modular switch with four slots for optional modules. The LEDs are located on the front panels of the switch and modules to allow you to monitor the operation and performance at a glance.
  • Page 8: Fx40-8Tp Module

    (full duplex is the default). The following table lists the ports’ operating modes based on the DIP switch position. Port 1 Half Duplex Full Duplex Port 2 Half Duplex Full Duplex Asanté FriendlyNET FX4000...
  • Page 9: Fx40-4Mmc Fiber Module

    FX40-4MMC Fiber Module When installed into a switch, this module provides 4 x 100 Mbps Fast Ethernet fiber ports that can be used to connect the switch to the network backbone, a 100 Mbps server or end station. A SC connector provides the link to the multi mode fiber cabling, and there are 2 LEDs to indicate following status: Link/Activity and Full Duplex.
  • Page 10: Fx40-1T Gigabit Module

    Do not touch any of the components on the module other than the DIP switch, if applicable. Touch the module only by its edges and front panel. Always wear anti-static wristband connected to a suitable grounding point. Always store or transport the module(s) in the appropriate anti-static packaging. Asanté FriendlyNET FX4000...
  • Page 11: Chapter 3. Installation

    Chapter 3. Installation This chapter describes the basic installation of the switch. Mounting the Switch The switch is suitable for use in an office environment where it can be rack mounted in standard EIA 19-inch racks or it can stand alone. Desktop Installation Set the switch on a sufficiently large, flat space with a power outlet nearby.
  • Page 12: Connecting The Switch

    The 100BaseTX Fast Ethernet and 1000BaseT cable is tested Category 5 or better UTP cabling. The 100BaseFX fiber cable is 62.5/125 micron multimode fiber, or 9/125 micron single mode fiber. The 1000BaseSX/LX fiber cable is 50/125, 62.5/125 micron multimode or 9/125 micron single mode fiber. Asanté FriendlyNET FX4000...
  • Page 13: Appendix A. Specifications

    Appendix A. Specifications The table below lists the specifications of the FriendlyNET FX4000 and the FX40 modules. Standards Compliance Power Temperature Humidity Switch Dimensions Data Buffer Address Table Technology Connectors Transfer Rates LED Indicators EMI & Safety Limited Warranty 802.3 10BaseT 802.3u 100BaseTX/FX...
  • Page 14 Asanté FriendlyNET FX4000...
  • Page 15: Appendix B. Fcc And Warranty Statements

    Appendix B. FCC and Warranty Statements FCC Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 16 Asanté Technologies, Inc. Asanté is a registered trademark and the Asanté logo and FriendlyNET are trademarks of Asanté Technologies, Inc. All other brand names or product names are trademarks or registered trademarks of their respective holders. All features and specifications are subject to change without prior notice. 06-00643-00 Rev. A Asanté FriendlyNET FX4000...
