Asante FriendlyNet FH208P User Manual

Asante FriendlyNet FH208P User Manual

8-port dual-speed fast ethernet hub

Advertisement

Quick Links

8-port Dual-speed Fast Ethernet Hub

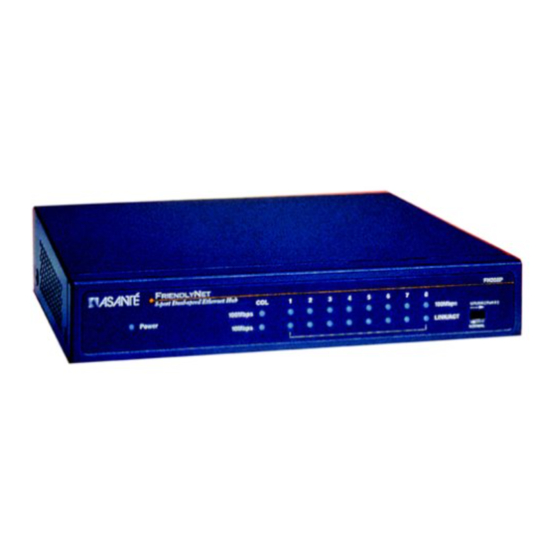

Asanté's FriendlyNet FH208P 8-port Dual-speed Ethernet Hub offers a cost-effective solution to today's
growing need for network speed integration. With eight 10/100Mbps plug-and-play dual speed ports
equipped in its compact size, it is possible to achieve the coexistence of 10Mbps and 100Mbps devices in
a single network now and move to a 100Mbps network in the future. Further, the FH208P is furnished with
an internal switch function, which combines both dual speed features and network segmentation functions
together to progress to a higher level of network flexibility and efficiency. Other key features include:
Compliant with IEEE802.3 & 802.3u Class I and II Repeater specifications
10Base-T/100Base-TX N-WAY automatic speed detection
Compact size
One Uplink switch to support uplink function
Two ports (#7 & #8) allow manual speed setting by DIP switches
PACKAGE CONTENTS
The package should include the following items:
One FriendlyNet FH208P 8-port Dual-speed Ethernet Hub
One power adapter
One power cord
One mail-in registration card
One User's Guide
FriendlyNet FH208P
User's Guide

1 PRODUCT INTRODUCTION

If any item is missing, please contact your dealer immediately.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FriendlyNet FH208P and is the answer not in the manual?

Questions and answers

Summary of Contents for Asante FriendlyNet FH208P

  • Page 1: Product Introduction

    User’s Guide 1 PRODUCT INTRODUCTION Asanté’s FriendlyNet FH208P 8-port Dual-speed Ethernet Hub offers a cost-effective solution to today’s growing need for network speed integration. With eight 10/100Mbps plug-and-play dual speed ports equipped in its compact size, it is possible to achieve the coexistence of 10Mbps and 100Mbps devices in a single network now and move to a 100Mbps network in the future.
  • Page 2 HARDWARE DESCRIPTION The Front Panel The LED indicators help to monitor the working status of the hub and overall network situation. An uplink switch is located beside port #8 LED for uplink control. Collision LED 100Mbps Speed-detection LED for 100Mbps FH208P RIENDLY 8-port Dual-speed Ethernet Hub...
  • Page 3 DIP Switches Port #8 Port #7 Port Port SPEED SETTING DIP SWITCH 1 DIP SWITCH 2 DIP SWITCH 3 DIP SWITCH 4 1 2 3 4 Auto-negotiation up = on up = on up = on up = on Auto-negotiation down = off down = off down = off...
  • Page 4: Product Specifications

    APPLICATION The FriendlyNet FH208P can be deployed where 10Mbps and 100Mbps network devices coexist and need to be integrated. The diagram below illustrates one sample application: 100Mbps 10Mbps 100Mbps 10Mbps 100Mbps 10Mbps 100Mbps 10Mbps workstation workstation workstation workstation workstation workstation...
