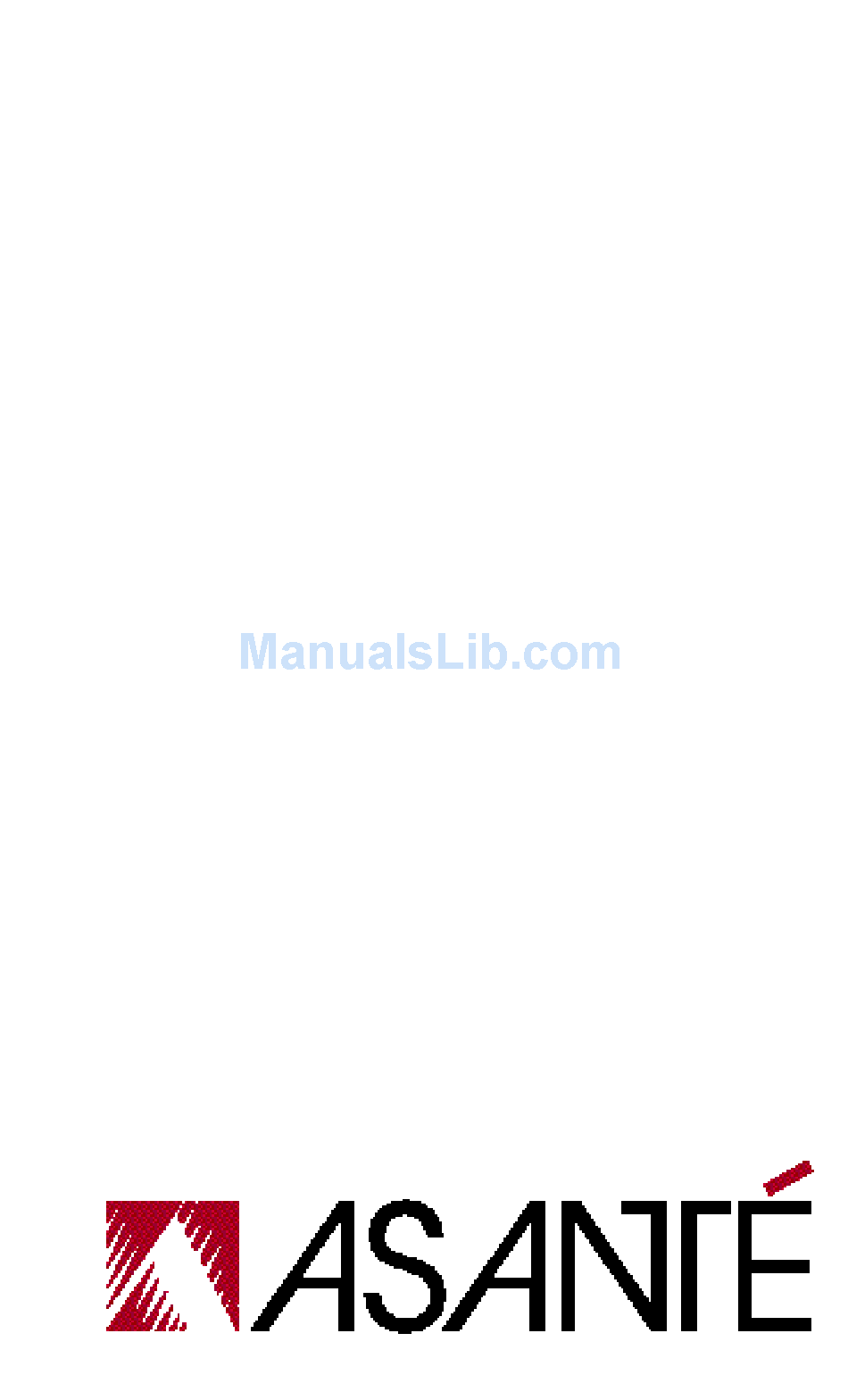

- Page 1 AsantéFAST 100 TX Managed Hub User’s Manual...
- Page 2 AsantéFAST 100 TX Managed Hub User’s Manual Asanté Technologies, Inc. 821 Fox Lane San Jose, CA 95131 February 1997...
-
Page 3: Copyright Notice
Warranty This AsantéFAST 100 TX Managed Hub has a limited lifetime warranty which applies to the original purchaser of the product. Asanté Technologies, Inc. warrants that this product will be free from defects in title, materi- als and manufacturing workmanship. -
Page 4: Table Of Contents
Introduction ........1-1 The AsantéFAST 100 TX Managed Hub ..........1-1 Management Capabilities ...............1-1... - Page 5 Statistics Menu ..................2-18 Display Segment Counters........... 2-18 Display Group Counters ............2-20 Display Port Counters............2-22 Technical Specifications ......A-1 Technical Support .
-
Page 6: Introduction
Protocol) support. The AsantéFAST 100 TX Managed Hub can function as a stand-alone intelli- gent hub or it can be stacked with up to 13 AsantéFAST 100 TX Hubs, pro- viding management capabilities to all attached hubs. Figure 1-1 AsantéFAST 100 TX Managed Hub front panel... -
Page 7: About This Manual
Introduction About This Manual This manual provides detailed information on the AsantéFAST 100 TX Man- aged Hub’s SNMP management capabilities; it describes the commands that are available and provides instructions on using the Command Line Interface. Important: Please refer to the FAST Guide included... -
Page 8: Command Line Interface
Command Line Interface The AsantéFAST 100 TX Managed Hub monitors a network’s performance, collisions, traffic, and other vital signs, and allows you to manage the infor- mation using its own built-in Command Line Interface. This chapter contains reference information on how to connect to the Command Line Interface, as well as information on its Main Menu and sub- menus. - Page 9 Out-of-Band Management To access the Command Line Interface using out-of-band management: Connect a stand-alone (“dumb”) terminal directly to the Man- aged Hub’s console port (located on the module’s front panel) using a straight-thr ough serial cable. See Figure 2-1. Connect a modem to the Managed Hub’s RS-232 port on the front panel using a straight-thr ough serial cable for con- nection.
-
Page 10: Using The Command Line Interface
. The AsantéFAST 100 TX Managed Hub is assigned two group numbers; the management portion of the hub is assigned Group 15 and the 12-port hub portion is assigned Group 14. -
Page 11: Accessing A Submenu
General Information Screen From the Main Menu, you can access three submenus: General Informa- tion, Configuration, and Statistics. If you are using Telnet, a fourth option will be available — Close Connec- tion. This option closes your remote connection to the Managed Hub’s Command Line Interface. -
Page 12: General Information
AsantéFAST 100 TX Managed Hub User’s Manual General Information The General Information screen displays current statistics on the Managed Hub such as system administration information, hub IP addresses, subnet mask and default router information, hub boot information, and out-of- band parameters information. -
Page 13: Configuration
Type your password at the “Enter Password” prompt, then press r etur n . The default password when you first access the Configura- tion menu is Asante. The password is case sensitive. For more information on passwords, see “Set Console Pass- word” on page 2-16. -
Page 14: Configure System Administration Information
AsantéFAST 100 TX Managed Hub User’s Manual Configuration Submenus The following section contains descriptions of all the submenus located within the Configuration Menu. Configure System Administration Information This menu displays and allows you to change the hub stack’s name, loca- tion and contact information. -
Page 15: Configure Out-Of-Band Parameters
Configuration Menu Configure Out-Of-Band Parameters This menu displays and allows you to change the out-of-band parameters used when accessing the Managed Hub remotely. To access the Out-Of-Band Parameter menu, type o from the Configuration Menu. The following screen appears: Figure 2-7 Out-Of-Band Parameter menu To change the Out-of-Band Baud Rate, type the command letter of the corresponding baud rate menu option (e.g., type a to set the baud rate to 1200;... -
Page 16: Configure Bootstrap Parameters
AsantéFAST 100 TX Managed Hub User’s Manual By default, each TCP/IP parameter is set to 0.0.0.0. To change a parameter: Type the command letter of the corresponding menu option. Type the new address when prompted. Press r etur n . -
Page 17: Configure Snmp Parameters
Configuration Menu Initiate downloading from AsantéView (default setting) On the AsantéView machine, select Confi gur e , then Soft- ware Upgrade. Make sure you also turn on the BootP and TFTP application in AsantéView. On the Managed Hub, make sure the boot load mode is set to Local. - Page 18 AsantéFAST 100 TX Managed Hub User’s Manual Figure 2-10 SNMP Parameter menu SNMP Read and Write Community By default, the SNMP Read Community is set to PUBLIC. To change the Read Community: Type r from the SNMP Parameter menu. Type a new community at the prompt.
-
Page 19: Configure Port Parameters
Configuration Menu SNMP Trap Receiver This option sets the receiving station address for SNMP traps. Normally, these addresses will be the same as your network management software systems’ IP addresses. To add an SNMP Trap Receiver address: Type a from the SNMP Parameter menu. Type an IP address at the prompt. - Page 20 AsantéFAST 100 TX Managed Hub User’s Manual The Port Parameter menu displays port information for one port on one hub at a time. The hub you are viewing is listed by its group number in the upper right corner of the screen. The port you are viewing is listed by its port number in the upper right corner of the screen.
-
Page 21: Node Summary Display Menu
Configuration Menu Node Summary Display Menu This menu displays the last MAC addresses, last IP addresses and link status for a group of ports on a hub. To access the Node Summary Display menu, type n from the Configuration Menu. The following menu appears: Figure 2-12 Node Summary Display menu The Node Summary Display menu displays information for six ports on a... -
Page 22: Set Telnet Idle Time Out
AsantéFAST 100 TX Managed Hub User’s Manual The IP address mapping feature must be enabled in order for the last IP addresses to be displayed. If the mapping feature is disabled, the IP Address column will display xxx.xxx.xxx.xxx instead of the IP address(es). -
Page 23: Set Console Password
Configuration Menu Set Console Password The console password is the password needed to access the Configuration Menu. By default, the password is Asante. To change the current console password: Type c from the Configuration Menu. The following command line appears at the bottom of the Configuration Menu:... -
Page 24: Reset System
AsantéFAST 100 TX Managed Hub User’s Manual Reset System This option performs a “warm” reboot of the Managed Hub. To reset the Managed Hub, type r from the Configuration Menu. The fol- lowing command line appears at the bottom of the screen:... -
Page 25: Statistics Menu
Statistics Menu Statistics Menu The Statistics Menu monitors and displays current network information such as traffic, collisions, good frames, bad frames, and FCS errors on a per-stack, per-hub, per-port basis. To access the Statistics Menu, type s from the Main Menu. The following screen appears: Figure 2-17 Statistics Menu... - Page 26 AsantéFAST 100 TX Managed Hub User’s Manual Figure 2-18 Segment Counters screen Counter Names The Segment Counters screen displays the number of occurrences for each counter in the hub stack. For a definition and description of each counter name, please refer to the Standard Repeater RFC 1516 — “Defini- tions of Manager Objects for IEEE 802-3 Repeater Device.”...
-
Page 27: Display Group Counters
Statistics Menu Resetting the Segment Counters screen To reset the Segment Counters screen (resets the elapsed time clock to 00:00:00), type r. To stop the monitoring of the Segment Counters and freeze the screen with the current totals, type s. To exit the Display Segment Counters screen, type q. - Page 28 AsantéFAST 100 TX Managed Hub User’s Manual Monitoring a Group Each module in the interconnected hub stack is assigned a Group number. The Managed Hub is assigned two group numbers (15 and 14), the next module up is Group 13, and so on. When using the Command Line Inter- face to monitor a hub stack, each module is referred to by that group num- ber.
-
Page 29: Display Port Counters
Statistics Menu To stop monitoring the Group Counters and freeze the screen with the current totals, type s. To exit the Display Group Counters menu, type q. Display Port Counters This screen monitors and displays statistics for individual ports on a hub within the hub stack. - Page 30 AsantéFAST 100 TX Managed Hub User’s Manual To go directly to another port, type d (direct to), then enter the port number and press r etur n . Each port’s counters are monitored in four columns: Current/per second, Peak/per second, Average/per second, and Total.
-
Page 31: Technical Specifications
Technical Specifications CONFIGURATION The AsantéFAST 100 TX Managed Hub can be used as a stand-alone man- aged hub or it can snap into a stack of AsantéFAST 100 hubs. Maximum stack height is 14 units including the Managed Hub. NETWORK MANAGEMENT PLATFORMS SUPPORTED Telnet, IntraSpection and AsantéView management software, SNMP-com-... - Page 32 Technical Specifications INCLUDED ACCESSORIES 19-inch rack mount brackets, expansion card. STANDARDS COMPLIANCE UL, CSA, TUV, FCC Class A, CE Class B. SUPPORT Lifetime warranty Free technical support World Wide Web site Commercial On-line BBS Page A-2...
-
Page 33: Technical Support
Fax-Back (800) 741-8607 (408) 954-8607 Bulletin Board Service (BBS) (408) 432-1416 ARA BBS (guest log in) (408) 894-0765 AppleLink mail/BBS ASANTE FTP Archive ftp.asante.com Internet Mail support@asante.com WorldWide Web Site http://www.asante.com Technical Support Hours 6:00 AM to 5:00 PM Pacific Standard Time USA, Monday - Friday. -
Page 34: Index
Index community strings read 2-11 accessories A-2 write 2-11 AsantéFAST 100 TX Hub 1-1 compliance, standards A-2 AsantéView 1-1 Configuration menu 2-6 configuration specification A-1 console bargraphs A-1 password 2-16 boot 2-5, 2-9 port specifications A-1 file name contact information... - Page 35 management (continued) out-of-band 2-1 help. See technical support accessing 2-2 hubs parameters, configuring 2-8 compatible with Managed Hub 1-1 password, configuring 2-16 stacking 1-1 platforms, supported A-1 humidity, relative range A-1 scenarios 2-2 statistics 2-18 group 2-20 ID/MAC address, viewing 2-5 port 2-22 idle time out, Telnet 2-15 segment 2-18...
- Page 36 out-of-band software accessing 2-2 upgrading 2-9 management 2-1 specifications parameters accessories A-2 configuring 2-8 configuration A-1 viewing 2-5 connectors A-1 overview, of Managed Hub 1-1 dimensions A-1 environmental operating range A-1 LEDs A-1 network management platforms password supported A-1 configuring 2-16 standard compliance A-2 default 2-6, 2-16 weight A-1...
- Page 37 time clock (continued) port counters 2-23 segment counters 2-19 trap authentication traps 2-11 receivers 2-12 weight A-1 write community 2-11 Index iv...
- Page 38 ECHNOLOGIES EADQUARTERS Phone: 408.435.8388, 800.662.9686 * Fax: 408.432.7511 e-mail address: sales@asante.com * World Wide Web site: http://www.asante.com Asanté Technologies Asia T: 886 25162636, F: 886 25171999 Asanté Technologies Europe T: 441 81 332 1326, F: 441 81 332 1334. ©1997 Asanté Technologies, Inc., Asanté is a trademark of Asanté Technologies, Inc. All brand names and products are trademarks...
