Asante FriendlyNET FS5005 Quick Installation Manual

FriendlyNET
™
Introduction
Thank you for purchasing an Asanté FriendlyNET Fast Ethernet switch.This switch
is designed to be the most powerful way to start or expand your small business or
Plug-and-Play Networking Solutions
home office network.
Compatible with all industry-standard 100BaseTX/10BaseT network adapters,
switches,hubs and routers
Easiest to install—connect power,network cables and be running in three
minutes (or less)
Quickly monitor your network with multi-colored LED indicators
Free telephone technical support when used with Mac OS,Linux,
Quick Installation Guide Windows 95/98/NT and Windows 2000 Professional/Server
This product is available in two configurations:
10/100 Fast Ethernet Switches
FriendlyNET 5-port 10/100 Mbps Fast Ethernet switch (FS5005)
FriendlyNET 8-port 10/100 Mbps Fast Ethernet switch (FS5008)
Packing List
Your package contains the following items:
(1) FriendlyNET 10/100 Fast Ethernet switch
(1) Quick Installation Guide (this document)
(1) External power module
System Requirements
Compatible with Apple Mac OS,Linux,Microsoft Windows 95/98/NT and
Windows 2000 Professional/Server.
Requires a 10/100 Fast Ethernet adapter for each workstation,server or
printer.Also interoperates with 10BaseT Ethernet adapters in 10 Mbps mode.
M a k i n g N e t wo r k i n g S i m p l e

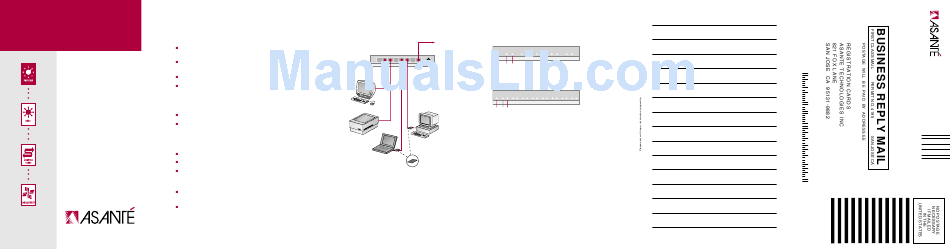

Installation
Here's how to install this network switch:
In a few moments,you'll see the status of your network with these LED indicators:
To existing
hub or switch.

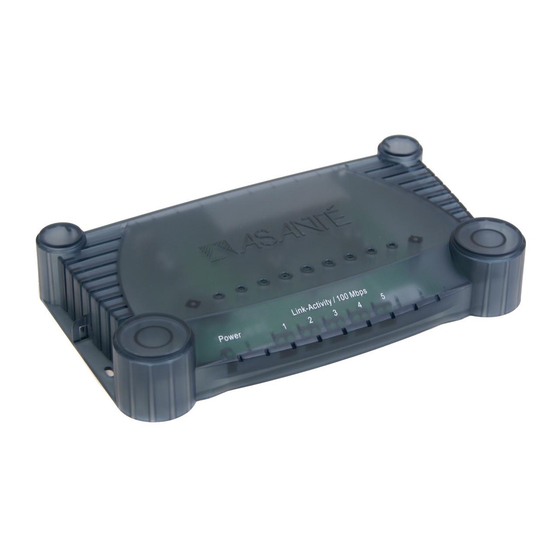

FriendlyNET 5-Port 10/100 Ethernet Switch
FriendlyNET
3
10/100 Ethernet Switch Power 1
4
A B C
FriendlyNET 8-Port 10/100 Ethernet Switch
Power 1
Mac 2
A B C
A. Power:Green LED on when power is ON.
Printer
PC
B. Link-Activity:Green LED is on when there is a valid network link to the
network adapter.It flashes during network activity (transmit or receive).
FriendlyNET 10/100
Ethernet Adapters
C. 100 Mbps:Green LED is on for 100 Mbps.It's off for 10 Mbps.
Laptop
1
1. Connect 100BaseTX or 10BaseT network cable from this switch to your
computer' s 10/100 Fast Ethernet port.If your computer does not have an
Fast Ethernet port,you'll need to install a 10/100 Fast Ethernet network
adapter (available separately) into your computer.
2. (Optional) Connect a network cable from this hub's port 1 to any standard
(non-uplink) port on another 10/100 switch or router.Set the switch on this
hub from Normal to Uplink.
3. Plug the power cord into this hub and plug the external power module into
an electrical outlet.
Name
Title
2 3 4 5
Company
Address 1
Address 2
2 3 4 5 6 7 8
City
State
Zip/Postal
Country
Phone
Fax
Email
Date of purchase
Asanté Part Number
Product Serial Number
