Summary of Contents for One Stop Systems OSS-PCIe-HIB2-EC-x1

  • Page 1: User Manual

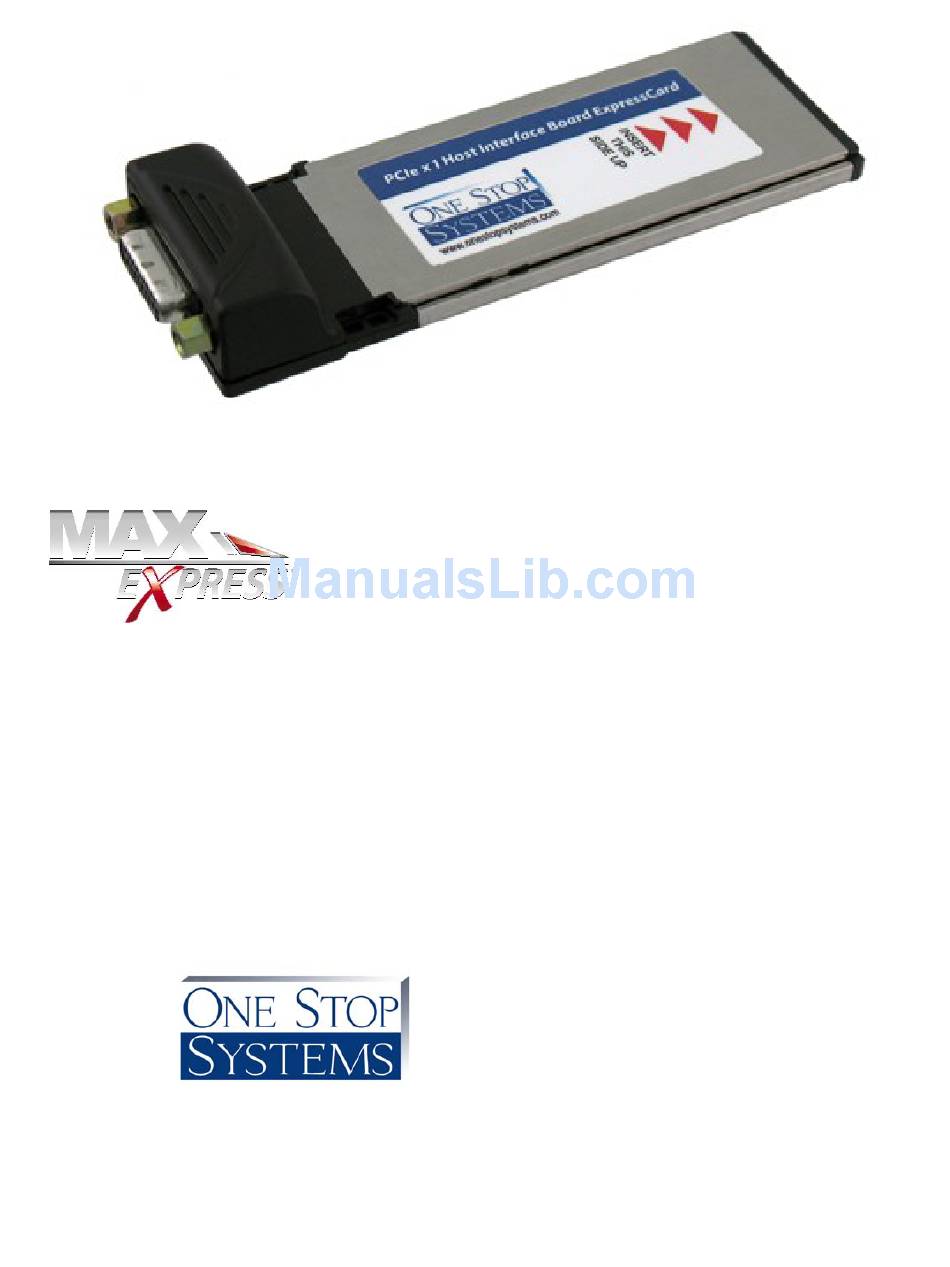

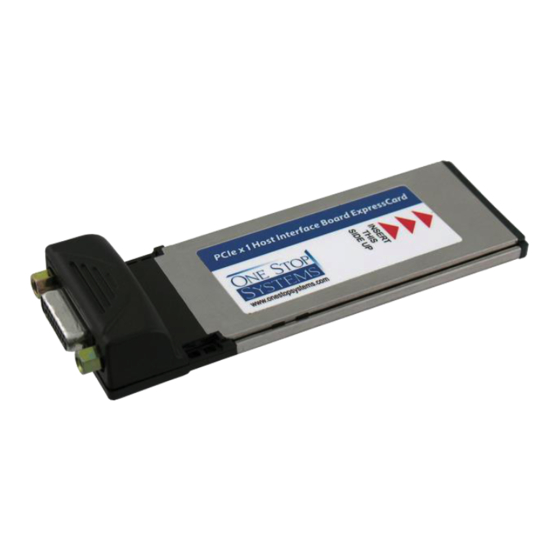

    ExpressCard x1 Cable Adapter User Manual OSS-PCIe-HIB2-EC-x1 2235 Enterprise Street, Suite 110 Escondido, CA 92029 Phone: (760) 745-9883 Fax: (760) 745-9824 www.onestopsystems.com One Stop Systems, Inc. ExpressCard x1 Cable Adapter Manual Rev. A...
  • Page 2: Unpacking Instructions

    Inspect the equipment for shipping damage. Save all packing material for storage or return shipment of the equipment. For repairs or replacement of equipment damaged during shipment, contact One Stop Systems, Inc. to obtain a Return Materials Authorization (RMA) number and further shipping instructions.
  • Page 3 ELB of the second enclosure. Removing your ExpressCard cable adapter: Loosen the jackscrews and remove the cable. Remove the ExpressCard Cable Adapter from the slot. One Stop Systems, Inc. ExpressCard x1 Cable Adapter Manual Rev. A...
  • Page 4: Specifications

    Vibration: 5-17 Hz 0.5” double amplitude displacement; 7-2000Hz, 1.5g acceleration. Redriver Pericom PIEQX4401 Agency Compliance Designed to meet, but not tested UL60950, FCC Class B, CE safety and emissions One Stop Systems, Inc. ExpressCard x1 Cable Adapter Manual Rev. A...
  • Page 5: Block Diagram

    0.59 0.197 Block Diagram LVPECL Clock Clock Clock Buffer PCIe x1 PCIe x1 PCIe Signal Redriver +3.3v CPRSNT# Bi-color LED Cable Present/ Pwr PCIe Downstream ExpressCard Cable Connector Connector One Stop Systems, Inc. ExpressCard x1 Cable Adapter Manual Rev. A...
  • Page 6 ExpressCard Connector (P1) Pin Assignments Pin # Signal Name Direction WAKE# Output +3.3VAUX PERST# Input +3.3V +3.3V CLKREQ# Output REFCLK- Input REFCLK+ Input PER0- Input/Output PER0+ Input/Output PET0- Input/Output PET0+ Input/Output One Stop Systems, Inc. ExpressCard x1 Cable Adapter Manual Rev. A...
  • Page 7 Row B, Pin 9 Row A, Pin 1 PCIe x1 Connector Pin Assignments Row A Row B Signal Name Signal Name PER0+ PER0- CWAKE# CPRSNT# CREFCLK- CREFCLK+ 3.3V CPWRON CPRSET# PET0- PET0+ One Stop Systems, Inc. ExpressCard x1 Cable Adapter Manual Rev. A...
  • Page 8: Limited Warranty

    One Stop Systems will, at its option, repair or replace this product at no additional charge to the purchaser, if the defect is related to the One Stop Systems manufactured product, such as a power supply, backplane, other chassis components or CPUs. One Stop Systems is not liable for any defects in material or workmanship of any peripherals, products or parts, which One Stop Systems does not design or manufacture.
