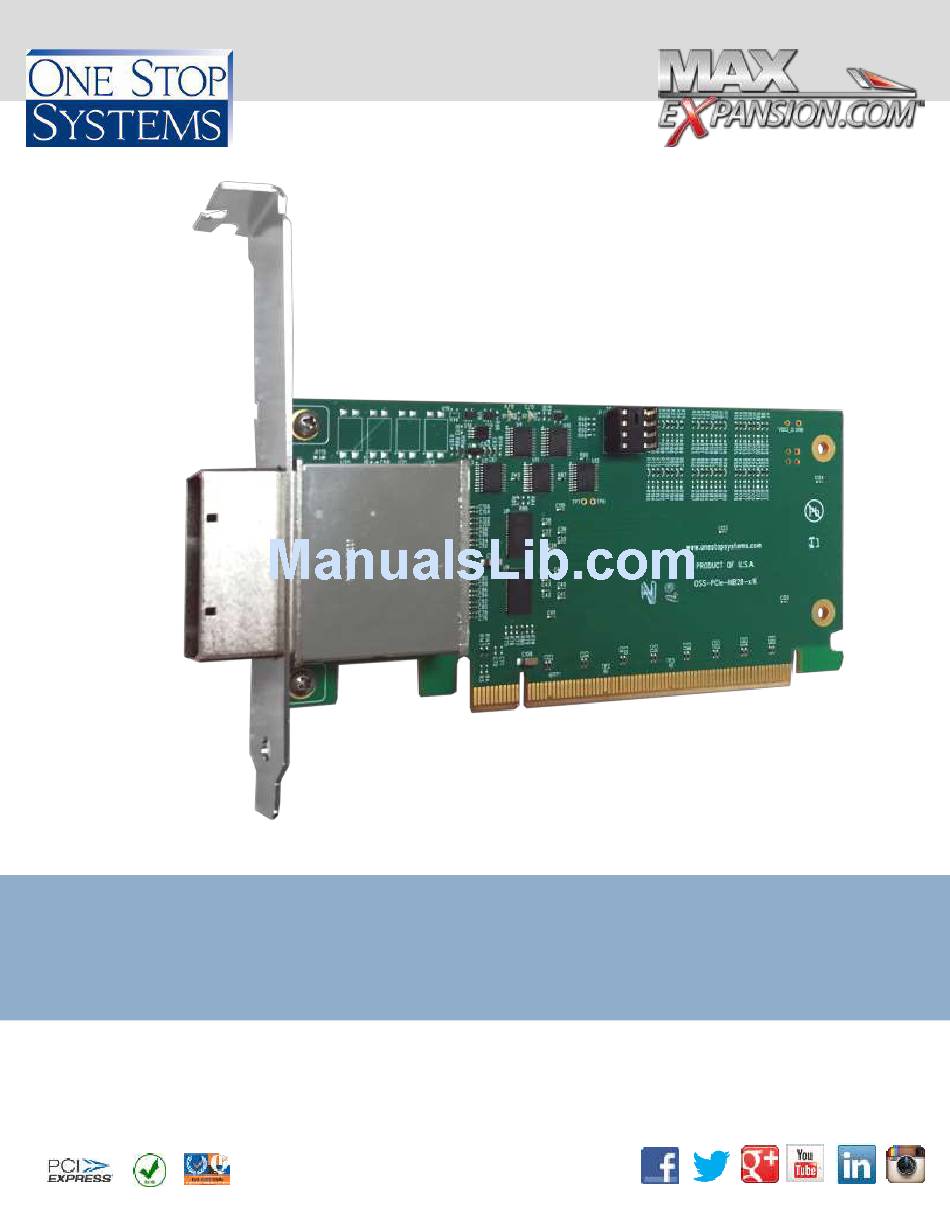

- Page 1 User Manual, PCIe x16 GEN 3 Cable Adapter OSS-PCIe-HIB28-x16-H (Host) OSS-PCIe-HIB28-x16-T (Target)
-
Page 2: Table Of Contents
2.b. Installing the host cable adapter ......................5 2.c. Removing the host cable adapter ......................6 2.d. When using with any third party I/O device ................... 6 3. Ordering Information 4. Appendix One Stop Systems OSS-PCIe-HIB25-x16-H/T Specifications subject to change without notice Page 2... -
Page 3: Overview
1. Overview 2.a. Host cable adapter The host adapter is installed into the host computer’s PCIe x16 slot. The host cable adapter (Part # OSS-PCIe-HIB28-x16-H) allows communication between a processor and an I/O point. Slot Cover (Also available in low profile... -
Page 4: Specifications
CPRSNT# LEDs Cable Present/ Pwr Upstream Downstream LEDs X16 PCI Express PCIe lane status X16 PCI Express Card Edge Connector Cable Connector *Clock direction shown in Host configuration One Stop Systems OSS-PCIe-HIB25-x16-H/T Specifications subject to change without notice Page 4... -
Page 5: Initial Set-Up
The connectors on either end of the PCIe x16 cable are identical. Each connector is equipped with a retractor to allow the connector to be locked into place. One Stop Systems OSS-PCIe-HIB25-x16-H/T Specifications subject to change without notice... -
Page 6: Removing The Host Cable Adapter
Connect the external power source (separate from the host system power supply) to the downstream device if necessary. Connect the PCIe cable to both the upstream host adapter and the downstream device. One Stop Systems OSS-PCIe-HIB25-x16-H/T Specifications subject to change without notice... -
Page 7: Ordering Information
3. Ordering Information OSS - PCIe-HIB28-x16 - H - One Stop Systems HIB25x16 host cable adapter. OSS - PCIe-HIB28-x16 - T - One Stop Systems HIB25x16 host cable adapter. One Stop Systems OSS-PCIe-HIB25-x16-H/T Specifications subject to change without notice Page 7... -
Page 8: Appendix
Lane 1 Ground PERp1 Receiver differential pair, Lane 1 Ground PERn1 PETp2 Ground Transmitter differential pair, PETn2 Ground Lane 2 Ground PERp2 Receiver differential pair, Lane 2 Ground PERn2 One Stop Systems OSS-PCIe-HIB25-x16-H/T Specifications subject to change without notice Page 8... - Page 9 Side Rail Groove Length 27.60 ±0.10 Snout Thickness 9.99 +0.15/-0.05 Thickness Top Forward Edge of Plug 0.80 ±0.05 Top of Rail Groove to Top of Tongue 6.83 +0.15/-0.05 One Stop Systems OSS-PCIe-HIB25-x16-H/T Specifications subject to change without notice Page 9...
- Page 10 PoWeR: Provides local power for in-cable redriver circuits. Only needed on long cables. Power does not go across the cable.) PWR_RTN PoWeR ReTurN: Provides local power return path for PWR pins. CWAKE# Cable WAKE CPERST# Cable PCI Express Reset One Stop Systems OSS-PCIe-HIB25-x16-H/T Specifications subject to change without notice Page 10...
