User Manual,

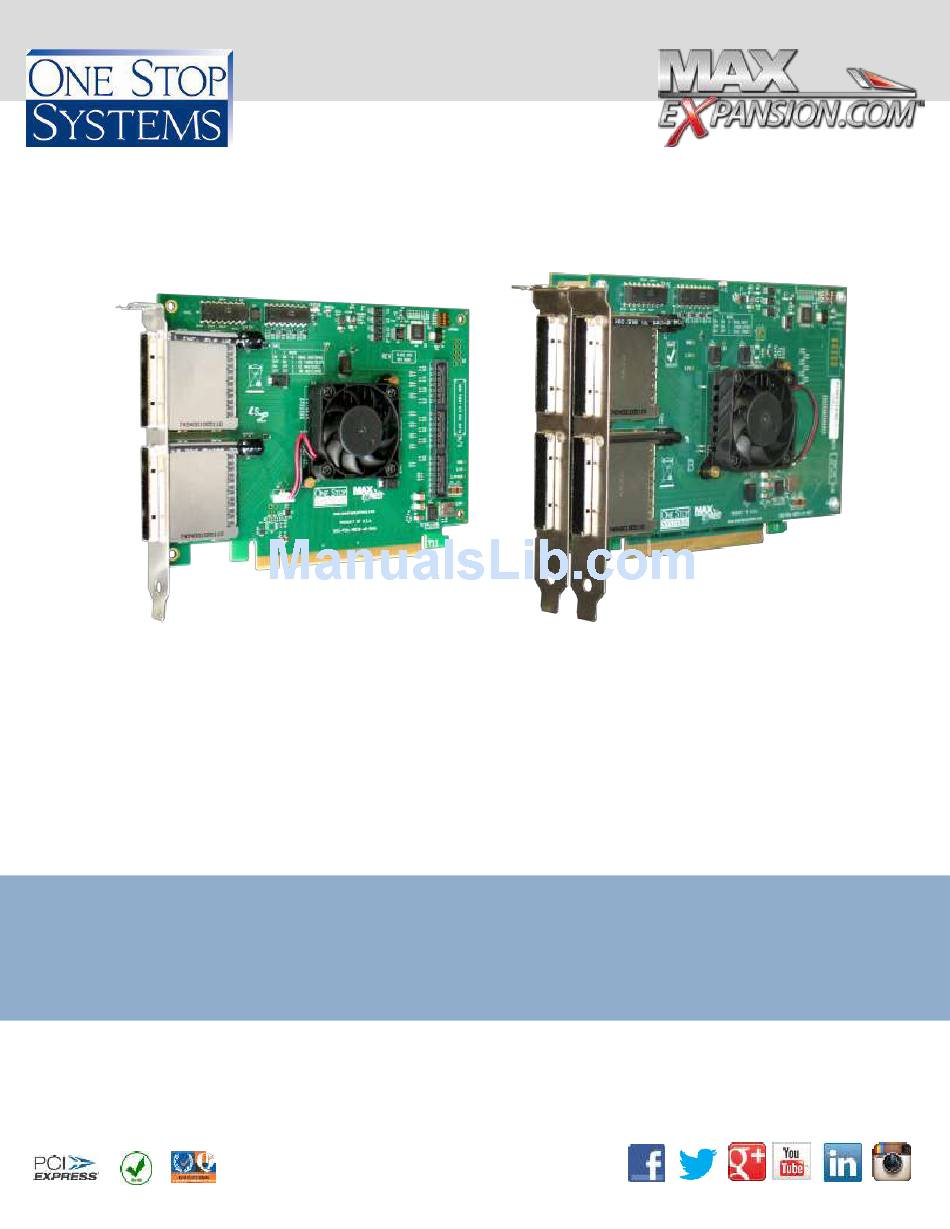

PCIe x8 Gen3 Dual and Quad Cable Adapters
OSS-PCIe-HIB38-x8-DUAL
OSS-PCIe-HIB38-x8-QUAD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSS-PCIe-HIB38-x8-DUAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for One Stop Systems OSS-PCIe-HIB38-x8-DUAL

  • Page 1 User Manual, PCIe x8 Gen3 Dual and Quad Cable Adapters OSS-PCIe-HIB38-x8-DUAL OSS-PCIe-HIB38-x8-QUAD...
  • Page 2: Table Of Contents

    3.d. Removing the host cable adapter ......................6 3.e. When using with any third party I/O device ................... 7 4. Ordering information 4.a. Ordering Information ..........................7 5. Appendix 5.a. Appendix............................... 7-12 One Stop Systems OSS-PCIe-HIB38-x8-DUAL/QUAD Specifications subject to change without notice Page 2...
  • Page 3: Overview

    1.b. Target cable adapters The target cable adapters (Part# OSS-PCIe-HIB38-x8-DUAL and OSS-PCIe-HIB38X8-QUAD) install into the target slot of any OSS target backplane and extend the PCIe bus to a single or multiple add-in boards installed in the I/O slots of the target backplane.
  • Page 4: Specifications

    Temperature Range: 0° to 50°C (32° to 122°F) Relative Humidity: 10 to 90% non-condensing Agency Compliance: UL60950.FCC Class B, CE safety and emissions 1.d. Block Diagram Quad Mezzanine Dual Board One Stop Systems OSS-PCIe-HIB38-x8-DUAL/QUAD Specifications subject to change without notice Page 4...
  • Page 5: Switch Settings

    3.b. Installation and Removal Power down the host system. Open the chassis according to your system documentation. Remove the host cable adapter from the protective bag, observing proper ESD safety procedures. One Stop Systems OSS-PCIe-HIB38-x8-DUAL/QUAD Specifications subject to change without notice Page 5...
  • Page 6: Installing The Host Cable Adapter

    To remove cable pull back on green thumb tab to release metal pins and gently separate. Loosen and remove the screw before removing the Host Cable Adapter from the card slot. One Stop Systems OSS-PCIe-HIB38-x8-DUAL/QUAD Specifications subject to change without notice...
  • Page 7: When Using With Any Third Party I/O Device

    Connect the PCIe cable to both the upstream host adapter and the downstream device. 4. Ordering Information OSS-PCIe-HIB38-x8-DUAL – PCIe x8 Gen3 host cable adapter installs in a x4, x8 or x16 expansion slot of a host system to extend the host bus to an expansion system or PCIe device.
  • Page 8 Ground Ground PERp4 Receiver differential pair, Lane 4 Ground PERn4 PETp5 Ground Transmitter differential pair, Lane 5 PETn5 Ground Ground PERp5 Receiver differential pair, Lane 5 Ground PERn5 One Stop Systems OSS-PCIe-HIB38-x8-DUAL/QUAD Specifications subject to change without notice Page 8...
  • Page 9 PERn6 PETp2 PERp2 CPSRNT$# CWAKE# PETn2 PERn2 CPWRON CPERST# PETp7 PERp7 PETn7 PERn7 PETp3 PERp3 PETp4 PETp4 PETn3 PERn3 PETn4 PERp4 PIN- out for the PCIe x8 Cable One Stop Systems OSS-PCIe-HIB38-x8-DUAL/QUAD Specifications subject to change without notice Page 9...
  • Page 10: Signal Descriptions

    PoWeR: Provides local power for in-cable redriver circuits. Only needed on long cables. Power does not go across the cable.) PWR_RTN PoWeR ReTurN: Provides local power return path for PWR pins. CWAKE# Cable WAKE CPERST# Cable PCI Express Reset One Stop Systems OSS-PCIe-HIB38-x8-DUAL/QUAD Specifications subject to change without notice Page 10...
  • Page 11 Mezzanine Connector Pin Out Side B Side A Pin # Pin # Name Description Name Description +12V 12V Power +3.3V +3.3V Power +12V 12V Power +3.3V +3.3V Power Not Connected +3.3Vaux +3.3V auxiliary Voltage Not Connected +3.3V +3.3V auxiliary Voltage PRESENT# Mezzanine Present Not Connected...
  • Page 12 PERn0 Receiver differential pair, Lane 0 PETn15 Receiver differential pair, Lane 15 PERp0 Receiver differential pair, Lane 0 PETp15 Receiver differential pair, Lane 15 One Stop Systems OSS-PCIe-HIB38-x8-DUAL/QUAD Rev. A Page 12...
