Summary of Contents for One Stop Systems OSS-PCIe-2U-ENCL-EXP-4-1

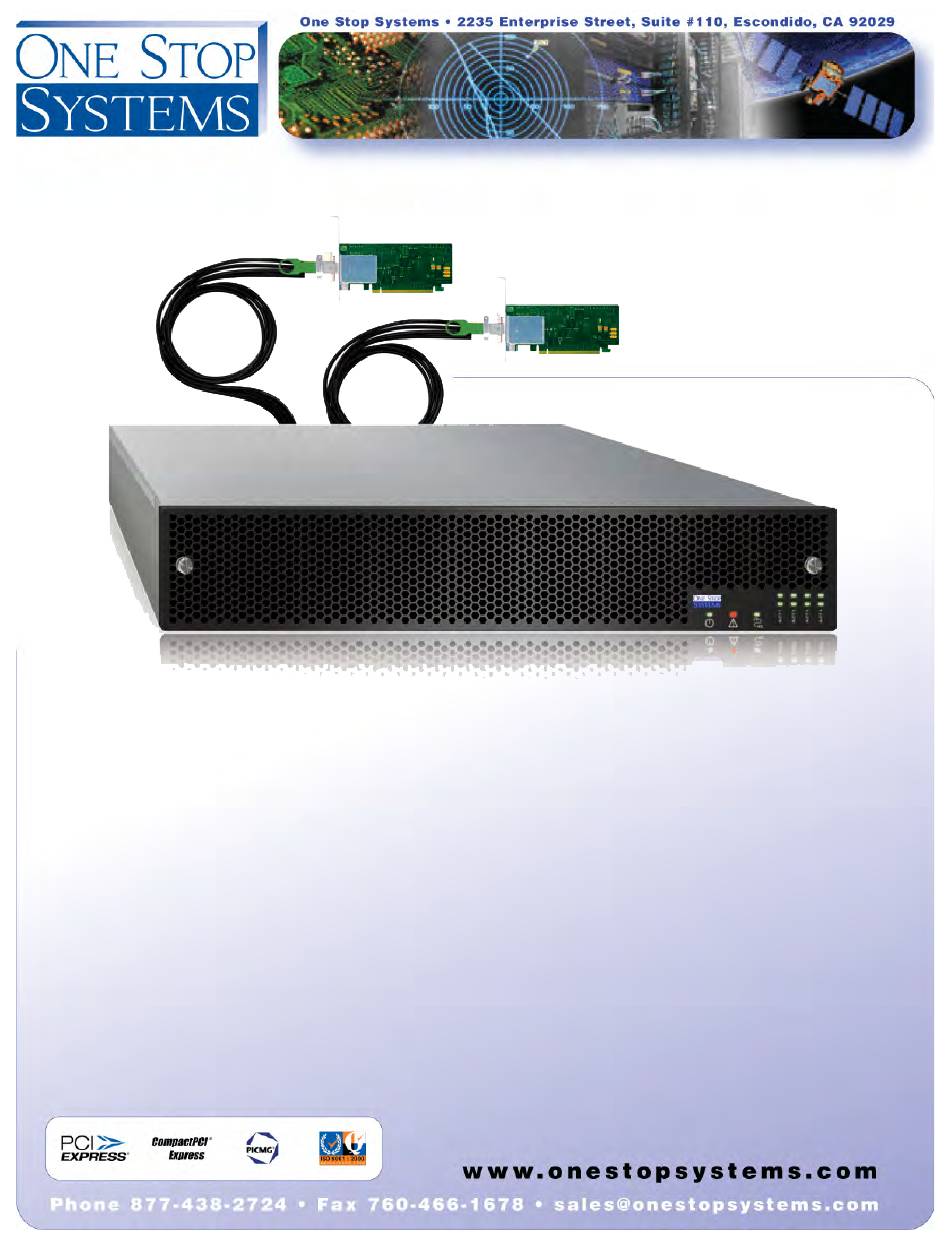

- Page 1 2U Expansion Platform OSS-PCIe-2U-ENCL-EXP-4-1 OSS-PCIe-2U-ENCL-EXP-4-2 OSS-PCIe-2U-ENCL-EXP-8-2...
-
Page 2: Table Of Contents
A.2 Installing the system monitor GUI ....................A-1 A.3 Using the system monitor GUI ....................... A-1 A.4 Configuring sensor parameters...................... A-2 A.5 Troubleshooting ..........................A-3 Appendix B B.1 System Monitor Command Protocol ....................B-1 One Stop Systems 2U Expansion Platform - 2 - Rev x2... -
Page 3: Overview
One Stop Systems does not accept any liability for any printing errors or other inaccuracies in the manual unless it can be proven that One Stop Systems is aware of such errors or inaccuracies or that One Stop Systems is unaware of these as a result of gross negligence and One Stop Systems has failed to eliminate these errors or inaccuracies for this reason. -
Page 4: Description
Inspect the equipment for shipping damage. Save all packing material for storage or return shipment of the equipment. For repairs or replacement of equipment damaged during shipment, contact One Stop Systems, Inc. to obtain a Return Materials Authorization (RMA) number and further shipping instructions. -
Page 5: Component Identification
2.c Rear panel components Thumb screw Ground banana jack AC power supply Thumb screw AC power cord External system PCIe x16 cable Removal connector monitor Ethernet connector handle connector One Stop Systems 2U Expansion Platform - 5 - Rev x2... -
Page 6: Internal
Individually removable fan modules Base board System monitor board Temperature sensors Version 2 – OSS-PCIe-2U-ENCL-EXP-4-2 Version 3 – OSS-PCIe-2U-ENCL-EXP-8-2 Removable trays Riser boards Base boards Divider tray thumb screws One Stop Systems 2U Expansion Platform - 6 - Rev x2... -
Page 7: Riser Card
PCIe x16 edge connector Version 2 – OSS-PCIe-2U-ENCL-EXP-4-2 PCIe x16 slot connector PCIe x16 edge connector Version 3 – OSS-PCIe-2U-ENCL-EXP-8-2 PCIe x16 slot connector Switch PCIe x16 edge connector One Stop Systems 2U Expansion Platform - 7 - Rev x2... -
Page 8: System Monitor
2.g System monitor components Programming power header (factory use only) System monitor Base board data Ethernet connector connector Programming header (factory use only) One Stop Systems 2U Expansion Platform - 8 - Rev x2... -
Page 9: Install And Remove I/O Boards
Slide the top cover toward the back and gently lift it from the chassis. 3.b Removing connector cables Remove the power connector from the base board by releasing the clip on connector’s edge. Remove the internal Ethernet connector from the base board. One Stop Systems 2U Expansion Platform - 9 - Rev x2... -
Page 10: Removing Tray For I/O Board Installation
Remove two screws from the outer edge of the chassis, two screws from the bottom of the chassis and two screws from the back of the chassis. 4 screws on edge of chassis 4 screws on back of chassis 2 screws on bottom of chassis One Stop Systems 2U Expansion Platform - 10 - Rev x2... -
Page 11: Installing I/O Boards
NOTE: When installing boards into your system that the standard board brackets will not fit. One Stop can provide new custom slot covers upon request and after receiving a drawing of the bracket. Contact the Sales Department, sales@onestopsystems.com. One Stop Systems 2U Expansion Platform - 11 - Rev x2... - Page 12 20. Replace the top cover by aligning it with the coordinating notches on the chassis. Slide the top cover into place. Tighten the thumb screw on the rear panel. One Stop Systems 2U Expansion Platform - 12 - Rev x2...
- Page 13 3.b Removing connector cables From the top tray remove the power connector from the base board by releasing the clip on the connector’s edge. Remove the base board to base board connector. One Stop Systems 2U Expansion Platform - 13 - Rev x2...
- Page 14 Remove the tray divider by lifting from the front edge toward the rear of the chassis. Remove the tray divider by loosening the two thumb screws. Lift from the front edge toward the rear of the chassis and remove the tray divider. One Stop Systems 2U Expansion Platform - 14 - Rev x2...
- Page 15 Remove the power connector from the base board by releasing the clip on the connector’s edge. 10. Remove the internal Ethernet connector from the base board. 11. Remove the base board to base board connector. One Stop Systems 2U Expansion Platform - 15 - Rev x2...
- Page 16 14. Remove two screws from the outer edge of the chassis, two screws from the bottom of the chassis and two screws from the back of the chassis. 2 screws on edge of chassis 2 screws on 2 screws on back of chassis bottom of chassis One Stop Systems 2U Expansion Platform - 16 - Rev x2...
- Page 17 NOTE: When installing boards into your system that the standard board brackets will not fit. One Stop can provide new custom slot covers upon request and after receiving a drawing of the bracket. Contact the Sales Department, sales@onestopsystems.com. One Stop Systems 2U Expansion Platform - 17 - Rev x2...
- Page 18 28. Reinsert the top tray into the chassis lining up tabs on bottom of tray to the corresponding lances on the chassis ensuring all the cables are out of the way. One Stop Systems 2U Expansion Platform - 18 -...
- Page 19 33. Replace the top cover by aligning it with the coordinating notches on the chassis. Slide the top panel into place. Tighten the thumb screw on the rear panel. One Stop Systems 2U Expansion Platform - 19 - Rev x2...
-
Page 20: Servicing The Enclosure
NOTE: You may perform this operation with the chassis lid on or off the unit. Straighten power supply removal handle. Loosen thumb screw. Screwdriver may be used if too tight. One Stop Systems 2U Expansion Platform - 20 - Rev x2... -
Page 21: Installing The Power Supply
4.f Installing rack slides Slide unit into rack. Attach the slides to Extender Install the slides into unit with five screws the rack using an on each side. extender if necessary. One Stop Systems 2U Expansion Platform - 21 - Rev x2... -
Page 22: Specifications
SW1-4 SW1-3 SW1-2 SW1-1 Network Configuration Normal use; retains network configuration as set up by the user or previous default configuration. Reserved Reserved Reserved Reserved Reserved One Stop Systems 2U Expansion Platform - 22 - Reserved Rev x2 Reserved Reserved... - Page 23 The Dip Switch is read only at power-up. One Stop Systems 2U Expansion Platform - 23 - Rev x2...
-
Page 24: Power Supply
The following subsections define recommended environmental specifications and test parameters. Based on the typical conditions to which an ATX power supply may be subjected during operation or shipment. Temperature Operating +0° C to +50° C Non-operating -40° C to +85° C One Stop Systems 2U Expansion Platform - 24 - Rev x2... - Page 25 The derating process promotes quality and high reliability. All electronic components are designed with conservative derating for use in commercial and industrial environments. Mean time between failures (MTBF) 100K hours minimum at full load 25° C per MIL HDBK217F calculated One Stop Systems 2U Expansion Platform - 25 - Rev x2...
-
Page 26: Base Board
Default PCIe x8 Links Default DIP switch – SW2 Pin # Name OFF Name ON Bottom Board Enable Default Passive Enable (-2) Default Default Top Temperature External Temperature Default One Stop Systems 2U Expansion Platform - 26 - Rev x2... -
Page 27: Riser Boards
• Two banks of four fans • System faults will cause fans to run at full speed • Missing riser card will cause fan bank to run at full speed One Stop Systems 2U Expansion Platform - 27 - Rev x2... -
Page 28: System Monitor Gui
1 in the image below. Click the Connect button. Click the Refresh Status button. Click the Automatic Monitor button to begin monitoring the system. Item 4 Item 1 Item 2 Item 3 One Stop Systems 2U Expansion Platform - 28 - Rev x2... - Page 29 Type menu. Adjust the threshold levels for the sensor. Click Save and Exit to save changes. Click Automatic Monitor to begin monitoring the system with the new sensor parameters. One Stop Systems 2U Expansion Platform - 29 - Rev x2...
-
Page 30: Troubleshooting
Windows 95, 98, or Me: regsvr32 \windows\system\MSWINSCK.OCX • Windows NT or 2000: regsvr32 \WINNT\system32\MSWINSCK.OCX • Windows XP: regsvr32 \windows\system32\MSWINSCK.OCX • You should see a message saying "DllRegisterServer ... succeeded" One Stop Systems 2U Expansion Platform - 30 - Rev x2... -
Page 31: System Monitor Command Protocol
Byte 1 Reserved Reserved Reserved Reserved Factory Global Global Global Defaults; Minor Major Critical Alarm; Alarm; Alarm; 1=Default 1=Alarm 1=Alarm 1=Alarm 0=User 0=Okay 0=Okay 0=Okay Defined Table 6: GET_System Monitor_STATUS One Stop Systems 2U Expansion Platform - 31 - Rev x2... - Page 32 Data Bit 3 Data Bit 2 Data Bit 1 Data Bit 0 Fan 5 Byte 23 Sensor Alarm Alarm Alarm Reserved Reserved Reserved Tach/Rev Enable Enable Bit 1 Bit 0 Divisor One Stop Systems 2U Expansion Platform - 32 - Rev x2...
- Page 33 1=Alarm if high Input 5 Byte 56 Reserved Reserve Reserve Reserve Reserved Reserved Reserved GP_Input 5 Sensor Input 4 Byte 57 Sensor Alarm Alarm Alarm Polarity Reserved Reserved Reserved One Stop Systems 2U Expansion Platform - 33 - Rev x2...
- Page 34 GP_Input 8 YY=0x1A GP_Input 7 YY=0x1B GP_Input 6 YY=0x1C GP_Input 5 YY=0x1D GP_Input 4 YY=0x1E GP_Input 3 YY=0x1F GP_Input 2 YY=0x20 GP_Input 1 Table 9: SENSOR INDEX = YY One Stop Systems 2U Expansion Platform - 34 - Rev x2...
- Page 35 Data Bit 7 Data Bit 6 Data Bit 5 Data Bit 4 Data Bit 3 Data Bit 2 Data Bit 1 Data Bit 0 Table 11: CONFIGURE_SENSOR – Ox34 One Stop Systems 2U Expansion Platform - 35 - Rev x2...
- Page 36 0x3A SET_PORT_NUMBER App Sends Packet(0x3A, Byte 1, Byte 2) to System Monitor For PORT NUMBER: www.xxx. ; Byte 1 = www, Byte 2 = xxx, System Monitor Returns Packet(0xAC) One Stop Systems 2U Expansion Platform - 36 - Rev x2...
