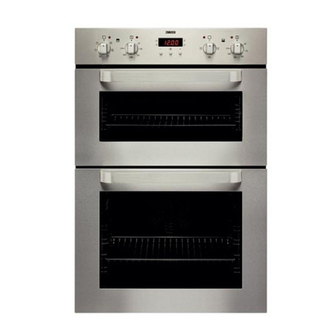

Zanussi ZOD370 User Manual

Oven
Hide thumbs

Advertisement

User manual
EN
Oven
ZOD370

Advertisement

loading

  Also See for Zanussi ZOD370

  Related Manuals for Zanussi ZOD370

  Summary of Contents for Zanussi ZOD370

  • Page 1 User manual Oven ZOD370...
  • Page 2: Table Of Contents

    Contents Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13 Product description _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4 What to do if…...
  • Page 3 to the appliance, only use an appliance with the appli- • Always close the appliance door when you cook, even ances from the same manufacturer. while grilling. Electrical connection Care and cleaning • The appliance must be earthed. • Before maintenance, switch off the appliance and dis- connect the appliance from the power supply.
  • Page 4: Product Description

    not be used for the full or partial illumination of a • Use only original spare parts. household room. Disposal of the appliance • If it becomes necessary to replace the lamp use one of • To prevent the risk of physical injury or damage the same power and specifically designed for house- –...
  • Page 5: Daily Use

    Pre-heating Set function and maximum temperature. Let the appliance operate without the food for ap- proximately 1 hour. Set function and maximum temperature. Let the appliance operate without the food for ap- proximately 10 minutes. Set function and maximum temperature. When you connect the appliance to the electrical supply or Let the appliance operate without the food for ap- in case of a power cut, the Time function indicator flashes...
  • Page 6: Clock Functions

    Oven function Application Top Heat Tor brown bread, cakes and pastries and for bakes. Bottom Heat To bake cakes with crispy or crusty bases and to preserve food. To grill flat food items in small quantities in the middle of the grill. To Single Circuit Grill make toast.
  • Page 7: Using The Accessories

    Clock function Application Time of day Shows the time. To set, change or check the time. Minute minder To set a countdown time. A signal sounds, after the time period is completed. This function has no effect on the operation of the oven. Duration To set how long the oven has to be in operation.
  • Page 8: Helpful Hints And Tips

    Inserting the oven shelf and deep roasting pan together You can use the grilling You can use the grilling set to roast larger pieces set to grill flat dishes in of meat or poultry on one large quantities and to level: toast: Put the oven shelf on the deep roasting pan.
  • Page 9: Tips On Baking

    Tips on baking Baking results Possible cause Remedy The cake is not browned Incorrect oven level Put the cake on a lower oven level sufficiently below The cake sinks (becomes Oven temperature too high Use a lower setting soggy, lumpy, streaky) The cake sinks (becomes Baking time is too short Set a longer baking time...
  • Page 10 Temperature Approx Cook Time Food Shelf Position [°C] (mins) - Meringues 90 - 100 150 - 180 - Flapjack 160 - 170 25 - 30 - Shortbread 130 - 150 45 - 65 Casseroles: - Beef/Lamb 150 - 170 150 - 180 - Chicken 160 - 180 75 - 90...
  • Page 11 Main oven Baking Shelf Positions are not critical but ensure that oven shelves are evenly spaced when more than one is used (e.g. shelf positions 1 and 3) Temperature Approx Cook Time Food [°C] (mins) Biscuits 180 - 190 10 - 20 Bread 190 - 210 30 - 35...
  • Page 12 Roasting • Roast lean meats in a roasting tin with a lid. This well keep the meat more succulent. Roasting dishes • All types of meat, that can be browned or have crack- • Use heat-resistant ovenware to roast (please read the ling, can be roasted in the roasting tin without the lid.
  • Page 13: Care And Cleaning

    Grill Time Food (mins in total) Chops - Lamb 15 - 25 - Pork 20 - 25 Fish - Whole 10 -12 Trout/ Makarel Fillets - Plaice/Cod 4 - 6 Kebabs 12 - 18 Kidneys - Lamb/Pig 6 - 10 Sausages 20 - 30 Steaks...
  • Page 14 Shelf Support Rails Removing the shelf support rails Pull the front of the Pull the rear shelf sup- shelf support rail away port rail away from the from the side wall. side wall and remove it. Installing the shelf support rails Install the shelf support rails in opposite sequence.
  • Page 15: What To Do If

    Hold the door glass panels on their top edge one by one and pull them upwards out of the guide Clean the door glass panels. To install panels follow the procedure in reverse. In- sert the smaller panel first, then the larger. 45°...
  • Page 16: Installation

    Problem Possible cause Remedy The oven does not heat up The oven is not switched on Switch on the oven The oven does not heat up The clock is not set Set the clock The oven does not heat up The necessary settings are not set Control the settings The oven does not heat up...
  • Page 17 600 min 550 min 2000 min 907 min 560 min 570 max 300 min...
  • Page 18 90°...
  • Page 19 2x 3,5x25 Electrical installation cable. Please choose from the most appropriate after read- ing the different methods : Warning! Only a qualified and competent person a) By connecting to a cooker point (having a double must do the electrical installation. pole isolating switch with at least 3mm contact sepa- The manufacturer is not responsible if you do not ration in all poles and neutral) and protected with a...
  • Page 20: Environment Concerns

    Cooker Point – Fit an Earth Leakage Circuit Breaker to your house wir- ing. – Wire your appliance to the latest IEE regulations. Oven It is good practice to : Environment concerns information about recycling of this product, please contact The symbol on the product or on its packaging your local council, your household waste disposal service...
  • Page 21 Care Depart- ing purposes) Electrolux Group (Irl) Ltd, Long Mile Road, Dublin 12, Re- ment, public of Ireland Electrolux 08445 613 613 Tel: +353 (0)1 4090751, Email: service.eid@electrolux.ie AEG-Electro- 08445 611 611 Zanussi-Elec- 08445 612 612 trolux...
  • Page 24 www.zanussi.com/shop...
