Lancom OW-602 Hardware Quick Reference

Mounting & connecting
Hardware Quick Reference
LANCOM OW-602

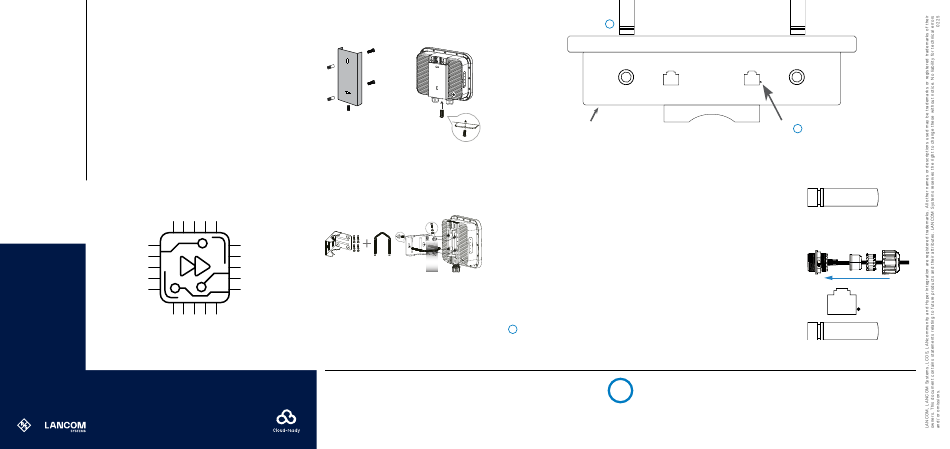

Mounting
➀ ➁
Wall mounting
➀
Use the mounting plate as a drilling template to mark
the drill holes in a sufficiently load-bearing wall.
After setting the dowels, align the mounting plate and then
fasten it to the wall using the provided M6 screws.
Then position the access point in front of the mounting
➁
plate as shown in graphic and slide it down the guide.
Then screw the locking screw from below through the
mounting plate into the housing of the access point and
tighten it.
➂ ➃
Pole mounting
➂
First screw the angle bracket to the access point
housing using the provided screws. Note the positioning
of the washers and lock washers directly under the screw
head. Then position the angle bracket with the screwed-on
➃
access point on the mast, guide the bracket around the
mast through the holes of the angle bracket and fasten it
with the enclosed nuts after aligning the access point.
Before initial startup, please make sure to take notice of the information regarding the
intended use in the enclosed installation guide!
Operate the device only with a professionally installed power supply at a nearby power
socket that is freely accessible at all times.
Installing access points and/or external antennas without adequate lightning protection can
lead to serious damage to the devices and/or to the related network infrastructure.
10
2.4G LAN1 (PoE)
➄ ➅ ➆
➄ Ground connection (bottom of device)
Attach the enclosed grounding cable to the housing on one side with the enclosed M3 screw and to a
suitable grounding conductor on the other side.
➅ Antenna connectors 2.4 GHz
Screw the supplied 2.4 GHz antennas to the connectors labeled ‚2.4G' on the front and back of the device.
➆ Ethernet interfaces LAN1 (PoE) / LAN2
The LAN1 (PoE) port supplies power to the device as well.
➇
Prepare to mount the waterproof Ethernet cable by sliding the end cap
D
Ethernet connector on the cable as shown in the adjacent figure.
C D
Then place the two seal halves between plug and clamp ring
Next, insert plug D into LAN1 connector E on the device, carefully push all previously assembled parts
towards plug D and screw the end cap A to LAN1 connector E on the device.
Outdoor cable diameter: 6.5 mm to 8.5 mm
Connect the other end of the network cable to the ‚Power-Out' port of a suitable PoE injector. If required,
additionally connect the LAN2 interface to another network device via a waterproof Ethernet cable.
➈ Reset button (accessible through the housing of the LAN2 socket)
To restore the default device configuration, use a suitable pointed object to carefully press the reset button
in the device through the recess in the housing of the LAN2 socket until the LEDs on the side of the device
go out. During the restart that now follows automatically, the device loads the default configuration.
Antenna connectors 5 GHz
10
Screw the supplied 5 GHz antennas to the connectors labeled ‚5G' on the front and back of the device.
Please observe the following when setting up the device
i
→ The housing of the device may become warm during operation.
→ If the device is operated with outside temperatures exceeding 60 °C, it should be mounted with protection
against contact.
→ When using customized outdoor Ethernet cables, make sure that the cables have a short plug kink
protection.
➅
LAN2 5G
➇ ➈ 10
A and then the clamp ring B over the
E D C B
B
on the cable and join them together.
A
