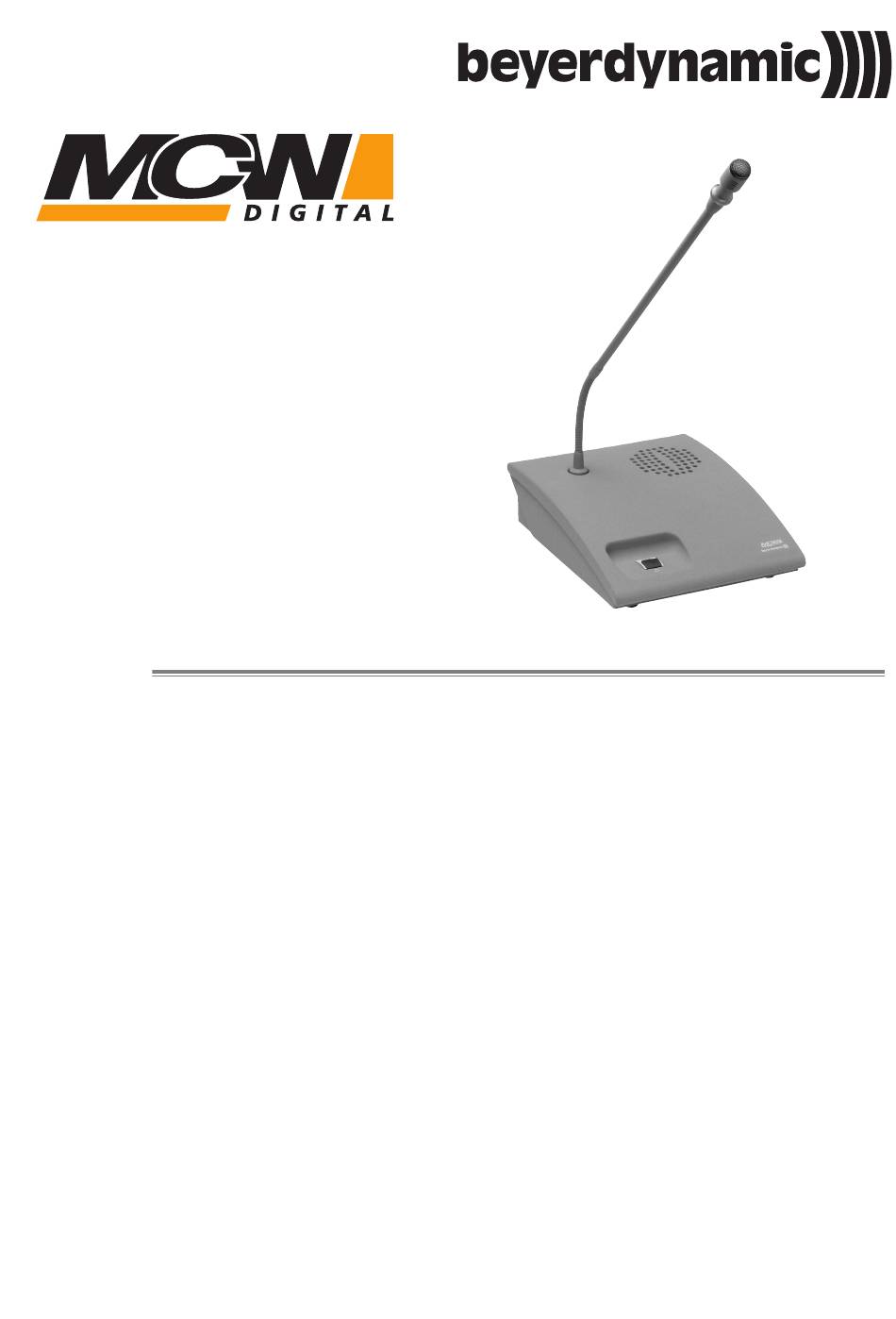

Beyerdynamic MCW-D 521 Manual

W
IRELESS
D
ELEGATE
M
ICROPHONE

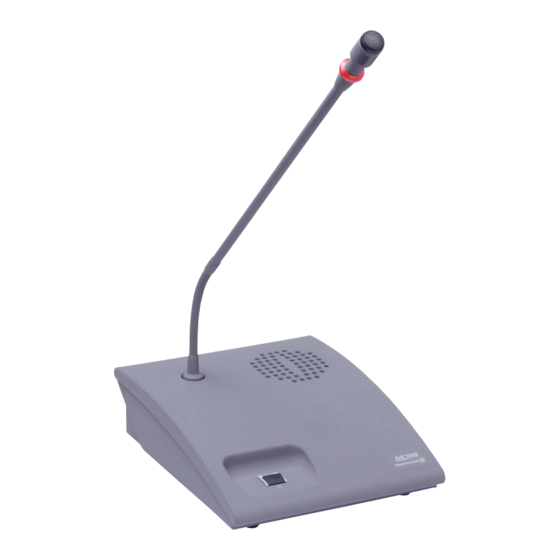

MCW-D 521
L
WITH OUDSPEAKER
Order # 479.748
F
EATURES
• Direct Sequence Spread Spectrum (DSSS) provides high immunity from interference and unauthorised listening
• Wireless transmission with integrated transmitting/receiving antenna in the 2.4 GHz frequency band which is approved world-wide
• Digitally encoded audio signals prevent unauthorised listening
• Integrated loudspeaker with voice equalisation
• Gooseneck microphone provides excellent audio quality
• Red illuminated ring around the gooseneck to indicate the ready-to-talk status of the microphone
• Microphone button to switch the microphone on / off or to register it in the system
• Dual colour LED for microphone ON (red: communication is established; green: microphone is switched on and ready for talking)
• DC-connection for DC-operation and battery charging
• Charging contacts
• Power on LED
• Mini stereo jack (3.5 mm) as documentation output for the connection of recorders, PCs with the steno-s recording software etc.
• High-quality plastic housing with charcoal-grey, non-glare and scratch-resistant Nextel
• The following parameters can be programmed: loudspeaker level, auto-off behaviour and voice-controlled activation
• Auto-Off function when nobody speaks into the microphone
• Fixed ducking level of -15 dB for the loudspeaker when the microphone is activated
• Microphone unit can be programmed by using the configuration software with the control unit
• APO function for Automatic Power OFF when the control unit is in the stand-by mode or switched off
• Processor-controlled charging electronics to prevent the "memory effect" of the battery
• Reliable charging electronics ensures immediate use of the microphone units
• LED ring of the gooseneck microphone indicates charging status
• Maximum charging time of 2 hours when the battery (NiMH) is completely empty
• Operating time approx. 20 hours
Germany
Theresienstr. 8
D-74072 Heilbronn
Tel. +49 (0 )71 31 / 6 17-0
Fax +49 (0 )71 31 / 617-224
E-mail: info@beyerdynamic.de
Internet: www.beyerdynamic.de
,
DIGITAL
U
NIT
United States
56 Central Ave.
Farmingdale, NY 11735
Tel. +1 (631) 293-3200
Fax +1 (631) 293-3288
E-mail: salesUSA@beyerdynamic.com
Internet: www.beyerdynamic.com
® finish
Great Britain
17 Albert Drive
Burgess Hill RH15 9TN
Tel. +44 (0)1444 / 258 258
Fax +44 (0)1444 / 258 444
E-mail: sales@beyerdynamic.co.uk
Internet: www.beyerdynamic.co.uk
