Beyerdynamic MCW-D 2071 Features And Specifications

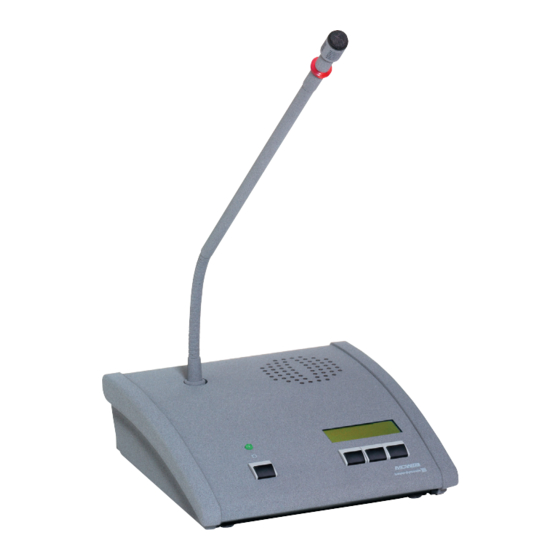

MCW-D 2071
Wireless, digital Delegate Microphone Unit
Order # 472.751
F
EATURES
• Direct Sequence Spread Spectrum (DSSS) provides
high immunity from interference and unauthorised listening
• Wireless transmission with integrated transmitting/receiving
antenna in the 2.4 GHz frequency band which is approved
world-wide
• Maximum of 8 receiving channels
• Digitally encoded audio signals prevent unauthorised listening
• Integrated loudspeaker with voice equalisation
• Multilingual LC-Display 2 lines, 16 characters, with automatic
switch-off of the illumination
• 3 multi-function buttons and LC-Display for votings, channel
selection in interpreting applications, headphone volume or
battery status
• Gooseneck microphone provides excellent audio quality
• Red illuminated ring around the gooseneck to indicate the
ready-to-talk status of the microphone
• Microphone button to switch the microphone on / off or to
register it in the system
• Dual colour LED for microphone ON
(red: communication is established;
green: microphone is switched on and ready for talking)
• Multi-function-connection for DC-operation or battery
charging
1 of 7
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 224
info@beyerdynamic.de | www.beyerdynamic.de
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E2 / MCW-D 2071 (02.10)
• Gold-plated charging contacts
• Power on LED
• Mini stereo jack (3.5 mm) as headphone output or as
documentation output for the connection of recorders,
dictating machines etc.
• Connection for 3/8" stand adapter (as an option)
• Modern fully metal housing with charcoal-grey, non-glare and
scratch-resistant Nextel ® finish
• The following parameters can be programmed:
loudspeaker level,
recording/headphone level,
loudspeaker attenuation when microphone is switched on,
auto-off settings, RF transmitter power, RF input sensitivity,
low battery indication, voice-controlled switching on, hold time
• Auto-Off function when nobody speaks into the microphone
• Microphone unit can be programmed by using the appropriate
configuration software with the control unit
• APO function for Automatic Power OFF when the control unit
is in the stand-by mode or switched off
• Maximum charging time of 2 hours when the rechargeable
battery (NiMH) is completely empty
• Operating time 8 - 9 hours depending on the relation between
Speaking and Listening
