BP7486 CF430 Highrise OM
12/13/13
10:35 AM
Page 1
READ AND SAVE THESE INSTRUCTIONS
™

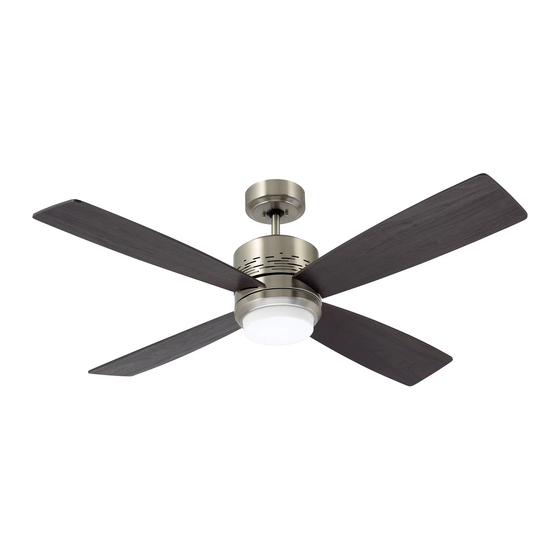

HIGHRISE
50" Ceiling Fan Owner's Manual
Model Numbers
CF430BS00
CF430ORB00
Brushed Steel
Oil Rubbed Bronze
CF430SW00
Satin White
24.3
Net Weight:
Lbs.
Questions, problems, missing parts: Before returning to the store call
Emerson Electric Customer Service
8 a.m. - 6 p.m., Eastern, Monday-Friday
1-800-654-3545
Part No. F40BP74860000
Form No. BP7486
www.emersonfans.com
Revision: 131212
ETL Model No.: CF430
