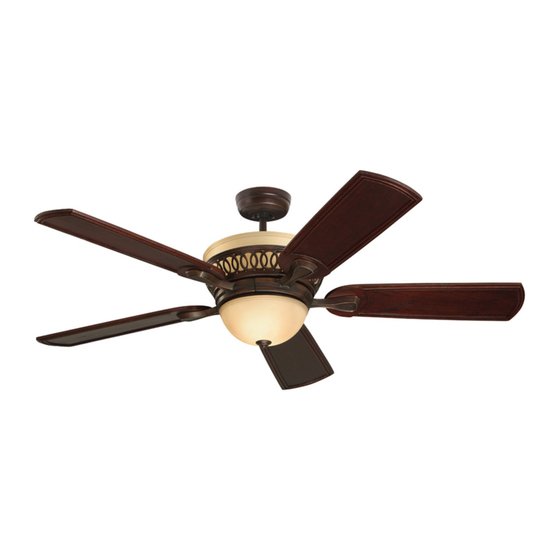

Braddock 54” ceiling fan

Advertisement

READ AND SAVE THESE INSTRUCTIONS
54" Ceiling Fan Owner's Manual
DATE CODE:
The date code of this fan may be found on the box, stamped in ink on a white label.
You should record this data above and keep it in a safe place for future use.
Part No. F40BP74520000
BRADDOCK
Model Number
CF440VNB00
Net Weight:
29.5
Lbs.
Form No. BP74452
U.L. Model No.: CF440

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRADDOCK CF440VNB00 and is the answer not in the manual?

Questions and answers

Summary of Contents for Emerson BRADDOCK CF440VNB00

  • Page 1 READ AND SAVE THESE INSTRUCTIONS BRADDOCK ™ 54” Ceiling Fan Owner's Manual Model Number CF440VNB00 29.5 Net Weight: Lbs. DATE CODE: The date code of this fan may be found on the box, stamped in ink on a white label. You should record this data above and keep it in a safe place for future use.
  • Page 2: Safety Instructions

    WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed control, Model No. UC7067RAL manufactured by Rhine Electric Co., Ltd. WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not specifically approved for this fan.
  • Page 3: Unpacking Instructions

    4. Remove the fan motor assembly from the by Emerson Electric Co. could result in personal protective plastic bag and set on top of the lower injury or property damage.
  • Page 4: Electrical Requirements

    Electrical Requirements Your new ceiling fan will require a grounded electrical WARNING supply line of 120 volts AC, 60 Hz, 15 amp circuit. The outlet box must be securely anchored and Turning off wall switch is not sufficient. To avoid capable of withstanding a load of at least 50 pounds.
  • Page 5 How to Put Your Ceiling Fan Together (continued) WARNING Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly HANGER grounded as a precaution against possible electrical...
  • Page 6 How to Put Your Ceiling Fan Together (continued) 7. Remove the three #8-32 x .31” pan head screws from the fan motor housing (retain for future installation). 8. Carefully place the upper glass into the fan motor 15-WATT (max.) CANDELABRA BULB (4) housing assembly (Figure 6).
  • Page 7: How To Hang Your Ceiling Fan

    How to Hang Your Ceiling Fan CEILING WARNING Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock.
  • Page 8: How To Wire Your Ceiling Fan

    How to Wire Your Ceiling Fan If you feel that you do not have enough electrical SUPPLY WHITE RECEIVER WHITE WIRE wiring knowledge or experience, have your fan WIRE (NEUTRAL) RECEIVER BLACK installed by a licensed electrician. WIRE SUPPLY BLACK RECEIVER WIRE (HOT) WARNING...
  • Page 9 Restore electrical power to the branch circuit at the LIGHT KIT ASSEMBLY fuse box or breaker panel. Please call Emerson technical support at LOWER GLASS SHADE 1-800-654-3545 if you have any questions about installation and operation of this ceiling fan.
  • Page 10 If Preset Memory Feature turned on, the fans lights will blink when the code Your Emerson receiver is equipped with a preset is set. memory feature. If the AC supply to the receiver is powered through a wall switch, when the switch is 7.
  • Page 11: Remote Control Procedures

    Remote Control Procedures Operation of Remote Control IMPORTANT Fan installation must be completed, including the TO INSTALL BRACKET COVER installation of the fan blades, before testing of the TO WALL: SLIDE THE COVER UP remote control. TO EXPOSE THE SCREW WALL HOLES FOR BRACKET...
  • Page 12: Maintenance

    Emerson Electric Co. Substitution of parts or accessories not designated for use with this product The use of any other control not specifically by Emerson Electric Co. could result in personal approved for this fan could result in fire, shock and injury or property damage.
  • Page 13: Troubleshooting

    Trouble Shooting WARNING: For your own safety, turn off power at fuse box or circuit breaker before trouble shooting your fan. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fan will not start. 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit breakers.
  • Page 14: Repair Parts

    Repair Parts U.L. Model No.: CF440...
  • Page 15: How To Order Repair Parts

    Repair Parts Listing Model Number Description CF440VNB00 Hanger Ball Assembly, 761655-89 Consisting of: Hanger Bracket — Hanger Ball — Downrod (4.5”) — Parts Bag Containing: 764236 Wire Connector (3) — Pin, Clevis (1) — Clip, Hairpin (1) — Threaded Stud, #8-32 x 1-1/4” (2) —...
  • Page 16: Limited Warranty

    Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If repair of the motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson will refund the actual purchase price of your fan.
