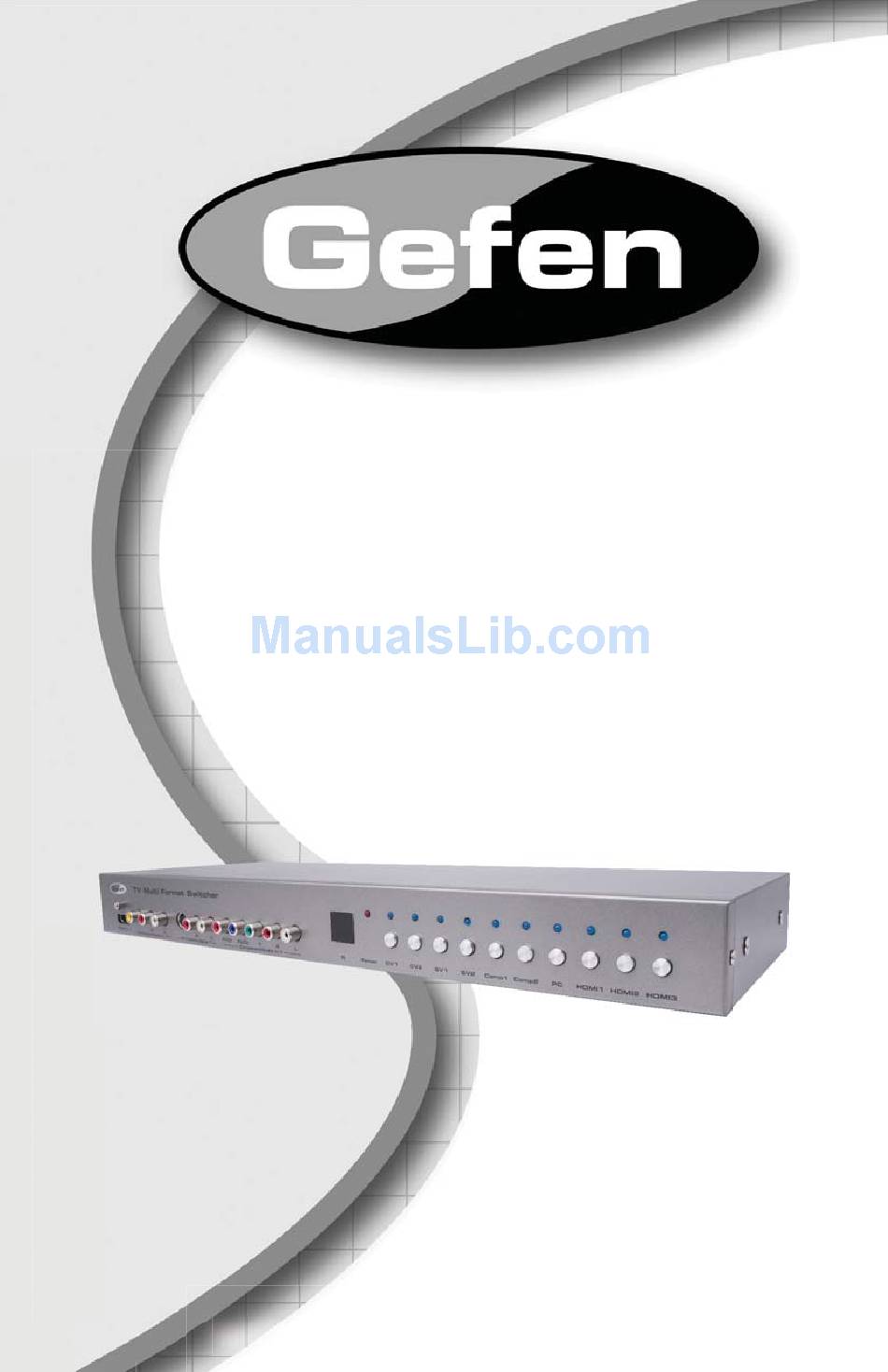

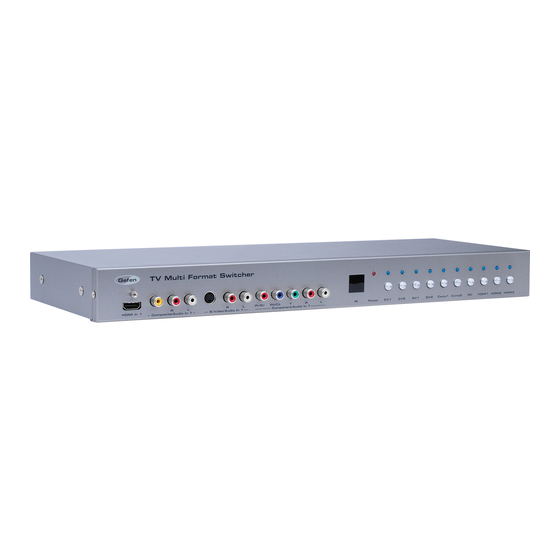

- Page 1 ® Multi-Format Switcher EXT-TV-MFS User Manual www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. EXT-TV-MFS is a trademark of Gefen, LLC © 2010 Gefen, LLC, All Rights Reserved All trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating The EXT-TV-MFS Multi Format Switcher Remote Description EXT-TV-MFS Remote Installation IR Code Confi guration 10. RS-232 Serial Control Interface 11. RS-232 Serial Communication Commands 12. Specifi cations 13. Warranty... -
Page 4: Introduction
Congratulations on your purchase of the TV Multi Format Switcher. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE EXT-TV-MFS • All analog video inputs will be converted to digital and will be output through the HDMI outputs. • All analog audio inputs will be converted to digital audio and will be output through the HDMI outputs. -
Page 6: Features
FEATURES Features • The Multi-Format Switcher allows many A/V sources to be switched to one HDTV display • A/V sources include (2) Composite, (2) S-video, (2) Component, (1) VGA and (3) HDMI. • Selectable de-interlacing of 480i/576i sources to 480p/576p •... -
Page 7: Panel Layout
PANEL LAYOUT Back Panel Back Panel Front Panel Note: A dashed line indicates inputs which are associated, such as a video source and its audio counterpart. Both will be merged into the HDMI output stream. -
Page 8: Panel Descriptions
Audio Delay - Adds a short delay to output audio. Useful for console gaming. RS-232 Port - Attach a DB9 serial cable here to upgrade the fi rmware using an internet-enabled computer. Please call Gefen when attempting this operation. Composite Input - Attach a cable having 1 x RCA Composite Video connector here. -
Page 9: Connecting And Operating The Ext-Tv-Mfs
Connect analog audio sources for Component, Composite and S-Video inputs using 2 x RCA cables (Front 3,5,7 and Back 5,7,9) Connect up to three HDMI sources to EXT-TV-MFS (Front 1, Back 12, 13). Plug in the 5V DC power supply (Back Panel, 15). The Switcher will turn on and the power indicator LED on the front panel (Front, 9) will glow red. -
Page 10: Multi Format Switcher Remote Description
As soon as one of the A/V input sources is selected, the corresponding source selection indicator (Blue LED) will light up on the front panel of the EXT-TV-MFS unit and the Switcher will output that source on the video display. -
Page 11: Ext-Tv-Mfs Remote Installation
EXT-TV-MFS REMOTE INSTALLATION Remove battery cover from the back of the EXT-RMT-MFS remote. Verify that DIP switches 1 & 2 are in the down (OFF) position. (See page 13) Insert the battery, hold the battery so that you can see the positive side facing up. -
Page 12: Ir Code Confi Guration
Format Switcher and the EXT-RMT-MFS remote control are set to Channel 1. Remote Channel 1: Remote Channel 2: Default Remote Channel 3: Remote Channel 4: EXTENDING THE IR RANGE The optional IR extender (Gefen part # EXT-RMT-IREXT) allows you to relocate your HDMI Switcher and still retain IR control. -
Page 13: Rs-232 Serial Control Interface
RS-232 SERIAL CONTROL INTERFACE What features are available via the RS-232 serial communications port? The TV Multi Format Switcher can accept commands through the RS-232 serial communications port located on the rear panel. The current RS-232 control commands allow switching/routing of A/V inputs to outputs without the use of the IR remote control. -
Page 14: Rs-232 Serial Communication Commands
RS-232 SERIAL COMMUNICATION COMMANDS Commands These commands are sent in ASCII format to the Switcher: Response Command Code Description > POWER OFF S POWER 0 POWER OFF > POWER ON S POWER 1 POWER ON > SOURCE HDMI1 S SOURCE 0 HDMI1 INPUT >... -
Page 15: Specifi Cations
SPECIFICATIONS Digital Maximum Pixel Clock ..............225 MHz Analog Video Amplifi er Bandwidth ............350 MHz Maximum Resolution: ............. 1080p/1920 x 1200@60Hz Input DDC Signal ................. 5 Volts p-p (TTL) Input Video Signal ................1.2 Volts p-p HDMI Input Connector: ............(3) Type A 19 Pin female HDMI Output Connector:.......... - Page 17 Rev A8 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
