Chapter 2

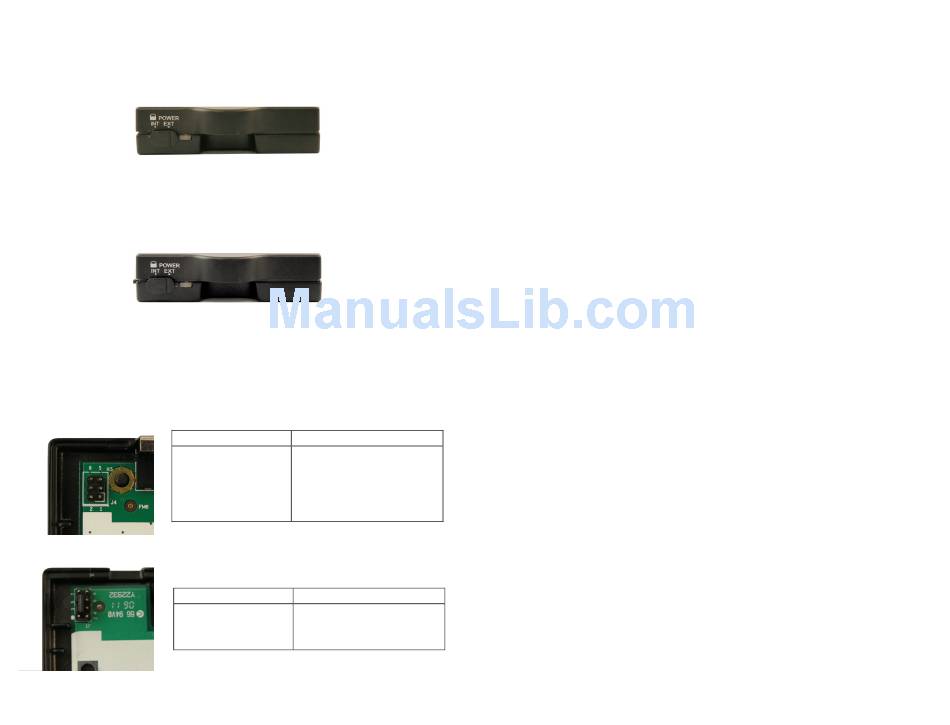

Jumper Settings Inside the Jupiter Combo Hard Drive Case
A. Settings when Jupiter ExDrive is used as an External Enclosure
1. If the Jupiter ExDrive will be used externally with the external AC adapter,
the switch from the case must be switch to the right, labeled EXT to grab
power from external power supply.
Application: Jupiter ExDrive can be set to receive power EXT and be used
with three types of USIB cables: USB2.0 USIB, Firewire USIB & SATA USIB
2. If the Jupiter ExDrive will be used externally without the external AC
adapter, the switch from the case must be switch to the left, labeled INT to
grab power from system.
Application: Jupiter ExDrive can be set to receive power INT and be used with
the following types of USIB cables: USB2.0 USIB & Firewire USIB
FOR 2.5" IDE HARD DISK DRIVE
Note:
We recommend setting the hard drive to MASTER mode/setting at all
times. (Default setting)
J4 Pin Definition for Master Setting
Hard Drive Brand
Hitachi
NEC
Fujitsu
Toshiba
Seagate
J1 Pin Definition for USIB Interface
Hard Drive Setting
Master
Addonics Technologies – Jupiter Combo Hard Drive User's Guide v1.0
J4 Jumper Setting
Pin 1~6 Open
J1 Jumper Setting
Pin 3 - Pin 5 Short
4
