FOR 2.5" SATA HARD DISK DRIVE

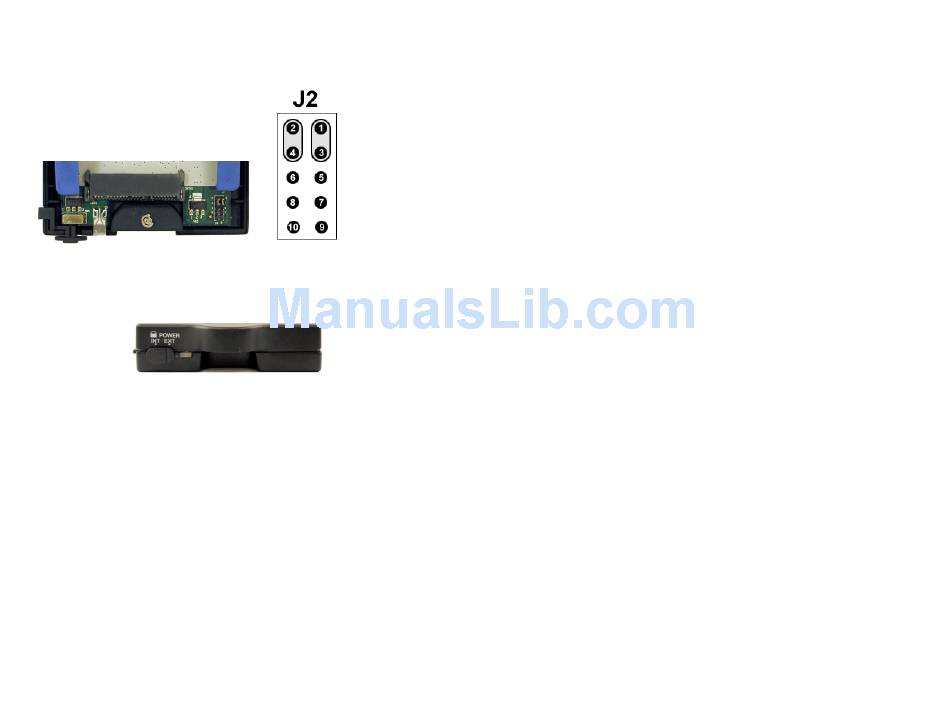

J2 Pin Definition for USIB Interface
Pin 1 - Pin 3 shorted
Pin 2 - Pin 4 shorted
Since the Jupiter Mobile Rack will be use internally without external AC
adapter, the switch from the case must be switch to the left, labeled INT to grab
power from system.
Addonics Technologies – Jupiter Combo Hard Drive User's Guide v1.0
13
