Configuration: Jupiter Cipher ExDrive enclosure is inside mobile rack.
Mobile rack is connected to the IDE Controller on the mainboard with an
IDE cable.

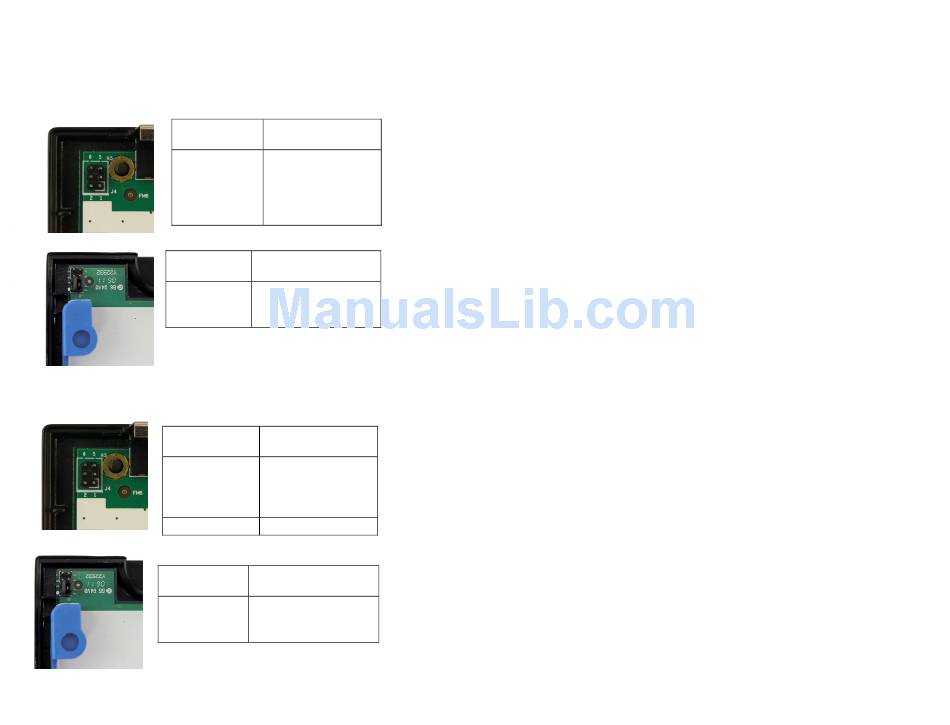

FOR 2.5" IDE HARD DISK DRIVE
A. Jupiter ExDrive is set to MASTER
Hard Drive
Brand
Hitachi
NEC
Fujitsu
Toshiba
Seagate
Hard Drive
Setting
Master
B. Jupiter ExDrive is set to SLAVE
Hard Drive
Brand
Hitachi
NEC
Fujitsu
Seagate
Toshiba
Hard Drive
Setting
Slave
Addonics Technologies – Jupiter Combo Hard Drive User's Guide v1.0
J4 Jumper
Setting
Pin 1~6 Open
J1 Jumper
Setting
Pin 1 – Pin 3 Short
Pin 2 – Pin 4 Short
J4 Jumper
Setting
Pin 1 – Pin 2 Short
Pin 3 – Pin 4 Short
J1 Jumper
Setting
Pin 1 – Pin 3 Short
Pin 2 – Pin 4 Short
