T E C H N O L O G I E S

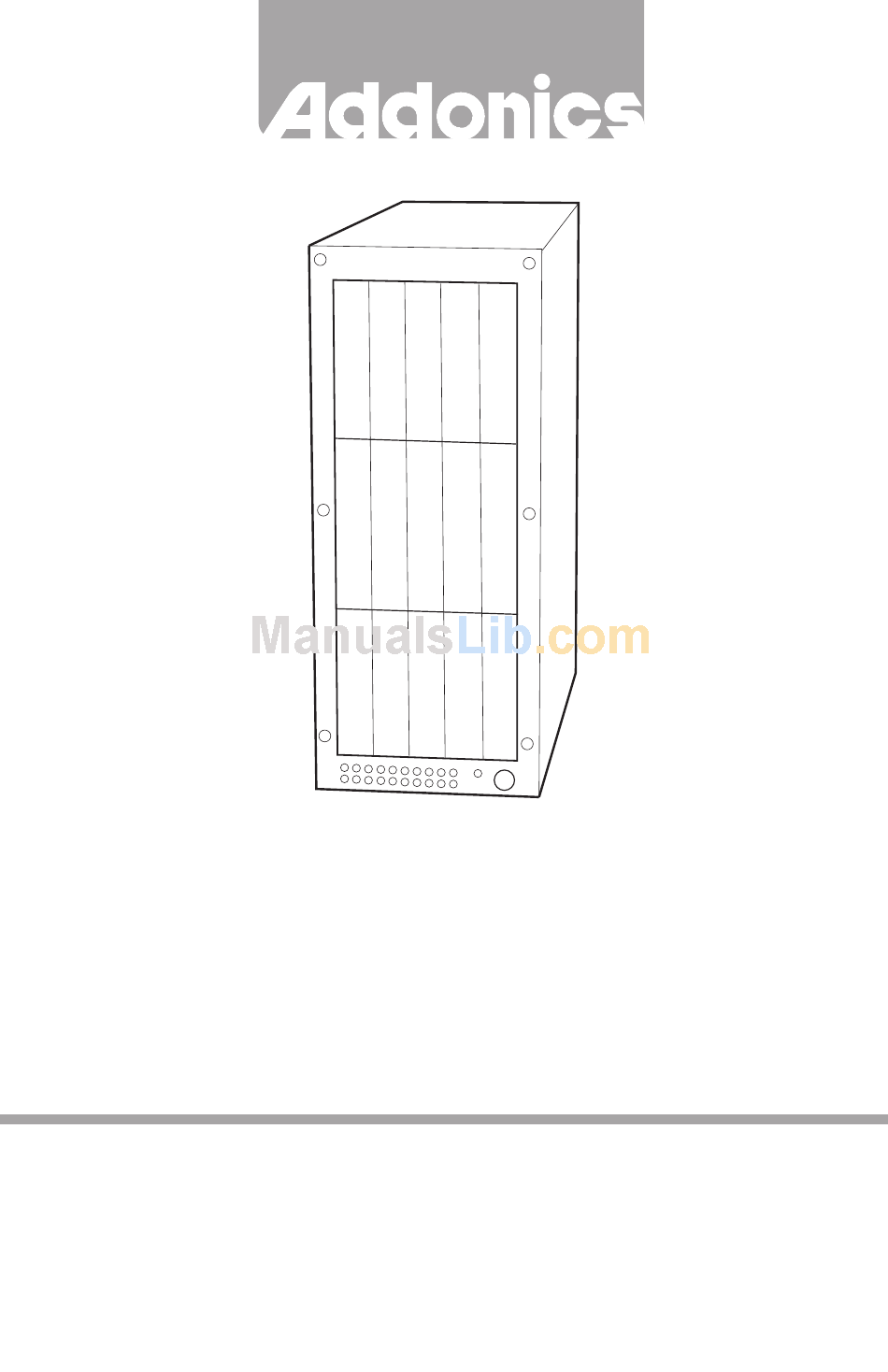

User Guide
RAID Tower IX
(RT93DAHX / RT93DAHXML)
www.addonics.com
v5.1.11
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
Advertisement
Table of Contents
Related Manuals for Addonics Technologies RAID TOWER IX RT93DAHX
Summary of Contents for Addonics Technologies RAID TOWER IX RT93DAHX
- Page 1 T E C H N O L O G I E S User Guide RAID Tower IX (RT93DAHX / RT93DAHXML) www.addonics.com v5.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at: Hours: 8:30 am - 6:00 pm PST Phone: 408-453-6212 Email: http://www.addonics.com/support/query/...
- Page 2 RT93DAHX RT93DAHXML Screws Screws Removing Cover of RAID Tower IX Loosen the 5 screws at the back of the tower using a Philips screwdriver by turning counter-clockwise. Separate the metal casing of the tower from the housing by lifting up the casing. eSATA Ports Multilane Port Installing drives into the...
- Page 3 RAID Setting Button Floppy Power Connector Raid Mode Individual Drive (Factory Default) 1 and 10 Clone Large www.addonics.com Technical Support (M-F 8:30am - 6:00pm PST) Dip Switch SATA Host Port (Port 5) SATA Port 2 Drive activity LED Jumper Block (J1) Error LED Jumper Block (J3) Dip Switch Settings Enable...
-
Page 4: Error Led
Default factory DIP Switch setting: SW1 – RAID Setting DIP Switch BZS – Error buzzer function EZ – Automatic rebuilding to spare drive (one of the drives on the raid is set as a spare). If EZ is ENABLED anda drive failure occurs, the spare will automatically act as a drive replacement and rebuilding will automatically start. - Page 5 Setting or Modifying the RAID Mode Using the JMicron HW RAID Manager Utility Program: For Windows users, install the JMicron HW RAID Manager located on the SATA Controller CD. In the CD, go to Configuration Utilities > JMB393. This manager can be use to create and monitor the status of the RAID volume. It is recommended to use the default factory RAID DIP switch setting when using the JMicron HW RAID Manager.
-
Page 6: Clone Mode
On the DIP switch, change (M0 to M2) setting to the desired RAID mode using the diagram below. All settings on the diagram shows • • RAID 0 Mode BZS EZ M2 M1 M0 RAID 1& RAID 10 Mode BZS EZ M2 M1 M0 RAID 3 Mode BZS EZ M2 M1 M0 www.addonics.com... - Page 7 RAID Setting Notes: RAID 1& RAID 10 Mode BZS EZ M2 M1 M0 When 4 drives are connected to the HPM-XA, the 4 drives will be configured as a 4-drive RAID10 array. Clone Mode BZS EZ M2 M1 M0 Press the RAID setting button with a ball point pen. While pressing the RAID setting button turn on the system power where the HPM is connected.
-
Page 8: Power On/Off Control
Notes on Spare Drives using the Easy RAID Setting (EZ) When EZ function is ENABLED, the auto-rebuilding to spare drive is automatic. The degraded RAID group will start rebuilding automatically by using the existing spare drive. * Spare drive can be either plugged before RAID building or a new drive can be plug as the spare drive when RAID rebuild is required.
