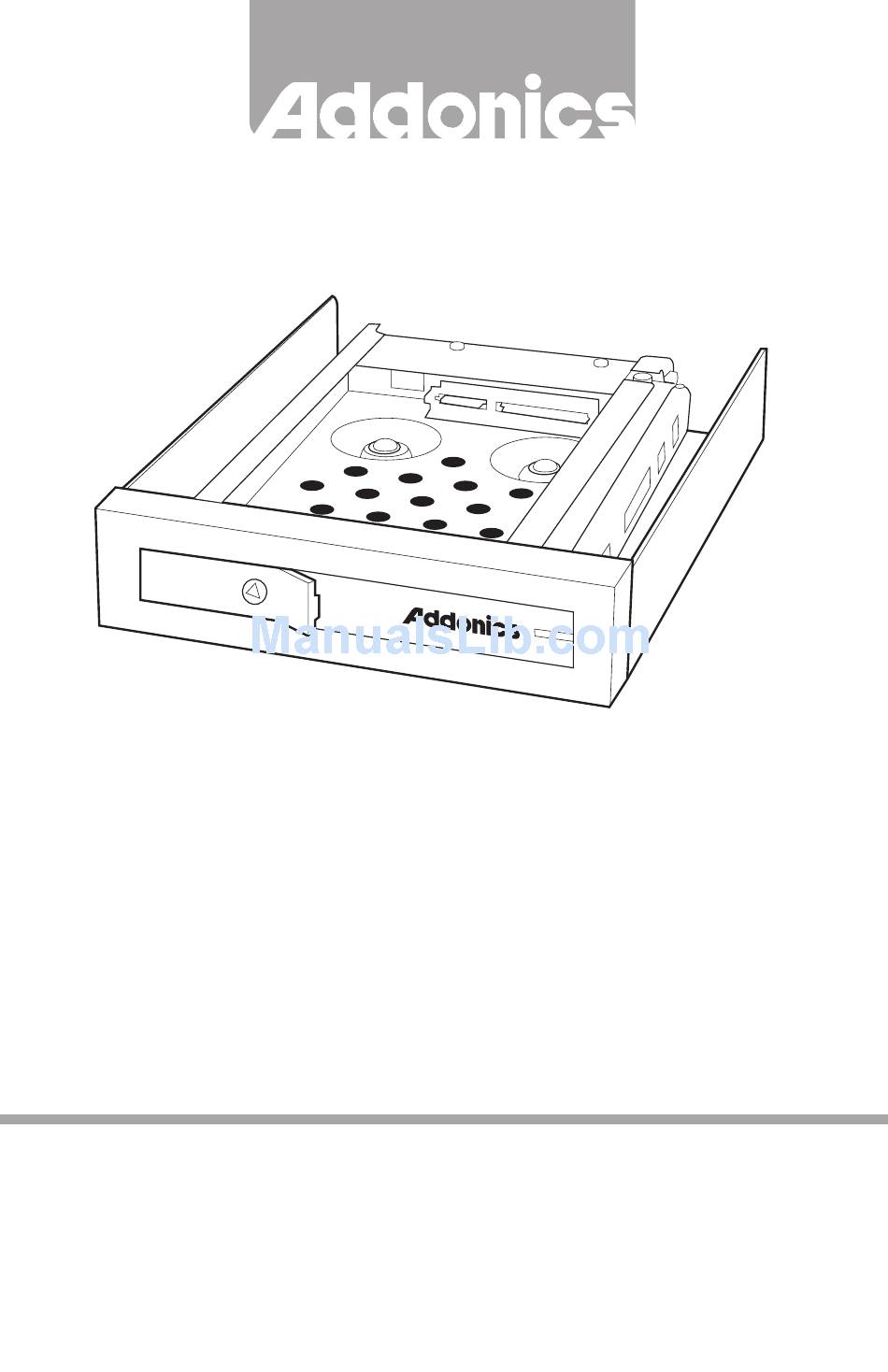

T E C H N O L O G I E S
User Guide
2.5" Snap-In SP
(AE25SNSP)
www.addonics.com
v3.1.11
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
Advertisement
Table of Contents
Related Manuals for Addonics Technologies AE25SNSP
Summary of Contents for Addonics Technologies AE25SNSP
- Page 1 T E C H N O L O G I E S User Guide 2.5" Snap-In SP (AE25SNSP) www.addonics.com v3.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:...
-
Page 2: Front View
Screws Back View To power supply in your system 4 Pin LED Port SATA Power Cable SATA Data Connector SATA Data Cable SATA Power Connector LED Cable To SATA port in your system Installing the 2.5” Snap-In SP Screw the device into the 3.5” drive bay of your computer. After unit is screwed in, attach the SATA power cable that comes with the unit and the SATA data cable into the device’s connectors as shown above.
