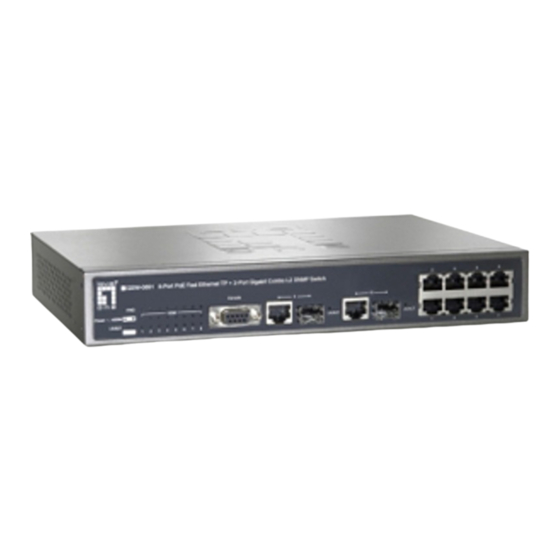

LevelOne GSW-0891 User Manual

8-port poe fast ethernet tp + 2-port gigabit combo l2 snmp switch
Hide thumbs Also See for GSW-0891:
Table of Contents

Advertisement

Quick Links

Download this manual
GSW-0891
8-Port PoE Fast Ethernet TP + 2-Port Gigabit Combo L2 SNMP Switch

User Manual

Ver. 1.00-0711

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSW-0891 and is the answer not in the manual?

Questions and answers

Related Manuals for LevelOne GSW-0891

Summary of Contents for LevelOne GSW-0891

  • Page 1: User Manual

    GSW-0891 8-Port PoE Fast Ethernet TP + 2-Port Gigabit Combo L2 SNMP Switch User Manual Ver. 1.00-0711...

  • Page 2: Fcc Warning

    FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Content FCC Warning ..................ii CE Mark Warning................ii Introduction ................1 Features.................... 2 Software Feature................3 Package Contents................6 Hardware Description ............8 Physical Dimension ................8 Front Panel ..................8 LED Indicators................... 9 Rear Panel ..................10 Desktop Installation ................. 10 Attaching Rubber Pads...................
  • Page 4 Trunk Commands Set..................25 VLAN Commands Set ..................27 Spanning Tree Commands Set ..............29 QOS Commands Set..................31 IGMP Commands Set..................32 Mac / Filter Table Commands Set ..............32 SNMP Commands Set ................... 33 Port Mirroring Commands Set ................ 36 802.1x Commands Set ...................
  • Page 5 SNTP Configuration ................ 56 IP Security..................58 User Authentication ................. 60 Port Statistics .................. 60 Port Control..................61 Port Trunk ..................62 Port Trunk - Aggregator setting ..............62 Port Trunk - Aggregator Information ............... 64 Port Trunk - State Activity ................65 Port Mirroring ..................
  • Page 6 802.1X/Radius Configuration................90 System Configuration.................. 90 802.1x Per Port Configuration..............91 Misc Configuration ..................92 MAC Address Table ..................93 Static MAC Address..................93 MAC Filtering ....................94 All MAC Addresses ..................95 Power over Ethernet................ 97 Factory Default................98 Save Configuration................

  • Page 7: Introduction

    Introduction Power-over-Ethernet (PoE) eliminates the need to run VAC power to other devices on a wired LAN. Using Power-over-Ethernet system installers needs to run only a single Category 5 Ethernet cable that carries both power and data to each device. This allows greater flexibility in the locating of network devices and significantly decreasing installation costs in many cases.

  • Page 8: Features

    Features System Interface/Performance RJ-45 ports support Auto MDI/MDI-X Function Embedded 8-port PoE injector function Store-and-Forward Switching Architecture Back-plane (Switching Fabric): 5.6Gbps 1Mbits Packet Buffer 8K MAC Address Table VLAN Port Based VLAN Support 802.1 Q Tag VLAN GVRP Port Trunk with LACP QoS (Quality of Service) Support IEEE 802.1p Class of Service Per port provides 4 priority queues...

  • Page 9: Software Feature

    Provide redundant backup feature and the recovery time below 300ms Bandwidth Control Ingress Packet Filter and Egress Rate Limit Broadcast/Multicast Packet Filter Control System Event Log System Log Server/Client SMTP e-mail Alert SNMP Trap Device cold start Authentication failure X-ring topology changed Port Link up/Link down TFTP Firmware Update and System Configure Restore and Backup Software Feature...
  • Page 10 Port based VLAN IEEE802.1Q Tag VLAN(256 entries) / VLAN ID(Up VLAN to 4K, VLAN ID can be assigned from 1 to 4094) GVRP (256 Groups) Port Trunk with LACP Port Trunk: 4 trunk groups of maximum 4 LACP trunk members IEEE802.1d Spanning tree Spanning Tree IEEE802.1w Rapid spanning tree...
  • Page 11 Supports 10 IP addresses that have permission to IP Security access the switch management to prevent unauthorized intruder Supports ingress packet filter and egress packet limit The egress rate control supports all of packet type and the limit rates are 100Kbps (10/100) and 256Mbps (1000) Bandwidth Ingress filter packet type combination rules are...

  • Page 12: Package Contents

    DHCP Client DHCP DHCP Server Provides DNS client feature and supports Primary and Secondary DNS server Supports Simple Network Time Protocol to SNTP synchronize system clock in Internet Firmware Supports TFTP firmware upgrade Upgrade Configuration Supports binary format configuration file for system Upload and quick installation (TFTP backup and restore) Download...
  • Page 13 8 10/100TX plus 2 Gigabit copper/MINI-GBIC Combo with 8 PoE Injectors Managed Four Rubber Pads RS-232 cable Power Cord User Manual Compare the contents of the package with the standard checklist above. If any item is missing or damaged, please contact the local dealer for exchanging.

  • Page 14: Hardware Description

    Hardware Description This section mainly describes the hardware of the PoE Injector Managed Switch and gives a physical and functional overview on the certain switch. Physical Dimension 8 10/100TX + 2 Gigabit copper/Mini-GBIC Combo with 8 PoE Injectors Managed Switch’s physical dimensions is 270mm(W) x 210mm(D) x 44mm(H). Front Panel The front panel of the 8 10/100TX + 2 Gigabit copper/Mini-GBIC Combo with 8 PoE Injectors Managed Switch consists of 8 x 10/100Base-TX RJ-45 Ethernet ports (Auto...

  • Page 15: Led Indicators

    crossover cabling. 2 Gigabit Ethernet port: 2 x 10/100/1000TX N-Way auto-sensing for 10/100/1000 connection. 2 Mini-GBIC port: 2 mini-GBIC ports for Gigabit or 100M fiber connection. LED Indicators The LED Indicators display real-time information of systematic operation status. The following table provides descriptions of LED status and their meaning. Status Description Green...

  • Page 16: Rear Panel

    Green The port is operating at speed of 100M 100M The port is disconnected or not operating at speed of 100M Green Connected to network LK/ACT Blinking Networking is active (MINI GBIC 9, 10) Not connected to network Rear Panel The 3-pronged power plug and terminal block are located on the rear panel of the 8 10/100TX + 2 Gigabit copper/Mini-GBIC Combo with 8 PoE Injectors Managed Switch as shown below.

  • Page 17: Attaching Rubber Pads

    where you put the switch should be clean, smooth, level and sturdy. Make sure there is enough clearance around the switch to allow attachment of cables, power cord and allow air circulation. Attaching Rubber Pads Make sure mounting surface on the bottom of the switch is grease and dust free. Remove adhesive backing from your Rubber Pads.

  • Page 18: Network Application

    Network Application This section provides a few samples of network topology in which the switch is used. In general, the PoE Injector Managed Switch is designed as a segment switch which has large address table (8k MAC addresses) and high performance to deal with interconnecting networking segments.

  • Page 19: Small Workgroup

    Power over Ethernet Switch network application Small Workgroup The PoE Injector Managed Switch can be used as a standalone switch to which personal computers, server, printer server, are directly connected to form a small workgroup.

  • Page 20: Segment Bridge

    Small Workgroup application Segment Bridge For enterprise networks where large data broadcasts are constantly processed, this switch is an ideal solution for department users to connect to the corporate backbone. In the illustration below, two Ethernet switches with PCs, print server, and local server attached, are both connected to the switch.
  • Page 21 Segment Bridge application...

  • Page 22: Console Management

    Console Management Login in the Console Interface When the connection between switch and PC is ready, turn on the PC and run a terminal emulation program or Hyper Terminal and configure its communication parameters to match the following default characteristics of the console port: Baud Rate: 9600 bps Data Bits: 8 Parity: none...

  • Page 23: Cli Management

    Console login screen CLI Management The system supports console management – CLI command. After you login to the system, you will see a command prompt. To enter CLI management interface, enter “enable” command. The following table lists the CLI commands and description.

  • Page 24: Commands Level

    CLI command interface Commands Level Access Exit Modes Prompt About This Mode1 Method Method The user commands available at the user level are a subset of Begin a Enter those available at the User session with switch> logout or privileged level. EXEC your switch.
  • Page 25 EXEC mode. • Display advanced function status • Save configuration Enter the To exit to Use this mode to configure privileged Global command switch EXEC configure parameters Configura while in (config)# mode, that apply to your tion privileged enter exit or switch as a whole.

  • Page 26: Commands Set List

    Commands Set List User EXEC Privileged EXEC Global configuration VLAN database Interface configuration System Commands Set Netstar Commands Level Description Example show config Show switch switch>show config configuration show terminal Show console switch#show terminal information write memory Save user switch#write memory configuration into permanent memory (flash rom)
  • Page 27 [Gateway] ip dhcp Enable DHCP client switch(config)#ip dhcp function of switch show ip Show IP information of switch#show ip switch no ip dhcp Disable DHCP client switch(config)#no ip dhcp function of switch reload Halt and perform a cold switch(config)#reload restart default Restore to default switch(config)#default...
  • Page 28 [IP address] clients by port fastEthernet 2 switch(config)#dhcpserver ipbinding 192.168.1.1 show dhcpserver Show configuration of switch#show dhcpserver configuration DHCP server configuration show dhcpserver clients Show client entries of switch#show dhcpserver clients DHCP server show dhcpserver Show IP-Binding switch#show dhcpserver ip-binding information of DHCP ip-binding server...

  • Page 29: Port Commands Set

    Port Commands Set Netstar Commands Level Description Example interface fastEthernet Choose the port for switch(config)#interface [Portid] modification. fastEthernet 2 duplex Use the duplex switch(config)#interface [full | half] configuration fastEthernet 2 command to specify switch(config-if)#duplex full the duplex mode of operation for Fast Ethernet.
  • Page 30 bandwidth type Set interface ingress switch(config)#interface broadcast-multicast-floo limit frame type to fastEthernet 2 ded-unicast ‘accept broadcast, switch(config-if)#bandwidth type multicast, and flooded broadcast-multicast-flooded-uni unicast frame’ cast bandwidth type Set interface ingress switch(config)#interface broadcast-multicast limit frame type to fastEthernet 2 ‘accept broadcast and switch(config-if)#bandwidth type multicast frame’...

  • Page 31: Trunk Commands Set

    state Use the state interface switch(config)#interface [Enable | Disable] configuration fastEthernet 2 command to specify switch(config-if)#state Disable the state mode of operation for Ethernet ports. Use the disable form of this command to disable the port. show interface show interface switch(config)#interface configuration configuration status...
  • Page 32 [GroupID] [Port-list] with LACP active. 1 1-4 lacp workp 2 lacp [GroupID] :1~4 workp [Port-list]:Member port switch(config)#aggregator group [Workport] list, This parameter 2 1,4,3 lacp workp 3 could be a port range(ex.1-4) or a port list separate by a comma(ex.2, 3, 6) [Workport]: The amount of work ports, this value could not be...

  • Page 33: Vlan Commands Set

    VLAN Commands Set Netstar Commands Level Description Example vlan database Enter VLAN configure switch#vlan database mode Vlanmode To set switch VLAN switch(vlan)#vlanmode portbase [portbase| 802.1q | mode. gvrp] switch(vlan)#vlanmode 802.1q switch(vlan)#vlanmode gvrp no vlan No VLAN Switch(vlan)#no vlan Ported based VLAN configuration vlan port-based Add new port based switch(vlan)#vlan port-based...
  • Page 34 port belong to a trunk group, this command can’t be applied. vlan 8021q port Assign a trunk link for switch(vlan)#vlan 8021q port 3 [PortNumber] VLAN by port, if the trunk-link tag 2,3,6,99 trunk-link tag [TaggedVID List] port belong to a trunk group, this command switch(vlan)#vlan 8021q port 3 can’t be applied.

  • Page 35: Spanning Tree Commands Set

    Spanning Tree Commands Set Netstar Commands Level Description Example spanning-tree enable Enable spanning tree switch(config)#spanning-tree enable spanning-tree priority Configure spanning switch(config)#spanning-tree [0~61440] tree priority parameter priority 32767 spanning-tree max-age Use the spanning-tree switch(config)#spanning-tree [seconds] max-age global max-age 15 configuration command to change the interval between messages the spanning tree receives...
  • Page 36 forward-time [seconds] forward-time global forward-time 20 configuration command to set the forwarding-time for the specified spanning-tree instances. The forwarding time determines how long each of the listening learning states last before the port begins forwarding. stp-path-cost Use the spanning-tree switch(config)#interface [1~200000000] cost interface fastEthernet 2...

  • Page 37: Qos Commands Set

    a port priority that is used when two switches tie for position as the root switch. stp-admin-p2p Admin P2P of STP switch(config)#interface [Auto|True|False] priority on this fastEthernet 2 interface. switch(config-if)#stp-admin-p2p Auto stp-admin-edge Admin Edge of STP switch(config)#interface [True|False] priority on this fastEthernet 2 interface.

  • Page 38: Igmp Commands Set

    qos priority cos Configure COS Priority switch(config)#qos priority cos 0 [Priority][lowest|low|mid middle dle|high] Configure TOS Priority switch(config)#qos priority tos 3 qos priority tos high [Priority][lowest|low|mid dle|high] Switch#show qos show qos Displays the information of QoS configuration Disable QoS function switch(config)#no qos no qos IGMP Commands Set Netstar Commands...

  • Page 39: Snmp Commands Set

    hwaddr address table of fastEthernet 2 [MAC] interface (static). switch(config-if)#mac-address-tab le static hwaddr 000012345678 mac-address-table filter Configure MAC switch(config)#mac-address-table hwaddr address table(filter) filter hwaddr 000012348678 [MAC] show mac-address-table Show all MAC address switch#show mac-address-table table show mac-address-table Show static MAC switch#show mac-address-table static address table...
  • Page 40 snmp agent-mode Select the agent mode switch(config)#snmp agent-mode [v1v2c|v3|v1v2cv3] of SNMP v1v2cv3 snmp Add SNMP community switch(config)#snmp community-strings string. community-strings public right [Community] right [RO/RW] snmp-server host Configure SNMP switch(config)#snmp-server host [IP address] server host information 192.168.1.50 community public community and community string trap-version v1 [Community-string]...
  • Page 41 match-rule [Exact|Prifix] views [Read View Name] [Write View Name] [Notify View Name] snmpv3 mibview view Configure the mibview switch(config)#snmpv3 mibview [View Name] table of SNMPV3 view V1 type Excluded sub-oid type agent 1.3.6.1 [Excluded|Included] sub-oid [OID] show snmp Show SNMP switch#show snmp configuration no snmp...

  • Page 42: Port Mirroring Commands Set

    [Read View Name] [Write View Name] [Notify View Name] no snmpv3 mibview Remove specified switch(config)#no snmpv3 view mibview table of mibview view V1 type Excluded [View Name] SNMPV3 agent. sub-oid 1.3.6.1 type [Excluded|Included] sub-oid [OID] Port Mirroring Commands Set Netstar Commands Level Description Example monitor rx...
  • Page 43 8021x enable Use the 802.1x global switch(config)# 8021x enable configuration command to enable 802.1x protocols. 8021x system radiusip Use the 802.1x system switch(config)# 8021x system [IP address] radius IP global radiusip 192.168.1.1 configuration command to change the radius server IP. 8021x system serverport Use the 802.1x system switch(config)# 8021x system...
  • Page 44 8021x misc quietperiod Use the 802.1x misc switch(config)# 8021x misc [sec.] quiet period global quietperiod 10 configuration command to specify the quiet period value of the switch. 8021x misc txperiod Use the 802.1x misc switch(config)# 8021x misc [sec.] TX period global txperiod 5 configuration command to set the...

  • Page 45: Tftp Commands Set

    [disable | reject | accept | state interface fastethernet 3 authorize] configuration switch(config-if)#8021x portstate command to set the accept state of the selected port. show 8021x Displays a summary of switch>show 8021x the 802.1x properties and also the port sates. no 8021x Disable 802.1x switch(config)#no 8021x...

  • Page 46: Systemlog, Smtp And Event Commands Set

    SystemLog, SMTP and Event Commands Set Netstar Commands Level Description Example systemlog ip Set System log server switch(config)# systemlog ip [IP address] IP address. 192.168.1.100 systemlog mode Specified the log mode switch(config)# systemlog mode [client|server|both] both show systemlog Displays system log. Switch>show systemlog show systemlog Show system log client...

  • Page 47: Sntp Commands Set

    event Set X-ring topology switch(config)#event X-ring-topology-change changed event type X-ring-topology-change both [Systemlog|SMTP|Both] event systemlog Set port event for switch(config)#interface [Link-UP|Link-Down|Bot system log fastethernet 3 switch(config-if)#event systemlog both event smtp Set port event for switch(config)#interface [Link-UP|Link-Down|Bot SMTP fastethernet 3 switch(config-if)#event smtp both show event Show event selection switch#show event no event...
  • Page 48 sntp daylight Enable daylight saving switch(config)#sntp daylight time, if SNTP function is inactive, this command can’t be applied. sntp daylight-period Set period of daylight switch(config)# sntp [Start time] [End time] saving time, if SNTP daylight-period 20060101-01:01 function is inactive, 20060202-01-01 this command can’t be applied.

  • Page 49: X-Ring Commands Set

    no sntp daylight Disable daylight saving switch(config)#no sntp daylight time X-ring Commands Set Netstar Commands Level Description Example Xring enable Enable X-ring switch(config)#Xring enable Xring master Enable ring master switch(config)#Xring master Xring couplering Enable couple ring switch(config)#Xring couplering Xring dualhoming Enable dual homing switch(config)#Xring dualhoming Xring ringport...

  • Page 50: Web-Based Management

    Web-Based Management This section introduces the configuration and functions of the Web-Based management. About Web-based Management On the CPU board of the switch there is an embedded HTML web site residing in flash memory, which offers advanced management features and allow users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.

  • Page 51: System Information

    Key in “http://” + “IP Address” of the Switch, and then press “Enter” Login screen will appear right after Key in the user name and password. The default user name and password is “root” Click “Enter” or” OK”, then the home screen of the Web-based management appears right after Main interface System Information...

  • Page 52: Ip Configuration

    MAC Address: Displays the unique hardware address assigned by manufacturer (default) And than, click Apply IP Configuration User can configure the IP Settings and DHCP client function DHCP: Disable or enable the DHCP client function IP Address: Assign the switch IP address. The default IP is 192.168.16.1 Subnet Mask: Assign the switch IP subnet mask Gateway: Assign the switch gateway.

  • Page 53: Dhcp Configuration

    IP Configuration interface DHCP Configuration DHCP is the abbreviation of Dynamic Host Configuration Protocol that is a protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device's IP address can even change while it is still connected.

  • Page 54: Dhcp Client Entries

    High IP Address: The dynamic IP range. High IP address is the end of the dynamic IP range. For example: dynamic IP range is from 192.168.1.100 ~ 192.168.1.200. In comparison, 192.168.1.200 is the High IP address Subnet Mask: The dynamic IP assign range subnet mask Gateway: The gateway in your network DNS: The IP Address of the Domain Name Server in your network Lease Time (sec): It is the time period that system will reset the dynamic IP...

  • Page 55: Port And Ip Bindings

    DHCP Client Entries interface Port and IP Bindings Assign the dynamic IP address to the port. When the device is connecting to the port and asks for IP assigning, the system will assign the IP address that has been assigned before to the connected device.

  • Page 56: Tftp - Restore Configuration

    It provides the functions that allow user to update the switch firmware. Before updating, make sure the TFTP server is ready and the firmware image is on the TFTP server. TFTP Server IP Address: Key in the TFTP server IP Firmware File Name: The name of firmware image And then, click Apply...

  • Page 57: System Event Log Configuration

    restore configuration page to restore the EEPROM value. TFTP Server IP Address: Key in the TFTP server IP Backup File Name: Key in the file image name And then, click Apply Backup Configuration interface System Event Log Configuration Configure the system event mode, which you want to collect, and system log server IP. System Log Client Mode: Select the system log mode –...

  • Page 58: System Event Log - Smtp Configuration

    System Log Configuration interface System Event Log - SMTP Configuration You can set up the mail server IP, mail account, account password, and forwarded email account for receiving the event alert. Email Alert: enable or disable the email alert function. SMTP Server IP: set up the mail server IP address (when Email Alert enabled, this function will then be available).
  • Page 59 available). Mail Account: set up the email account, e.g. johnadmin, to receive the alert. It must be an existing email account on the mail server, which you had set up in SMTP Server IP Address column. Password: The email account password. Confirm Password: reconfirm the password.

  • Page 60: System Event Log - Event Configuration

    System Event Log - Event Configuration Select the system log and SMTP events. When selected events occur, the system will result the log information. Also, per port log and SMTP events can be selected. System event selection: 4 selections – Device cold start, Device warm start, SNMP Authentication Failure, and X - ring topology change.
  • Page 61 Event Configuration interface Port event selection: Select the per port events and per port SMTP events. It has 3 selections – Link UP, Link Down, and Link UP & Link Down. Disable means no event is selected Link UP: The system will result a log message when port connection is up only Link Down: The system will result a log message when port connection is down only Link UP &...

  • Page 62: Sntp Configuration

    SNTP Configuration You can configure the SNTP (Simple Network Time Protocol) settings. The SNTP allows you to synchronize switch clocks in the Internet. SNTP Client: enable or disable SNTP function to get the time from the SNTP server. Daylight Saving Time: enable or disable daylight saving time function. When daylight saving time is enabling, you need to configure the daylight saving time period.
  • Page 63 ALA - Alaskan Standard -9 hours 3 am HAW - Hawaiian -10 hours 2 am Standard Nome, Alaska -11 hours 1 am CET - Central European FWT - French Winter MET - Middle European +1 hour 1 pm MEWT - Middle European Winter SWT - Swedish Winter EET - Eastern European,...

  • Page 64: Ip Security

    IDLE - International Date Line NZST - New Zealand +12 hours Midnight Standard NZT - New Zealand SNTP Sever URL: set the SNTP server IP address. Daylight Saving Period: set up the Daylight Saving beginning time and Daylight Saving ending time. Both will be different in every year. Daylight Saving Offset (mins): set up the offset time.
  • Page 65 to access the switch through the web browser for the securing switch management. IP Security Mode: when this option is in Enable mode, the Enable HTTP Server and Enable Telnet Server check boxes will then be available. Enable HTTP Server: when this check box is checked, the IP addresses among Security IP1 ~ IP10 will be allowed to access via HTTP service.

  • Page 66: User Authentication

    User Authentication You can change login user name and password for the management security issue User name: Key in the new user name (The default is ‘root’) Password: Key in the new password (The default is ‘root’) Confirm password: Re-type the new password And then, click Apply User Authentication interface...

  • Page 67: Port Control

    Rx Bcast Packet: The counts of broadcast packet. Rx Mcast Packet: The counts of multicast packet. Click button to clean all counts. Clear Port Statistics interface Port Control In Port control, you can view every port status that depends on user setting and the negotiation result.

  • Page 68: Port Trunk

    Port Control interface Port Trunk The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems on a link to allow their Link Aggregation Control instances to reach agreement on the identity of the Link Aggregation Group to which the link belongs, move the link to that Link Aggregation Group, and enable its transmission and reception functions in an orderly manner.
  • Page 69 Group ID: There are four trunk groups to provide configuration. Choose the "Group ID" and click Select LACP: If enable, the group is LACP static trunk group. If disable, the group is local static trunk group. All ports support LACP dynamic trunk group. While connecting to the device that also supports LACP, the LACP dynamic trunk group will be created automatically.

  • Page 70: Port Trunk - Aggregator Information

    Port Trunk—Aggregator Setting interface Port Trunk - Aggregator Information When you have setup the aggregator setting with LACP disabled, you will see the local static trunk group information here. Port Trunk – Aggregator Information interface...

  • Page 71: Port Trunk - State Activity

    Port Trunk - State Activity When you had setup the LACP aggregator, you can configure port state activity. You can mark or un-mark the port. When you mark the port and click button the port Apply state activity will change to Active. Opposite is Passive. Active: The port automatically sends LACP protocol packets.

  • Page 72: Rate Limiting

    The Port mirroring is a method for monitor traffic in switched networks. Traffic through ports can be monitored via one specific port. That means traffic goes in or out monitored (source) ports will be duplicated into mirror (destination) port. Destination Port: You can select one port to be the destination (mirror) port for monitoring both RX and TX traffic which come from source port.
  • Page 73 have 4 options for selecting: All, Broadcast/Multicast/Flooded Unicast, Broadcast/Multicast and Broadcast only. Broadcast/Multicast/Flooded Unicast, Broadcast/Multicast and Bbroadcast only types are only for ingress frames. The egress rate only supports All type. Rate Limiting interface All the ports support port ingress and egress rate control. For example, assume port 1 is 10Mbps, users can set it’s effective egress rate as 1Mbps, ingress rate as 500Kbps.

  • Page 74: Vlan Configuration

    VLAN configuration A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would allow you to isolate network traffic, so only the members of the same VLAN will receive traffic from each other. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch.
  • Page 75 on not only default PVID but also other information about the packet, such as the protocol. VLAN – Port Based interface Click to add a new VLAN group (The maximum VLAN group is up to 256 VLAN groups) Entering the VLAN name, group ID and grouping the members of VLAN group And then, click Apply...
  • Page 76 VLAN—Port Based Add interface You will see the VLAN displays. button to delete unwanted VLAN. Delete button to modify existing VLAN group. Edit Note Remember to execute the ‘Save Configuration’ action, otherwise the new configuration will lose when switch power off.

  • Page 77: 802.1Q Vlan

    802.1Q VLAN Tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers.

  • Page 78: 802.1Q Configuration

    802.1q VLAN interface 802.1Q Configuration Enable GVRP Protocol: Mark the check box to enable GVRP protocol. Select the port that you want to configure. Link Type: Access Link: Single switch only, allows user to group ports by setting the same VID to those ports.

  • Page 79: Group Configuration

    Untagged VID: Assign the untagged frame VID. Tagged VID: Assign the tagged frame VID. Click Apply Group Configuration Edit the existing VLAN Group. Select the VLAN group in the table list. Click Apply Group Configuration interface You can Change the VLAN group name and VLAN ID. Click Apply...

  • Page 80: Rapid Spanning Tree

    Group Configuration interface Rapid Spanning Tree The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and provides for faster spanning tree convergence after a topology change. The system also supports STP and the system will automatically detect the connected device that is running STP or RSTP protocol.
  • Page 81 Max Age (6-40): The number of seconds a bridge waits without receiving Spanning-tree Protocol configuration messages before attempting reconfiguration. Enter a value between 6 through 40 Hello Time (1-10): The time that controls switch sends out the BPDU packet to check RSTP current status.

  • Page 82: Rstp - Port Configuration

    RSTP - Port Configuration You can configure the path cost and priority of every port. Select the port in Port column. Path Cost: The cost of the path to the other bridge from this transmitting bridge at the specified port. Enter a number 1 through 200000000. Priority: Decide which port should be blocked by priority in LAN.

  • Page 83: Snmp Configuration

    RSTP Port Configuration interface SNMP Configuration Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.
  • Page 84 String: Fill the name of string. RO: Read only. Enables requests accompanied by this string to display MIB-object information. RW: Read & write. Enables requests accompanied by this string to display MIB-object information and to set MIB objects. Click To remove the community string, select the community string that you have defined and click .

  • Page 85: Trap Configuration

    Trap Configuration A trap manager is a management station that receives traps and the system alerts generated by the switch. If no trap manager is defined, no traps will issue. Create a trap manager by entering the IP address of the station and a community string. To define management stations as trap manager, enter SNMP community strings and selects the SNMP version.
  • Page 86 Configure the SNMP V3 function. Context Table Configure SNMP v3 context table. Assign the context name of context table. Click to add context name. Click to remove unwanted context name. Remove User Profile Configure SNMP v3 user table.. User ID: Set up the user name. Authentication Password: Set up the authentication password.
  • Page 87 SNMP V3 configuration interface...
  • Page 88 Group Table Configure SNMP v3 group table. Security Name (User ID): Assign the user name that you have set up in user table. Group Name: Set up the group name. Click to add context name. Click to remove unwanted context name. Remove Access Table Configure SNMP v3 access table.

  • Page 89: Qos Configuration

    Click to add context name. Click to remove unwanted context name. Remove QoS Configuration You can configure QoS policy and priority setting, per port priority setting, COS and TOS setting. QoS Policy and Priority Type Qos Policy: select the QoS policy rule. Using the 8,4,2,1 weight fair queue scheme: The switch will follow 8:4:2:1 rate to process priority queue from High to lowest queue.
  • Page 90 rule. Click Apply QoS Configuration interface...

  • Page 91: Port Base Priority

    Port Base Priority Configure per port priority level. Port: Each port has 4 priority levels – High, Middle, Low, and Lowest. Click Apply COS Configuration Set up the COS priority level. COS priority: Set up the COS priority level 0~7 –High, Middle, Low, Lowest. Click Apply TOS Configuration...
  • Page 92 that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch. IGMP have three fundamental types of message as follows: Message Description A message sent from the querier (IGMP router or switch) Query asking for a response from each host belonging to the multicast group.
  • Page 93 IGMP Configuration interface...

  • Page 94: X-Ring

    X-Ring X-Ring provides a faster redundant recovery than Spanning Tree topology. The action is similar to STP or RSTP, but the algorithms not the same. In the X-Ring topology, every switch should enable X-Ring function and assign two member ports in the ring. Only one switch in the X-Ring group would be set as a master switch that would be blocked, called backup port, and another port is called working port.
  • Page 95 Once its forwarding port fails, the system will automatically upgrade its blocking port to be the forwarding port of the Ring Master switch. Enable Coupling Ring: Enable the coupling ring function. Mark the check box to enable the coupling ring function. Coupling port: Assign the member port which is connected to the other ring group.

  • Page 96: 802.1X/Radius Configuration

    Security In this section, you can configure 802.1x and MAC address table. 802.1X/Radius Configuration 802.1x is an IEEE authentication specification prevents the client from connecting to a wireless access point or wired switch until it provides authority, like the user name and password that are verified by an authentication server.

  • Page 97: 802.1X Per Port Configuration

    802.1x System Configuration interface 802.1x Per Port Configuration You can configure 802.1x authentication state for each port. The State provides Disable, Accept, Reject and Authorize. Hit “Space” key to change the state value. Reject: The specified port is required to be held in the unauthorized state. Accept: The specified port is required to be held in the Authorized state.

  • Page 98: Misc Configuration

    802.1x Per Port Setting interface Misc Configuration Quiet Period: Set the period which the port doesn’t try to acquire a supplicant. TX Period: Set the period the port waits for retransmit next EAPOL PDU during an authentication session. Supplicant Timeout: Set the period of time the switch waits for a supplicant response to an EAP request.

  • Page 99: Mac Address Table

    Click Apply 802.1x Misc Configuration interface MAC Address Table Use the MAC address table to ensure the port security. Static MAC Address You can add a static MAC address; it remains in the switch's address table, regardless of whether the device is physically connected to the switch. This saves the switch from having to re-learn a device's MAC address when the disconnected or powered-off device is active on the network again.

  • Page 100: Mac Filtering

    Click If you want to delete the MAC address from filtering table, select the MAC address and click Delete Static MAC Addresses interface MAC Filtering By filtering MAC address, the switch can easily filter pre-configured MAC address and reduce the un-safety. You can add and delete filtering MAC address.

  • Page 101: All Mac Addresses

    MAC Filtering interface MAC Address: Enter the MAC address that you want to filter. Click If you want to delete the MAC address from filtering table, select the MAC address and click Delete All MAC Addresses You can view the port information of the connected device’s MAC address and related devices’...
  • Page 102 All MAC Address interface...

  • Page 103: Power Over Ethernet

    Power over Ethernet This segment shows the Power over Ethernet function. PoE Status Maximum Power Available: Displays the maximum power supply in Watt. Actual Power Consumption: This column shows the real-time total power consumption. Power Source: This column shows the power source which is supplying. Power Source 1 (AC): This column shows the supplying power value of power source 1.

  • Page 104: Factory Default

    certain period (for details, see the IEEE 802.3af specification). Capacitive Detection: If the port and capacitive detection are enabled, the capacitances state reads in the voltage result from the constant current. This is the subtracted from the pre-capacitance voltage to get a charge rate. If this charge rate is within the window of the PD signatures, the device is considered to be discovered.

  • Page 105: Save Configuration

    Factory Default interface Save Configuration Save all configurations that you have made in the system. To ensure the all configuration will be saved. Click to save the all configuration to the flash memory. Save Save Configuration interface System Reboot Reboot the switch in software reset. Click to reboot the system.

  • Page 106: Troubleshooting

    Troubleshooting This section is intended to help solve the most common problems on the PoE Injector Managed Switch. Incorrect connections The switch port can automatically detect straight or crossover cable when you link switch with other Ethernet device. For the RJ-45 connector should use correct UTP or STP cable, 10/100Mbps port use 2-pairs twisted cable and Gigabit 1000T port use 4 pairs twisted cable.

  • Page 107: Improper Network Topologies

    Improper Network Topologies It is important to make sure that you have a valid network topology. Common topology faults include excessive cable length and too many repeaters (hubs) between end nodes. In addition, you should make sure that your network topology contains no data path loops.

  • Page 108: Technical Specification

    Technical Specification IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow control and Back pressure IEEE802.3ad Port trunk with LACP Standard IEEE802.3af Power over Ethernet Cisco Legacy PD IEEE802.1d Spanning Tree IEEE802.1w Rapid spanning tree IEEE802.1p Class of service IEEE802.1Q VLAN Tag IEEE 802.1x user authentication(Radius) System Power: (Green)
  • Page 109 Gigabit fiber: Mini-GBIC socket 100M fiber: Mini-GBIC socket Store and forward switch architecture Switch architecture System throughput up to 8.3Mpps Back-plane 5.6Gbps MAC address 8K MAC address table with Auto learning function Flash ROM 4Mbytes DRAM 32Mbytes Packet Buffer 1Mbits for packet buffer 100~240V AC Power Supply DC 48V...
  • Page 110 Dimensions 270mm(W) x 210mm(D) x 44mm(H)
