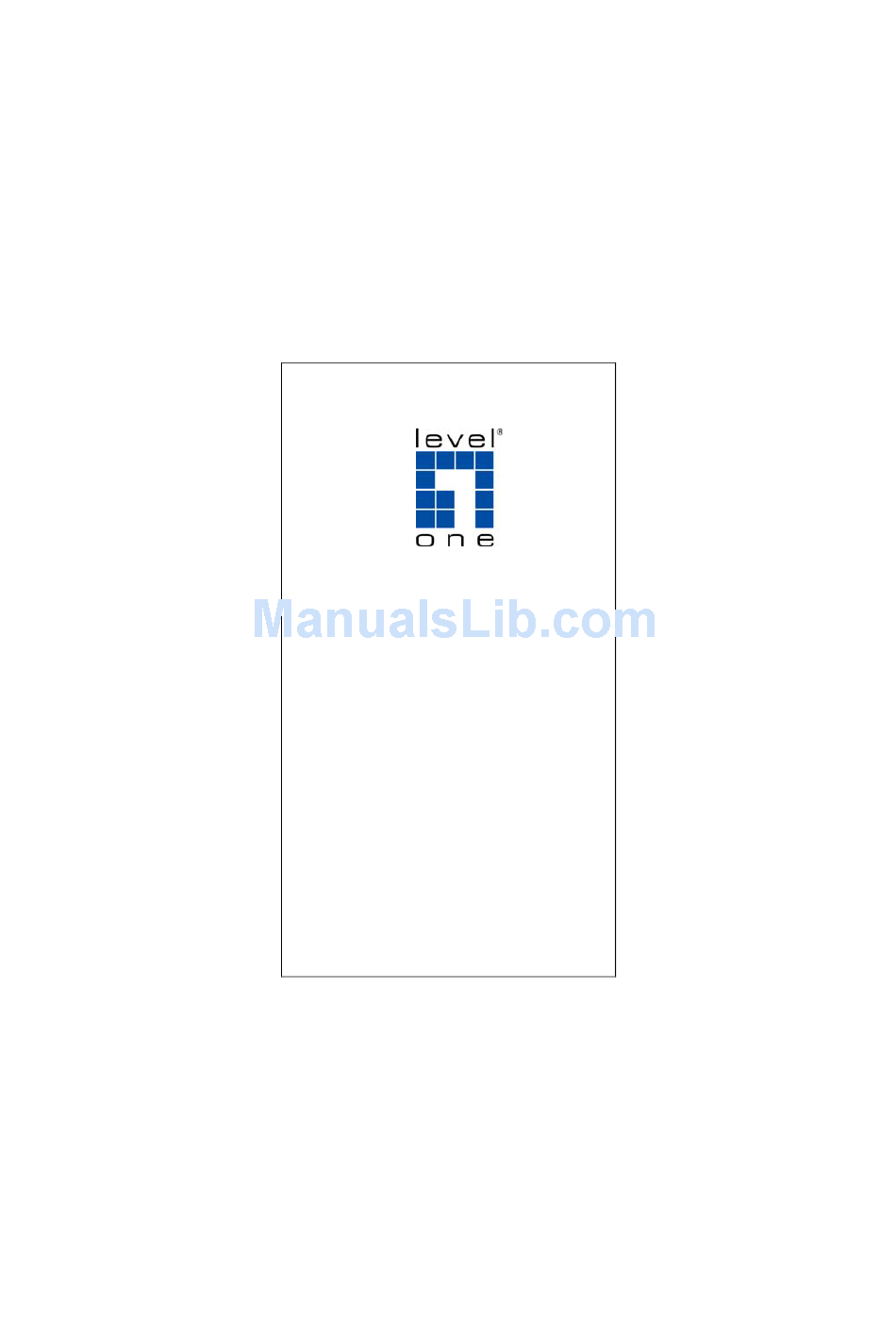

Page 1: User Manual
GSW-0508 4-Port TP + 1-Port SFP Gigabit Ethernet Switch User Manual Ver. 1.0.0-0806... -
Page 2: Fcc Certifications
FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Table Of Contents
Index Unpacking Information ..4 Introduction ....4 General Description......4 Key Features ........5 The Front Panel........ 6 The Rear Panel ......... 6 Installation ......7 Desktop Installation....... 7 Network Cables Installation..8 Port Operation ........8 Backbone Network Application.. 9 Product Specifications ..10... -
Page 4: Unpacking Information
Unpacking Information Thank you for purchasing this product. Before installation, please verify that your package contains the following items. 1. One 4-Port Gigabit Ethernet Switch with 1-Port Mini-GBIC 2. One AC power Adapter 3. User’s Manual Introduction General Description Easily boost your networking throughput; the product equips 4 Gigabit ports that lead you to a real Gigabit connection. -
Page 5: Key Features
Key Features Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1x and IEEE 802.3z standards. 4 * 10/100/1000 Mbps RJ-45 Nway ports 1* Mini-GBIC port for optional fiber optical communication Supports NWay protocol speed (10/100/1000Mbps) duplex mode (Half/Full) auto-detection Supports MDI/MDI-X auto crossover Supports full and half duplex operation on all copper ports Supports back-pressure (half duplex) and... -
Page 6: The Front Panel
The Front Panel Please refer following table definition: Status Operation Steady The switch is Green powered on Power The switch is powered off Steady Port connected Green Blinking The port is Link/Act Green transmitting/receiving data Port disconnected The Rear Panel To power on the switch, plug the female end of the power cord firmly into the receptacle of the switch and the other end into an electric service outlet. -
Page 7: Installation
Installation This switch can be placed on your desktop directly, or mounted in a rack. The installation is a snap. Users can use all the features of the switch with simply attaching the cables and turning the power Before installing the switch, we strongly recommend: The switch is placed with appropriate ventilation... -
Page 8: Network Cables Installation
Network Cables Installation 1. Crossover or straight-through cable: All ports switch support Auto-MDI/MDI-X functionality. Both straight-through or crossover cables can be used to connect the switch with PCs as well as other devices like switches, hubs or router. 2. Category 3, 4, 5 or 5e UTP/STP cable: To make a valid connection and obtain the optimal performance. -
Page 9: Backbone Network Application
the system adapts the fiber interface and disables relevant cooper port automatically. Backbone Network Application This switch is ideal for boosting the throughput of backbone. For an application sample of network topology, please refer to the following chart. -
Page 10: Product Specifications
Product Specifications IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX Standard IEEE802.3x full-duplex flow control IEEE802.3z/ab 1000BASE-T 4 *10/100/1000 Mbps auto Interface MDI/MDI-X RJ-45 switching ports 1* Mini-GBIC module sockets RJ-45 (10BASE-T): Category 3,4,5 UTP/STP RJ-45 (100BASE-TX): Category 5 Cable UTP/STP Connections RJ-45 (1000BASE-T): Category 5,5e or enhanced UTP/STP Fiber: depend on Mini-GBIC types 10/100Mbps Full-duplex,...
