IP Address Configuration
This device can be configured as a Bridge/Router or Access Point.
address of the device is 192.168.0.1. In order to log into this device, you must first
configure the TCP/IP settings of your PC/Notebook.

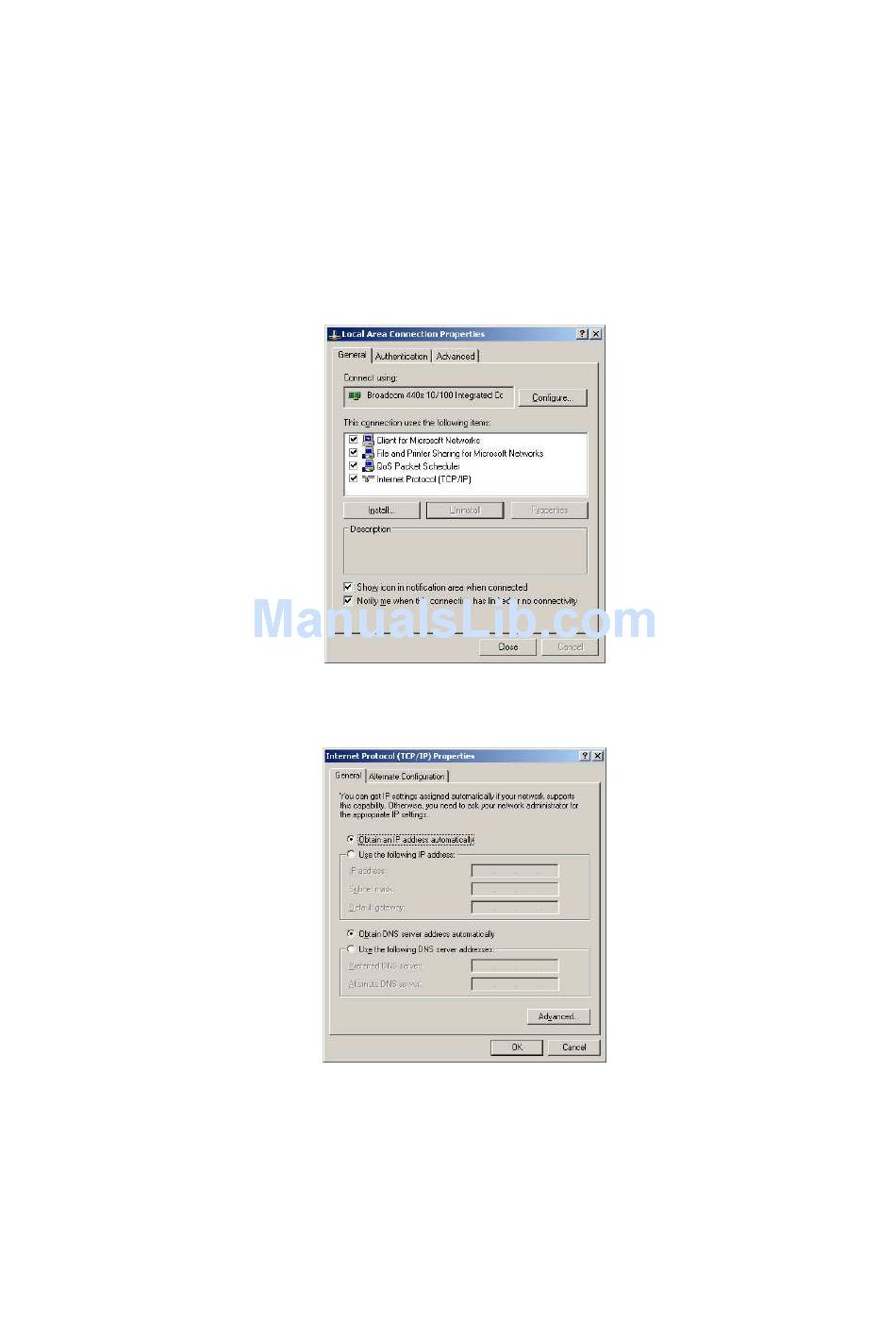

1. In the control panel, double click Network Connections and then double click
on the connection of your Network Interface Card (NIC). You will then see the
following screen.
2. Select Internet Protocol (TCP/IP) and then click on the Properties button.
This will allow you to configure the TCP/IP settings of your PC/Notebook.
Select both [Obtain an IP address automatically] and [Obtain DNS
server address automatically].
3. Click on the OK button to close this window, and once again to close LAN
properties window.
The default IP
