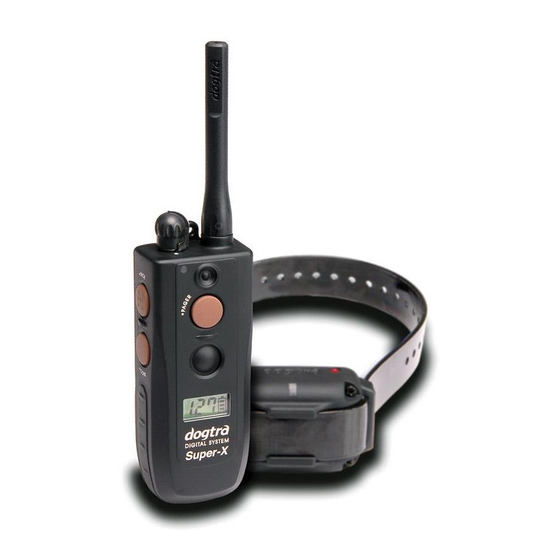

Dogtra 3500NCP Super-X Series Owner's Manual

Remote controlled dog training collars
Hide thumbs Also See for 3500NCP Super-X Series:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Enlarged version
22912 Lockness Avenue
Torrance, CA 90501
U.S.A.
telephone (310) 534 - 0101
fax
toll free
Copyright c 2007 Dogtra Company
(310) 534 - 9111
1-888 - 811-9111
2007-

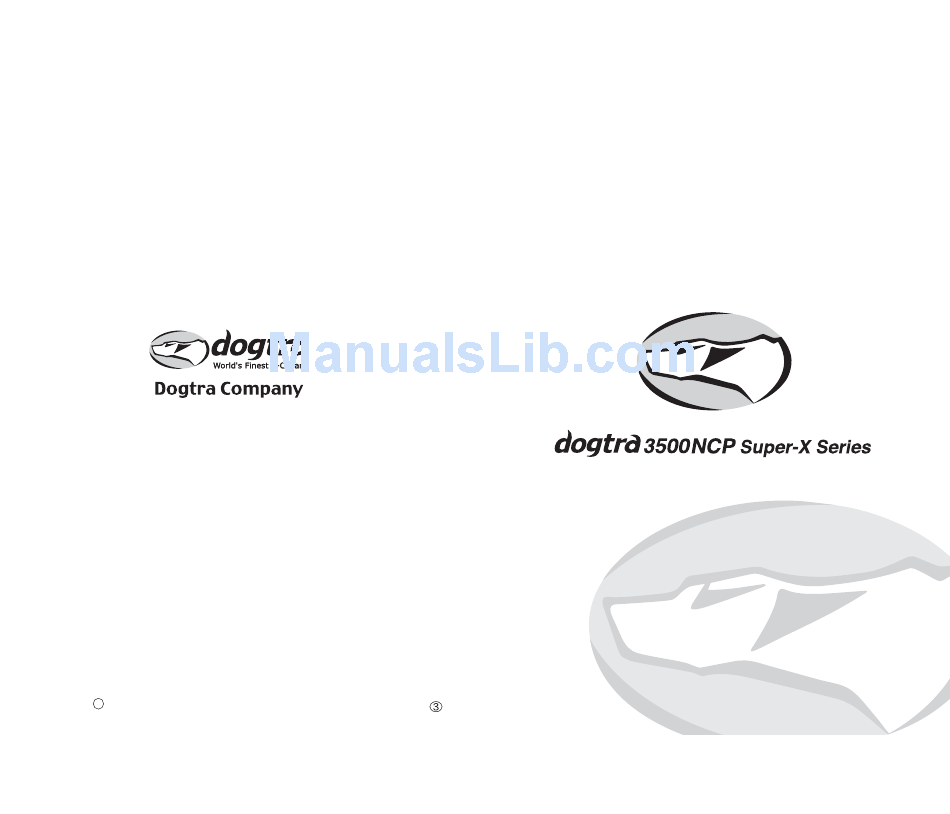

REMOTE CONTROLLED
DOG TRAINING COLLARS
www.dogtra.com
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Dogtra 3500NCP Super-X Series

Summary of Contents for Dogtra 3500NCP Super-X Series

  • Page 1 REMOTE CONTROLLED DOG TRAINING COLLARS OWNER’S MANUAL 22912 Lockness Avenue Torrance, CA 90501 U.S.A. telephone (310) 534 - 0101 (310) 534 - 9111 toll free 1-888 - 811-9111 Copyright c 2007 Dogtra Company 2007- www.dogtra.com...

  • Page 2: Table Of Contents

    CONTENTS OVERVIEW MAIN FEATURES PRODUCT SAFETY AND HEALTH STATEMENTS PACKAGE CONTENTS DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF COLLAR/RECEIVER PARTS DESCRIPTION OF BATTERY CHARGER TESTING YOUR FITTING THE COLLAR ON THE DOG CHARGING THE BATTERIES RECEPTION ACCESSORIES BASIC MAINTENANCE WARRANTY AND REPAIR INFORMATION...

  • Page 3: Overview

    MAIN FEATURES OVERVIEW MAIN FEATURES THANK YOU FOR PURCHASING THE WORLD’S FINEST DOGTRA e-COLLAR! Easy-to-use, ergonomic transmitter. Rheostat dial allows for gradual increases in Designed for X-treme training conditions stimulation intensity with no jumps between levels (0-127). The 3500NCP is labeled the Super-X because it...

  • Page 4: Product Safety And Health Statements

    PRODUCT SAFETY AND HEALTH STATEMENTS COLLAR PACKAGE CONTENTS Proper e-collar use Dogtra e-collars are intended for the sole purpose of behavior modification of dogs. They are not Transmitter intended for human use or use on other animals. Dogtra Company does not assume any liability for Receiver (two collar receivers for improper use of the Dogtra e-collar.

  • Page 5: Description Of Transmitter Parts

    DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF DESCRIPTION OF TRANSMITTER PARTS TRANSMITTER PARTS transmitter (1-dog) transmitter (2-dog) Antenna Antenna Nick/Cont. On/Off Magnatic Rheostat Toggle Switch Red Dot Rheostat On/Off Magnatic Intensity Dial Intensity Dial Red Dot ON/OFF ON/OFF Switch Indicator Light...
  • Page 6 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS 3.2 Antenna Regular/Mild Toggle Switch Transmitter Antenna A 3.2” antenna is supplied with the Regular/Mild Toggle Switch The Regular/Mild toggle switch is located on the back of the transmitter near the top. The antenna must be fastened to the transmitter before using the unit.
  • Page 7 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS display the intensity level when you have the unit set in the “regular” mode. “Mild” has 63 stimulation levels: (0) is the lowest and (L63) the highest. This feature gives the trainer a much wider range in the power band for highly sensitive dogs.
  • Page 8 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS Care for LCD Transmitters in Cold Temperature In cold temperatures (10 degrees F or below), the Liquid Crystal Display (LCD) on your transmitter may be dim or slow to respond. Wait until the display becomes visible before selecting any training level.
  • Page 9 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS Transmitter Indicator Light (LED Window) Transmitter Battery Charging Receptacle & Rubber Plug The transmitter LED indicator light is located near the Rheostat Intensity Dial. It will flash every Located on the backside of the transmitter, 4 seconds when the transmitter has been turned the charging receptacle is covered by a rubber on.

  • Page 10: Button Function

    DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS BUTTON FUNCTION “Constant” Button The “Constant” button is located on the bottom left. Pressing the “Constant” button gives (1-dog) continuous stimulation as long as the button is pushed, for up to 12 seconds. If the button is not released after 12 seconds, the stimulation will automatically turn off as a safety feature.
  • Page 11 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS setting. (2-dog) When either the orange or gray stimulation button is pressed and the toggle is set on “Nick” Nick/Cont. the receiver emits a single, rapid pulse of Toggle Switch -dog electrical stimulation. Nick &...

  • Page 12: Description Of Collar/Receiver Parts

    DESCRIPTION OF COLLAR / RECEIVER PARTS DESCRIPTION OF COLLAR / RECEIVER PARTS DESCRIPTION OF COLLAR / RECEIVER PARTS On/Off Magnetic Switch Collar strap Battery Charging Receptacle Receiver ON/OFF Magnetic Red Dot and Cover Contact Points To activate the receiver/collar, place the red dot on the back of the transmitter to the red dot on the collar/receiver.
  • Page 13 (Green = full charge, Amber = medium charge, Red = needs charge) Internal Antenna When the “Constant” button on the All Dogtra E-collars have non-exposed transmitter is pushed, the collar indicator light antennas that are located inside the will glow steadily (either green, amber, or red collar/receiver.

  • Page 14: Description Of Battery Charger

    LED same time. indicator light comes on. NOTE : Only use Dogtra-approved Lithium- 2. Place the Test light included in the package Polymer Battery Chargers for your Dogtra contents on the contact points as shown e-collar.

  • Page 15: Fitting The Collar On The Dog

    FITTING THE COLLAR ON THE DOG TESTING 3. Turn the transmitter on by pressing the blue FITTING THE COLLAR ON THE DOG button on the right side of the transmitter until the LCD screen illuminates. The LCD screen shows the amount of battery life remaining and the LED blinks once every 4 seconds.

  • Page 16: Charging The Batteries

    INTENSITY SELECTION uses Lithium- The 3500NCP Super-X series has a Rheostat Polymer batteries. Intensity Dial on the top of the transmitter. (0 is the lowest and 127 is the highest). Remember 1.
  • Page 17 Battery Charging Procedure transmitter and receiver. Note : The unit has a partial charge when it leaves the Dogtra facility, upon receipt of NOTE : Only use Dogtra-approved batteries, the collar, be sure to give it a full 2-hour chargers, and accessories for your initial charge before the first use.

  • Page 18: Reception

    (888) 811-9111. You may also browse the vary. selection at www.dogtra.com. Hold the transmitter away from your body and avoid touching the antenna, to get the European Charger greatest range.

  • Page 19: Basic Maintenance

    If you suspect your unit is malfunctioning please refer to the “Troubleshooting Guide” before you send your unit in for service. If you have any questions or concerns, you may direct your inquiries to info@dogtra.com or call (888) 811-9111.
  • Page 20 - The antenna(s) may be damaged. To order with clean water. parts please contact Customer Service at - For Dogtra units over two years old from (888) 811-9111. purchase date, batteries may be replaced when - The range indicated on the unit’s box is for having battery problems.

  • Page 21: Warranty And Repair Information

    WARRANTY AND REPAIR INFORMATION WARRANTY AND REPAIR INFORMATION applicable labor fees. Dogtra does not provide WARRANTY AND replacement on defective units or provide REPAIR INFORMATION refunds after 30 days from the original date of purchase. LIMITED LIFETIME WARRANTY All parts are covered under the warranty for (Applicable for units purchased after December the life of the product.
  • Page 22 Send repair units to: covered by Dogtra Co. within the continental United States. Any expedited shipping service will be at the owner’s expense. Dogtra is not 22912 Lockness Avenue responsible for loss of training time or Torrance, CA 90501 inconvenience while the unit is in our warehouse U.S.A.
  • Page 23 MEMO MEMO...
  • Page 24 MEMO MEMO...
