    E-Fence 3500 By Dogtra Remote Controlled Dog Training Collars CONTENTS OVERVIEW MAIN FEATURES SAFETY FEATURES PACKAGE CONTENTS DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF COLLAR PARTS CHARGING THE RECEIVER/COLLAR How th Change the Length of the Contact Points INSTALLATION ADDITIONAL PARTS...

  • Page 2: Overview

    OVERVIEW The Dogtra E-Fence 3500 system gives you the ability to allow your dog the freedom he wants within your specified boundaries. Dogtra’ s containment system contains your dog without the use of conventional fencing that can be chewed through, jumped over or dug under.

  • Page 3: Safety Features

    · Dogtra’s E-Fence 3500 system collars use state-of-the-art microcomputer technology. The receiver/collar has an automatic control that limits the stimulation to eight seconds. · Dogtra’s filtering system prevents accidental activation from outside sources other than your transmitter. PACKAGE CONTENTS ·Wall-Mount Transmitter ·Receiver/collar...

  • Page 4: Description Of Transmitter Parts

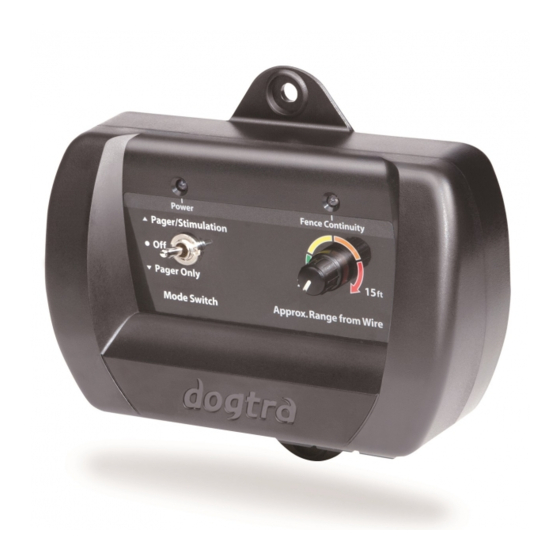

    ·Contact Point Extension Washer/Adjustment Tool(2 ea.) ·Owner’'s Manual ·Training Book Description Of Transmitter Parts...
  • Page 5 ON/OFF & Function Selection Switch The On/Off & function selection switch has three functions. When the toggle switch is in the up position, the unit will give the dog a pager/vibration followed by stimulation correction. When the toggle switch is in the down position, only a pager/vibration occurs (no stimulation).
  • Page 6 Boundary Wire Indicator Light When the wires are connected properly, the boundary wire continuity light will be on. In the event that the E-Fence 3500 wire becomes damaged or disconnected, the light will automatically turn off and the warning beep will sound.
  • Page 7 Wire Connectors For Splicing The easy-to-use push-release wire connectors let you instantly connect or disconnect the boundary wire leads. Wires should be stripped approximately a half-inch before being inserted intothe red connectors on the bottom of the wall mount transmitter. The system comes with a ground wire to protect the unit in the event of lightning/power surge.
  • Page 8 Adaptor Jack Connector Plug the 120-volt adaptor into a 120-volt wall outlet and insert the adaptor plug into the adaptor receptacle of the transmitter. Wall-Mount Transmitter Use the (2) included screws to mount the transmitter to a wall securely near an outlet. The unit will withstand freezing temperatures, but it is not waterproof.

  • Page 9: Description Of Collar Parts

    Plastic anchors have been provided to secure mounting onto drywall. Use a 1/4“drill bit to make holes into the drywall. Insert the anchors into the holes so that the open end faces out and mount the transmitter by inserting the screws into the open end of the anchors.
  • Page 10 E-Fence 3500 system is not being utilized. Receiver Indicator Light (LED) When first activating the E-Fence 3500, the LED light on the receiver/collar will illuminate for approximately 1 second to indicate that the power is on. 2 seconds after the initial light, a...
  • Page 11 If the collar is too loose, electrical contact will be inconsistent and your corrections will be inconsistent also. Dogtra uses surgical stainless steel contact points and Anti-microbial plastic to protect the...
  • Page 12 dog’ s skin. ATTENTION! Leaving the receiver/collar in the same location on the dog’s neck, for an extended period of time can cause skin irritation. If the dog is to wear the e-collar for long periods, occasionally reposition the collar so that the contact points are moved to a different location on the dog’s neck.

  • Page 13: Charging The Receiver/Collar

    The battery charger is designed for a 120-volt wall outlet (An European 220-volt AC charger is also available.). CHARGING THE RECEIVER/COLLAR Dogtra uses Lithium-Polymer batteries. 1. Charge the unit before using the unit for the first time. 2. Do not charge the batteries near any flammable substances.
  • Page 14 4. After charging, cover the battery charging receptacle with the rubber plug on the receiver/collar. Note: Only use Dogtra-approved batteries, chargers, and accessories for the E-Fence 3500. Unauthorized chargers may cause the unit to malfunction and the indicator light to blink in an amber color.

  • Page 15: How Th Change The Length Of The Contact Points

    How th Change the Length of the Contact Points The Dogtra E-Fence 3500 comes equipped with standard 5/8” contact points that can be extended to 3/4” contact points, for use with dogs with longer coats. To increase the contact point length from 5/8” to 3/4”, follow the steps below.

  • Page 16: Installation

    TESTING YOUR DOGTRA E-Fence 3500 PRIOR TO INSTALLATION 1. To ensure that your E-Fence 3500 system is working properly, connect the transmitter adaptor into the adaptor of the transmitter and then plug the adaptor into a household outlet. Switch the stimulation knob to Pager+Stimulation, or Stimulation Only. The ON/OFF indicator light should turn on.
  • Page 17 5. Watch for the test lamp to come on and/or the unit will emit the warning vibration if the unit is in this mode at the wall mount transmitter. Be careful not to touch the contact points as the unit will emit stimulation when activated. INSTALLATION Fence Wire The e-fence boundary wire must make a continuous loop around your property for the...
  • Page 18 CAUTION - Before you install your E-Fence 3500 wire, contact the utility company to mark the utility lines on your property before you begin digging. Be sure to test your wire layout above ground before permanent installation begins. Carefully choose the areas in which you want to contain your dog. A diagram may be helpful in predicting unforeseen obstacles.

  • Page 19: Additional Parts

    * Please note, the diagrams are not drawn to scale. The E-Fence-3500 system includes 500 feet of boundary wire and 50 training flags. Additional flags and wiring can be purchased through the Dogtra Company. The estimated requirements are as follows:...
  • Page 20 Tools To install your , E-Fence 3500 you will need a flat-edge spade, Phillips screwdriver and a wire cutter/stripper. If your layout calls for the wires to be connected across concrete, you will also need a caulking gun, exterior silicon caulk and a circular saw with a masonry blade for cutting the pavement.
  • Page 21 IMPORTANT : Before starting any digging, contact your local phone, gas and power companies to locate any other buried services. The E-Fence 3500 boundary wire does not have to be buried to operate. For protective measures we highly recommend the wire be buried about 3-4 inches underground.
  • Page 22 angle cut made with a flat-edge spade will be easiest to close. Note : When covering a large area, a trenching machine may be used to cut into the ground. However, it is recommended that the wire be placed in the trench by hand. A commercial wire-placing machine may damage the wire.

  • Page 23: Wire Splicing

    Do not use electrical tape, or soldered/twisted wire nuts in this type of connection as it will cause an intermittent signal or disarm the system. The waterproof splices included in the E-Fence 3500 system are designed to provide a sealed connection between the wires. The insulation on the boundary wire should not be stripped before placing wire into the holes.
  • Page 24 Connecting the Fence Wire to the Transmitter Splice the two ends of the twisted wire to each of the two ends of the fence wire. Drill a hole through the exterior wall or window/door sill or run the fence wire through an existing utility line hole.

  • Page 25: Optional Accessories

    Optional Accessories The following items may be purchased separately. To purchase accessories, please visit Dogtra's online store at or call customer service at 1-888-811-9111. Connecting a Lightning Surge Protector Plug the lightning protector into a grounded (3-wire) 120V AC outlet within five feet of...

  • Page 26: Troubleshooting

    where you want to locate the transmitter. Cut the e-fence wires near the protector and strip all four ends back ¼ inch. Push the connector tab firmly away from yourself and the connector jaws will open. Push the stripped end of the wire into the connector. TROUBLESHOOTING 1.

  • Page 27: General Maintenance Tips

    GENERAL MAINTENANCE TIPS Your system requires very little maintenance. The receiver/collar for the E-Fence 3500 system is fully waterproof. To remove dirt, simply wipe with soap and water. The wall transmitter is not waterproof and must be protected from the elements in a shed, garage or carport.
  • Page 28 circuitry that should be serviced only by an authorized expert. *Caution Any changes or modifications of this device which are not specifically approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 29 This is a sensitive radio device. Any unauthorized changes or modifications to this device that are not expressly approved by Dogtra Co.,Ltd will void the devices warranty, and might void user’s authority to operate the equipment.
  • Page 30 22912 Lockness Ave. Torrance, CA. 90501 TEL : 310-534-0101 FAX : 310-534-9111 Website : www.dogtra.com Copyright©2015 Dogtra Company All rights reserved. (1)
