1
PANEL DESCRIPTION
u 2/5TONE INDICATOR
Appears when the specified 2/5-tone call is received.
i ALPHANUMERIC DISPLAY
Displays the CH number, 5-tone indication, DTMF num-
bers, Audible indication, etc.
NOTE: When the alphanumeric display blinks and trans-
mitting becomes impossible, check that the DC battery
voltage has not dropped below 8 V or that the antenna is
not tuned properly or the antenna connection is faulty.
3

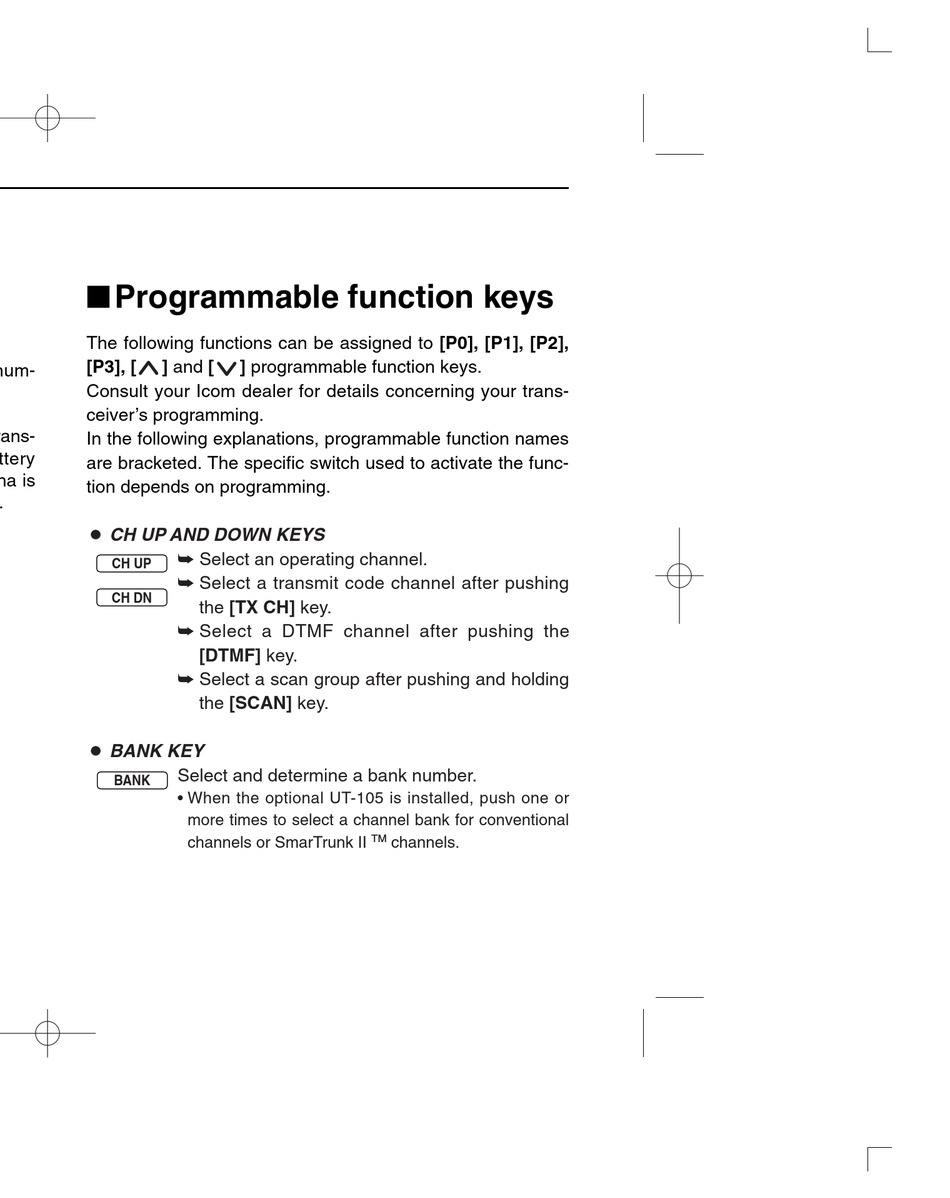

I Programmable function keys

The following functions can be assigned to [P0], [P1], [P2],
[P3], [ ] and [ ] programmable function keys.
Consult your Icom dealer for details concerning your trans-
ceiver's programming.
In the following explanations, programmable function names
are bracketed. The specific switch used to activate the func-
tion depends on programming.
¡ ¡ CH UP AND DOWN KEYS
➥ Select an operating channel.
CH UP
➥ Select a transmit code channel after pushing
CH DN
the [TX CH] key.
➥ Select a DTMF channel after pushing the
[DTMF] key.
➥ Select a scan group after pushing and holding
the [SCAN] key.
¡ ¡ BANK KEY
Select and determine a bank number.
BANK
• When the optional UT-105 is installed, push one or
more times to select a channel bank for conventional
channels or SmarTrunk II
TM
channels.
