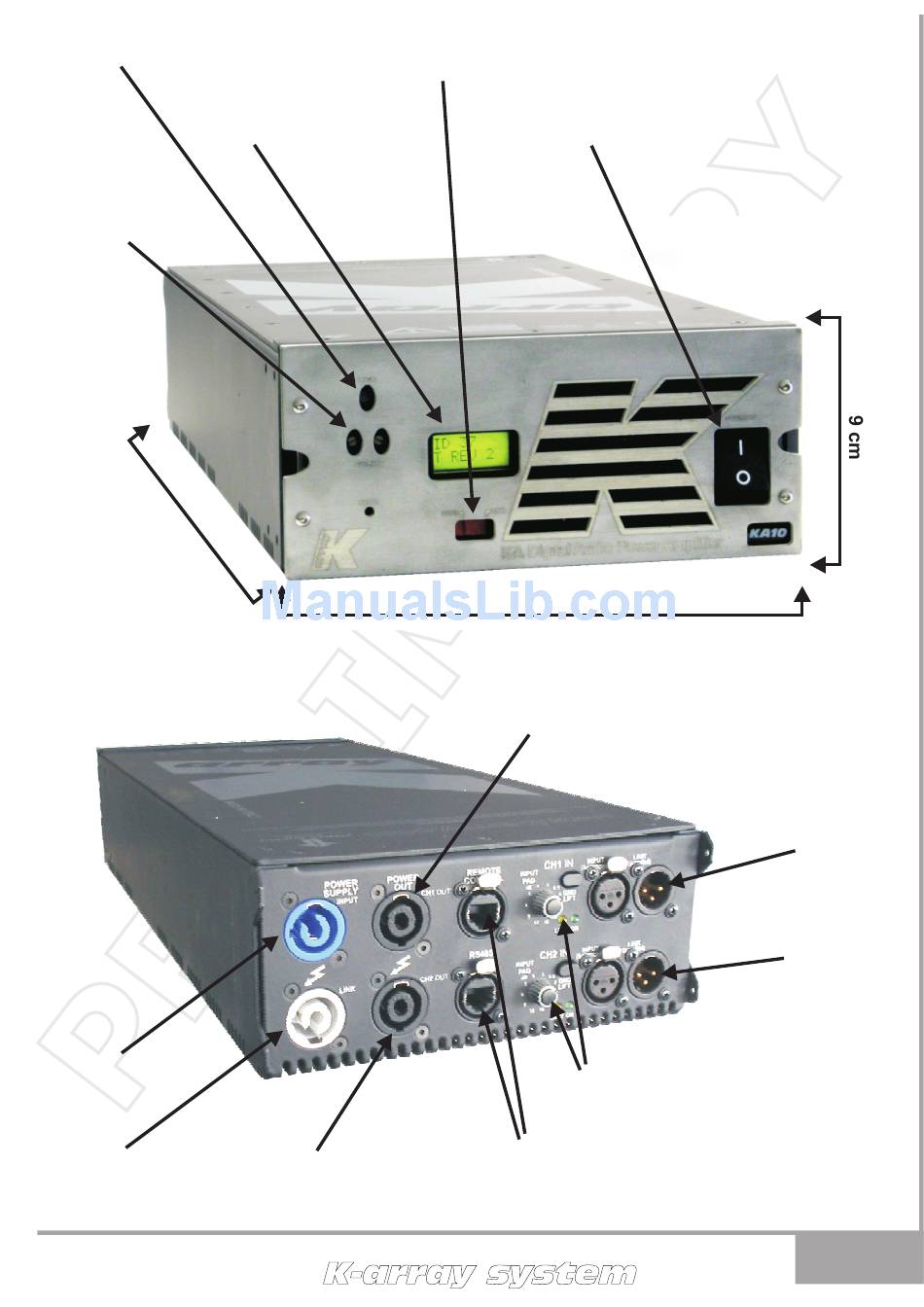

Power Switch - K-array KA40 User Manual

Preset selector
(push one to change, keep 10 sec to store)
Display
(ID number - Preset load)
Address selector
(rotary x10 - x1)
44,5 cm
Powercon IN
Powercon OUT
USER'S MANUAL
Dual / Link switch
(Dual mode Stereo independent channels / Link CH1 & CH2 for Bridge Use*)
CH2 Speakon OUT
(1+ 1-)

Power switch

20 cm
CH1 Speakon OUT
(1+ 1-)
CH2 Speakon OUT
(2+ 2-)
Input level PAD
Ground lift switch
RS485 Remote control
(Parallel)
CH1 XLR balanced
parallel connectors
CH2 XLR balanced
parallel connectors
*
The link mode is designed for Bridge applications,
the output signal of CH1 & CH2 is out of phase!
