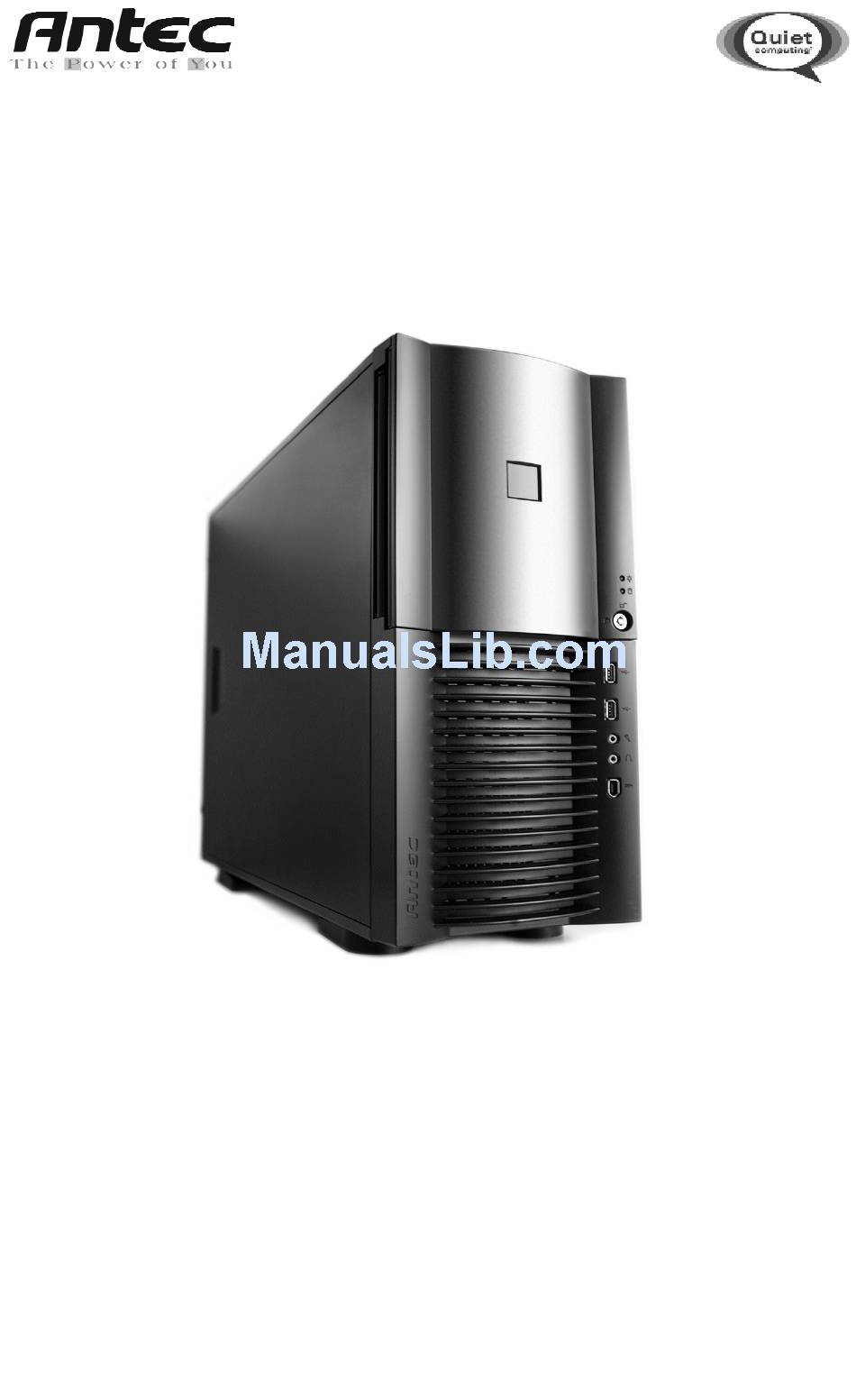

USER'S MANUAL
TITAN550

Advertisement

loading
Need help?

Need help?

Do you have a question about the TITAN550 and is the answer not in the manual?

Questions and answers

Related Manuals for Antec TITAN550

Summary of Contents for Antec TITAN550

  • Page 1 USER’S MANUAL TITAN550...
  • Page 2 The Titan has implemented a newly designed double hinge door, which allows the door to open up to 270º. The front bezel is easy to remove and replace for easy system installation. Titan550 features 6 individual hard drive trays, cooled by two 92mm fans. These drive trays are front accessible to further ease system integration or upgrading.

  • Page 3: Installing The Motherboard

    CONNECTING THE POWER AND LED This Antec TruePower 2.0 (TP2-550EPS12V) power supply is an EPS12V compatible power supply which comes with a configurable 24-pin Main Power Connector, an 8-pin +12V, and a 4-pin +12V Power Connector for the motherboard. It also includes four SATA connectors, five to seven 4-pin peripheral power connectors, one to two 4-pin Floppy Drive power connectors, and one PCI Express graphic card power connector.
  • Page 4 Note: Please check your motherboard manual for your USB header pin layout and make sure it matches the attached table. If it does not match this Intel standard, please call Antec Customer Support at (800) 22ANTEC (North America) or +31 (0) 10 462-2060 (Europe) for a USB adapter.

  • Page 5: Connecting The Audio Ports

    CONNECTING THE AUDIO PORTS There is an Intel standard 10-pin connector (with also 7 individual wires with connectors) coming out from the front panel speaker and microphone connection. If your motherboard supports Intel’s standard onboard audio connector, you can plug in the 10-pin connector directly onto the board.

  • Page 6: Cooling System

    Front Fans: You can install two 92mm fans in front of the internal 3.5" drives. These fans must be installed so that the air is blowing into the case. We recommend using Antec 92mm TriCool fans to balance quiet performance with maximum cooling. See our web site for product information.
  • Page 7 TITAN550 – TECHNICAL DIAGRAMS Description Description Left Side Panel 3.5" Drive Bay Cover Expansion Slot Cover Front Bezel Mounting Bracket Top Panel Front Door 5.25" EMI Shielding Hinge HDD Drive Rail 3.5" Drive Rail with Rubber Grommet 5.25" to 3.5" Adapter (Sheet Metal)
  • Page 8 TITAN550 - DIAGRAMMES TECHNIQUES Description Description Panneau gauche Couvercle de baie d'unité de 3,5 pouces Couvercle de logements d'extension Support de fixation de la collerette d'encastrement avant Panneau supérieur Porte avant Blindage EMI 5,25 pouces Charnière Rail de lecteur HDD Rail de lecteur de 3,5 pouces avec œillet en caoutchouc...
  • Page 9 TITAN550 - DIAGRAMMI TECNICI Descrizione Descrizione Pannello laterale sinistro Copertura della guida di fissaggio per unità da 3,5" Coperchio dello slot di espansione Staffa di montaggio per pannello anteriore Pannello superiore Sportello anteriore Schermatura EMI per unità da 5,25" Cerniera Binario per unità...
  • Page 10 +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2005 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China. Version 1.0.5 2/02/2005...
