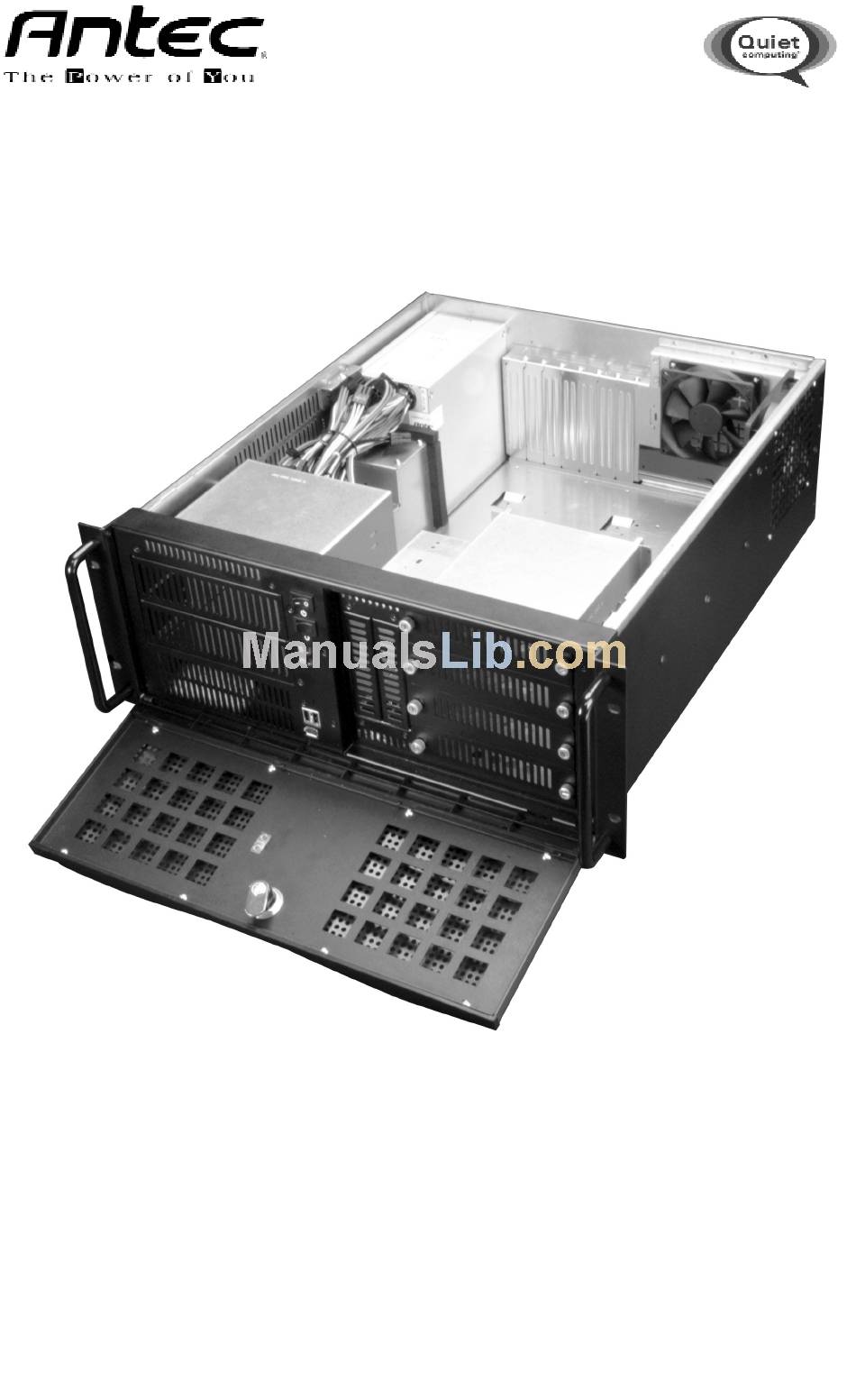

- Page 1 STUDIO SERIES TAKE 4 4U RACKMOUNT CASE User’s Manual...
-
Page 2: Connecting The Power
At Antec, we continually refine and improve our products to ensure the highest quality. So it's possible that your new case may differ slightly from the descriptions in this manual. This isn't a problem; it's simply an improvement. As of the date of publication, all features, descriptions, and illustrations in this manual are correct. -
Page 3: Connecting The Usb Ports
Note: Please check your motherboard manual for your USB header pin layout and make sure it matches the attached table. If it does not match, please call Antec customer support at (800) 22ANTEC (North America) or at +31 (0) 10 462-2060 (Europe) to buy a USB adapter. This adapter will allow you to connect the front USB to your motherboard on a pin-by-pin basis. -
Page 4: Device Installation
High if you choose to connect the fan to a fan control device or to the Fan-Only connector found on some of Antec's power supplies. A fan-controlled-device regulates the fan speed by varying the voltage to it. The voltage may start as low as 4.5 V to 5V. Connecting a TriCool set on Medium or Low to a fan-control device may result in the fan not being able to start. - Page 5 Specifications: Size: Rated Voltage: Operating Voltage: Speed Input Current High 0.24A (max.) 2000RPM Medium 0.2A 1600RPM 0.13A 1200RPM Specifications: Size: Rated Voltage: Operating Voltage: Speed Input Current High 0.2A (max.) 2000RPM Medium 0.1A 1600RPM 0.08A 1200RPM 120 x 120 x 25.4 mm DC 12V 10.2V ~ 13.8V Air Flow - at...
- Page 6 © Copyright 2005 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China. Antec, Inc. 47900 Fremont Blvd. Fremont, CA 94538 Tel: 510-770-1200 Fax: 510-770-1288 Antec Europe B.V.
