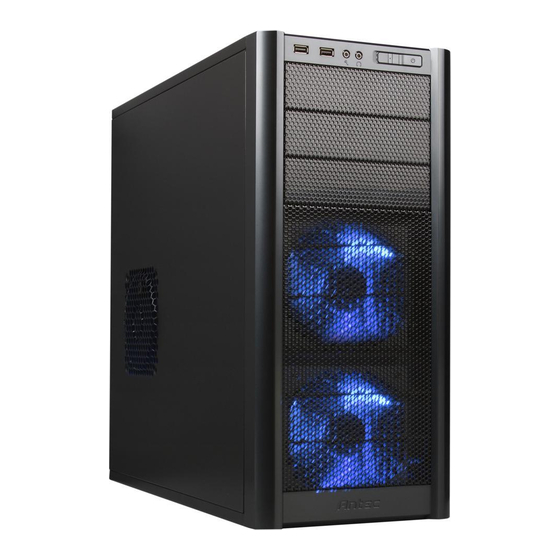

Three Hundred Illusion
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Three Hundred Illusion and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Antec Three Hundred Illusion

Summary of Contents for Antec Three Hundred Illusion

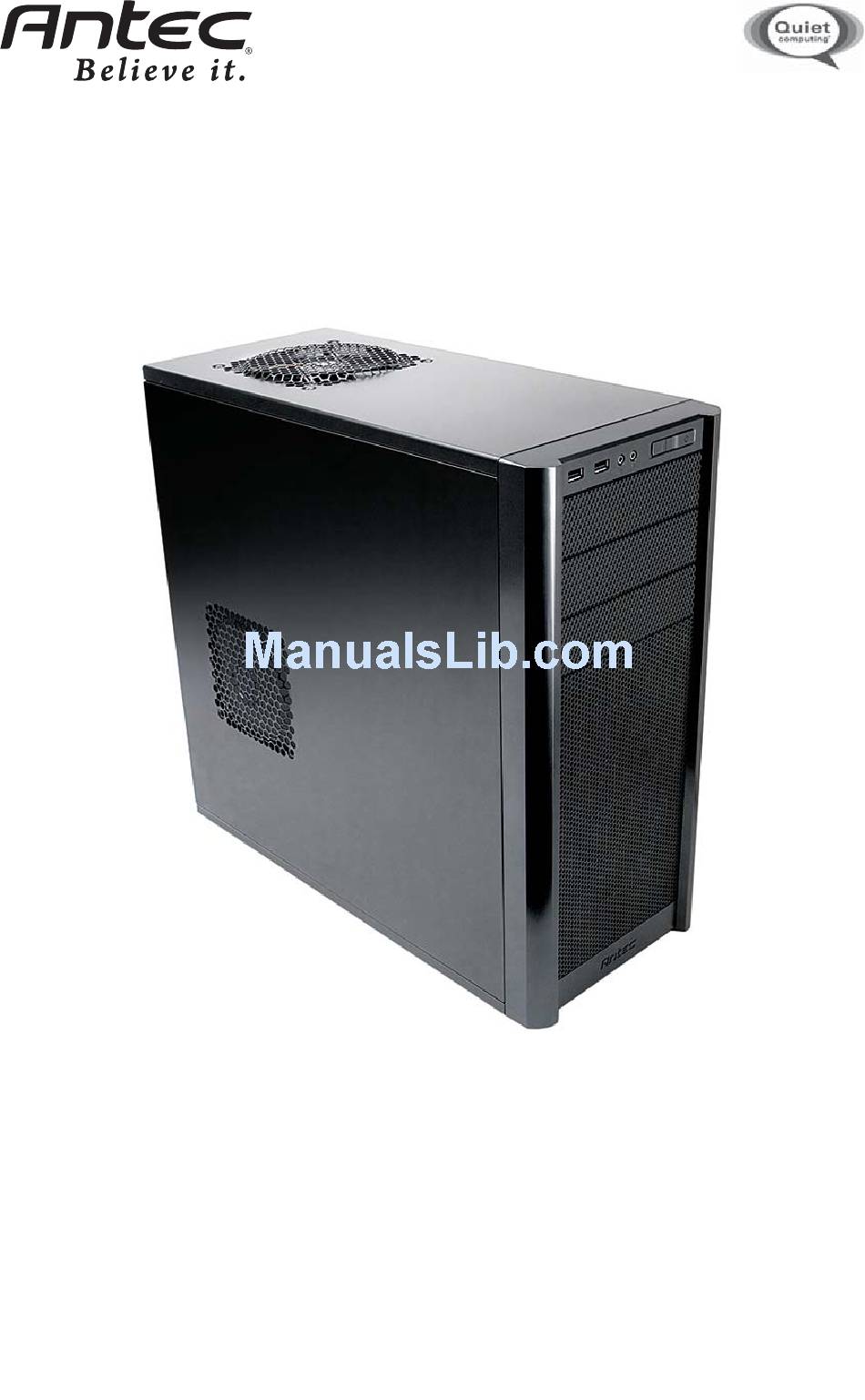

  • Page 1 Three Hundred Illusion User’s Manual...

  • Page 2: Installing The Motherboard

    Three Hundred Illusion User’s Manual Three Hundred Illusion – Gaming Case The Three Hundred Illusion comes without a power supply. Make sure you choose a power supply that is compatible with your computer components and has a long enough power harness to reach your motherboard and peripheral devices.

  • Page 3: Installing The Power Supply

    Note: Power supplies with fans on the bottom of the power supply will need to be mounted so that the fan is facing the top of the case. The Three Hundred Illusion provides mounting holes for power supplies with standard mounting layouts to be installed upside up or upside down.
  • Page 4 Connecting the Audio Ports (AC’97 and HDA) There is an Intel® standard 10-pin AC’97 connector and an Intel® 10-pin HDA (High Definition Audio) connector. You can connect either the AC’97 or the HDA connector, but not both at once, to your motherboard depending on the spec of the motherboard. Pin Assignment for Audio Ports (HDA and AC’97) Locate the internal audio connectors from your motherboard or sound card.

  • Page 5: Cable Management

    3.5” External Drive Bay Note: This case does not come with an external 3.5” drive bay. To install an external 3.5” drive bay, you need to contact Antec Customer Support to purchase a 5.25” to 3.5” adapter. Cable Management There is a cable management compartment behind the 3.5” cage.

  • Page 6: Optional Fans

    There is one optional 120mm fan mount—one side intake fan (on the left side panel). We recommend using an Antec 120mm TriCool™ fan and setting the speed to Low. These fans must be installed so that the air is blowing into the case.
  • Page 7 1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2009 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China.
