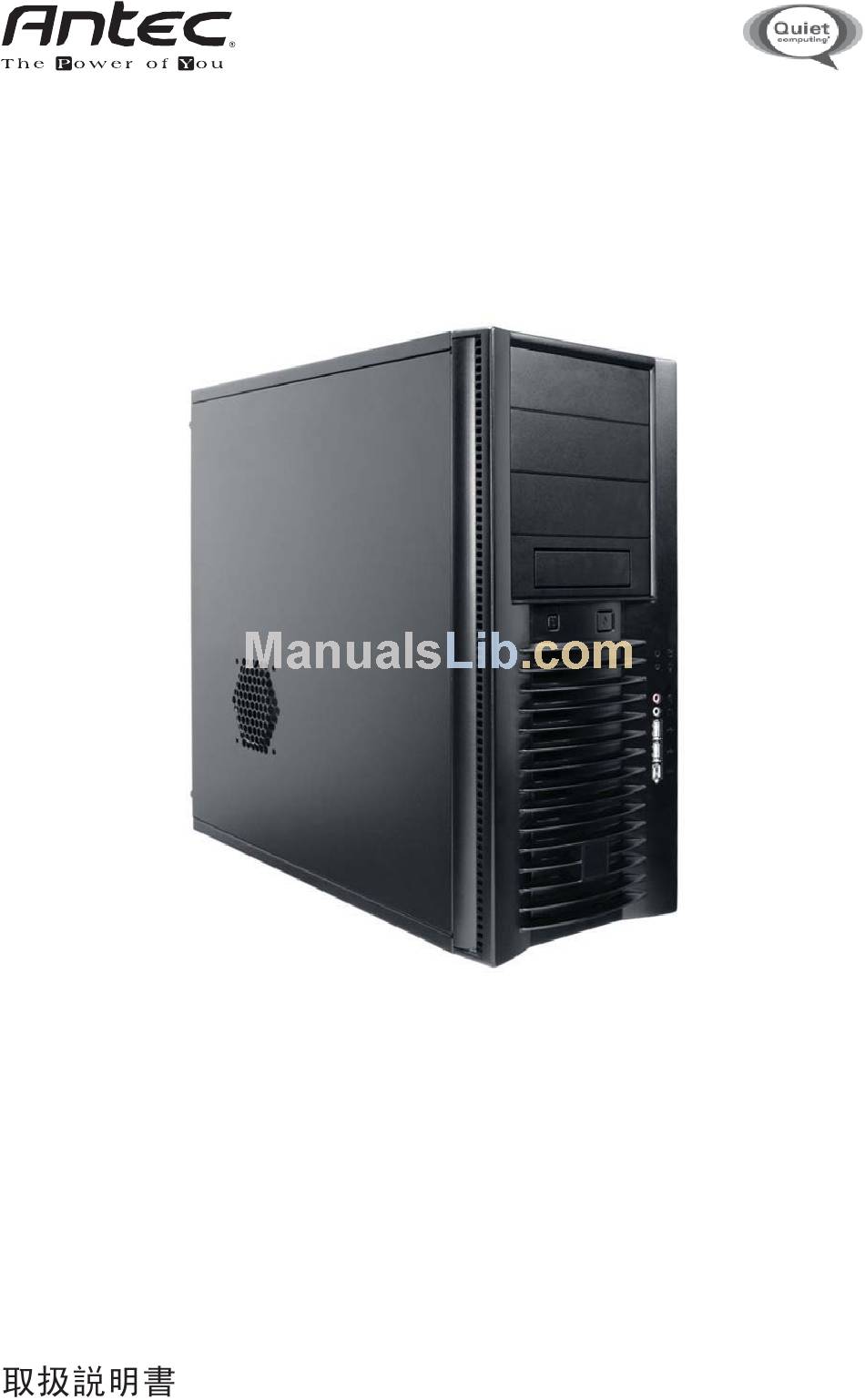

- Page 1 Atlas 550 Quiet Mini Server Case User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
- Page 2 Disclaimer This manual is intended only as a guide for Antec’s Computer Enclosures. For more comprehensive instructions on installing the motherboard and peripherals, please refer to the user’s manuals that come with those components.
- Page 3 Installing the Motherboard This manual does not cover CPU, RAM, or expansion card installation. Please consult the motherboard manual for specific mounting instructions and troubleshooting. Lay the case down with the open side facing up. The drive cages and power supply should be visible.
- Page 4 FireWire port to an IEEE 1394 add-on card that comes with an external-type IEEE 1394 connector, you will need a FireWire Internal Adapter. To order one, please visit Antec’s web store at http://www.antec.com/StoreFront.bok and search for part number 30031. This adapter will allow you to connect the front IEEE 1394 port to the external-type connector.
- Page 5 Connecting the Audio Ports (AC’ 97 and HDA) There is an Intel® standard 10-pin AC’ 97 connector and an Intel® 10-pin HDA (High Definition Audio) connector, either of which can be connected to your motherboard depending on the spec of the motherboard. Pin Assignment for Audio Ports (HDA and AC’97) Locate the internal audio connectors from your motherboard or sound card.
- Page 6 High if you choose to connect the fan to a fan control device or to the Fan-Only connector found on some of Antec’s power supplies. A fan- control-device regulates the fan speed by varying the voltage to it. The voltage may start as low as 4.5V to 5V.
- Page 7 You can install two 92mm fans to the fan cage in front of the internal 3.5” drives. These fans must be installed so that the air is blowing into the case. We recom- mend using Antec 92mm TriCool™ fans to balance quiet performance with maxi- mum cooling. See our web site for product information.
-
Page 8: Customer Support
1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2007 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China.
