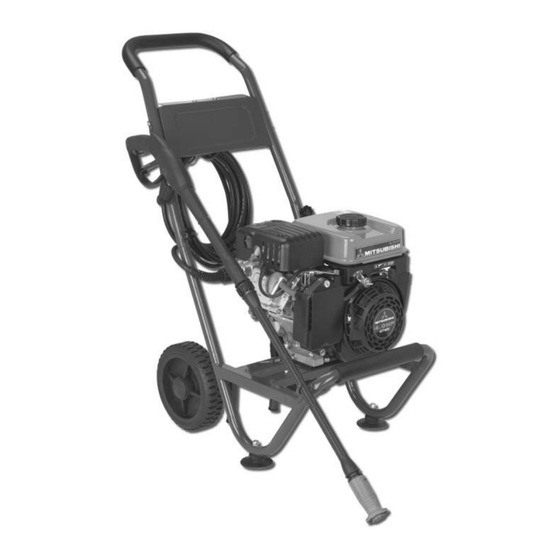

4HP Gas Pressure Washer
ASSEMBLY AND OPERATING INSTRUCTIONS
Diagrams within this manual may not be drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
Read this material before using this
product. Failure to do so can result in
serious injury.
SaVe THiS manual.
Copyright
No portion of this manual or any artwork contained herein may
be reproduced in any shape or form without the express written
consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
Distributed exclusively by Harbor Freight Tools
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
2007 by Harbor Freight Tools
©
95619
. All rights reserved.
®
.
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pacific hydrostar 95619
Summary of Contents for Pacific hydrostar 95619
-
Page 1: Assembly And Operating Instructions
ASSEMBLY AND OPERATING INSTRUCTIONS Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Distributed exclusively by Harbor Freight Tools ® 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our website at: http://www.harborfreight.com... -
Page 2: Specifications
Do not allow spray to strike you and do not spray toward people or animals. Do not spray the tool itself or any electrical source. ReV 07c SKU 95619 For technical questions please call 1-800-444-3353 Page 2... - Page 3 Take caution as some woods contain preservatives such as copper chromium arsenate (CCa) which can be toxic. When high pressure spraying extra care should be taken to avoid inhalation and minimize skin contact. SKU 95619 For technical questions please call 1-800-444-3353 Page 3...
- Page 4 Caution is necessary when near engine’s magneto or recoil starter. never touch the water jet. Never touch the water jet or point it at people or animals. Injury may result. SKU 95619 For technical questions please call 1-800-444-3353 Page 4...
- Page 5 It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. SKU 95619 For technical questions please call 1-800-444-3353 Page 5...
- Page 6 When unpacking, check to make sure the parts shown in the photo below and in the diagrams on pages 13 and 14 are included. If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover of this manual.
- Page 7 Coil the High Pressure Hose (38) and hang it on the Hose Bracket (8). Hang the Spray Gun on the Gun Bracket (14). Connect a garden hose water supply to the garden hose connector. Spray Nozzle SKU 95619 For technical questions please call 1-800-444-3353 Page 7...
-
Page 8: Using Detergent
Spray Nozzle out for low pressure. The pressure washer will draw the detergent up through the Detergent Suction Hose (40) and mix the water and detergent automati- cally, at about a 6% detergent 94% water ratio. See Figure B. SKU 95619 For technical questions please call 1-800-444-3353 Page 8... -
Page 9: Engine Setup
Remove Gas Cap and fill the Fuel Tank with unleaded gasoline. Do not overfill. Be careful not to spill gasoline. Clean any spills before starting engine. Gas Cap Oil Cap Fuel Tank Oil Cap ReV 08b SKU 95619 For technical questions please call 1-800-444-3353 Page 9... -
Page 10: Operation
Open the Choke Lever (B) to the right. Hold the Spray Gun (37) with both hands and begin spraying. Do not allow the engine to run for more than three minutes without spraying. SKU 95619 For technical questions please call 1-800-444-3353 Page 10... -
Page 11: Cleaning Recommendations
If a thin layer of water accumulates on the surface, periodically use the stream to direct this water towards the drainage. After the major cleaning is done, sweep the surface with the stream to help direct loose debris toward the drainage. SKU 95619 For technical questions please call 1-800-444-3353 Page 11... -
Page 12: Cleaning Suggestions
Note: The Pump Assembly comes filled with oil. The pump oil must be changed after the initial break-in period of 50 hours of operation and every 100 hours thereafter. ReV 07i SKU 95619 For technical questions please call 1-800-444-3353 Page 12... -
Page 13: Troubleshooting
Water inlet screen is clogged Remove inlet screen and rinse out Nozzle is clogged Remove nozzle and clean Nozzle has mineral build up Remove nozzle and clean with vinegar ReV 07i SKU 95619 For technical questions please call 1-800-444-3353 Page 13... -
Page 14: Assembly Drawing
Assembly Drawing NOTE: Some parts are listed and shown for illustration purposes only and are not available individually as replacement parts. SKU 95619 For technical questions please call 1-800-444-3353 Page 14... -
Page 15: Parts List
ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. SKU 95619 For technical questions please call 1-800-444-3353 Page 15... -
Page 16: Limited 1-Year Warranty
1 YeaR WaRRanTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of one year from the date of purchase (90 days if used by a professional contractor or if used as rental equipment).
