1650 psi electric pressure washer

Advertisement

Owner's Manual & Safety Instructions
Save This Manual
inspection, maintenance and cleaning procedures. Write the product's serial number in the back of the manual
near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and
the receipt in a safe and dry place for future reference.
1650 PSI
ElEctrIc
PrESSurE
WaShEr
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-800-444-3353 as soon as possible.
©
Copyright
2011 by Harbor Freight Tools
this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools. Diagrams
within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described
herein. Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly, operating,
Visit our website at: http://www.harborfreight.com
Email our technical support at: tech@harborfreight.com
®
. All rights reserved. No portion of
Read this material before using this product.
Failure to do so can result in serious injury.
SaVE thiS manual.
ITEM 69488

Advertisement

Table of Contents
loading

Summary of Contents for Pacific hydrostar 1650 PSI

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
  • Page 2: Table Of Contents

    table of contents Safety ............3 Maintenance ..........14 Setup ............7 Parts Lists and Assembly Diagrams ..16 Specifications ..........7 Warranty ............ 20 Operation ........... 10 WaRninG SymBOlS anD DEFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
  • Page 3: Safety

    impORtant SaFEty inStRuctiOnS WaRninG When using this product basic precautions should always be followed, including the following: Safety Warnings 1. Read all the instructions before using the product. 11. Connect to individual branch circuit only. 2. To reduce the risk of injury, close supervision is 12.
  • Page 4 Operating precautions 1. Disconnect the plug from the power source 12. WARNING: The brass components of this before making any adjustments, changing product contain lead, a chemical known to accessories, or storing pressure washers. Such the State of California to cause birth defects preventive safety measures reduce the risk of (or other reproductive harm).
  • Page 5 Vibration hazard: This tool vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent physical injury, particularly to the hands, arms and shoulders. To reduce the risk of vibration-related injury: 1. Anyone using vibrating tools regularly or for an 2.
  • Page 6: Save These Instructions

    Symbology WARNING marking concerning Risk Double Insulated of Eye Injury. Wear ANSI-approved safety goggles with side shields. Canadian Standards Association Read the manual before set-up and/or use. Interlink Testing Services WARNING marking concerning Risk of Electric Shock. Properly connect power cord Volts Alternating Current to appropriate outlet.
  • Page 7: Specifications

    Specifications Electrical Rating 120V~ / 60Hz / 13A Maximum Pressure 1650 PSI Maximum Flow Rate 1.25 GPM High Pressure Hose 13-3/4 FT. Power Cord 35 ft. Setup – Before use: Read the EntiRE impORtant SaFEty inFORmatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product.
  • Page 8: Assembly

    assembly note: For additional information regarding the parts listed in the following pages, refer to Parts Lists and Assembly Diagrams on page 16. Some of the following assembly steps may have been performed at the factory. 1. Check the Inlet Strainer for any blockage, including packaging debris.
  • Page 9: Featuresnote

    Features note: Familiarize yourself with the location and function of all of the machine’s controls before proceeding to setup of the machine. 1. this item is equipped with a the GFci device does not protect GFci (Ground Fault circuit interruption) plug. against electrical shock due to contact Read and follow these GFci precautions: with both circuit conductors or a fault...
  • Page 10: Work Piece/Work Area Set Up

    Operating instructions Read the EntiRE impORtant SaFEty inFORmatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Work piece and Work area Set up 1. Designate a work area that is clean and well-lit. 4.

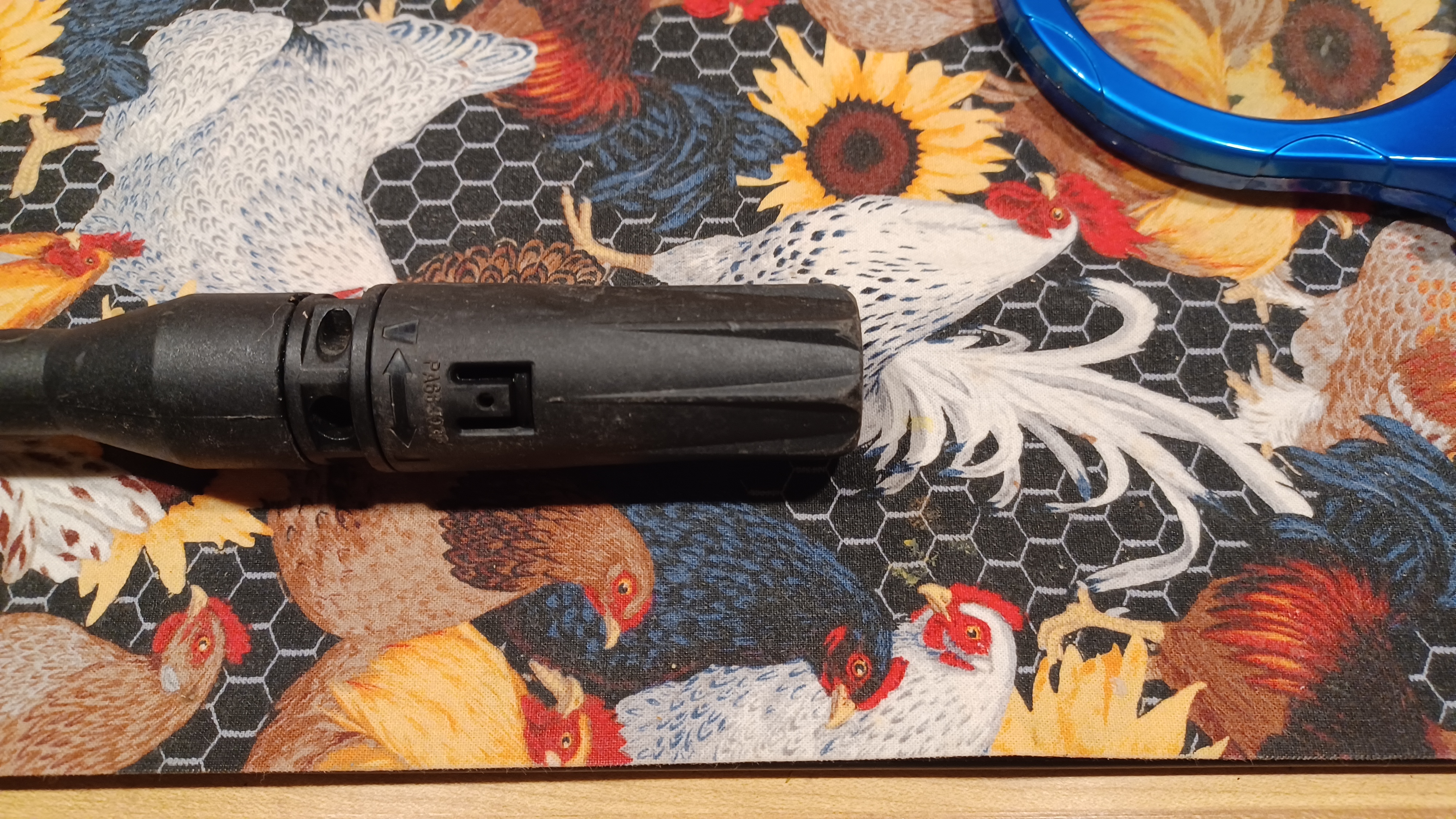

  • Page 11: Tool Set Up

    tool Set up tO pREVEnt SERiOuS injuRy FROm acciDEntal OpERatiOn: turn the power Switch of the pressure washer off, unplug it from its electrical outlet, and relieve all pressure in a safe manner before making adjustments or installing accessories. 1. MAKE SURE THE WASHER IS CLEAN AND READy FOR USE.
  • Page 12: General Operating Instructions

    General Operating instructions 1. Point the Nozzle in a safe direction. Press in the note: If the unit does not turn on or turns off Safety Lock Button to unlock the Trigger and suddenly, check and reset the GFCI. squeeze the Trigger to check that all pressure is 4.
  • Page 13: Cleaning Recommendations

    Operating tips For a vertical or sloped surface: Become Familiar With your machine: a. Wash from the top down. 1. Before beginning work, set aside enough time to b. If possible, direct the stream in the same familiarize yourself with this machine’s cleaning direction as the slope towards a draining area.
  • Page 14: Maintenance

    maintenance and Servicing tO pREVEnt SERiOuS injuRy FROm acciDEntal OpERatiOn: turn the power Switch of the tool off, unplug the tool from its electrical outlet, shut off the water supply and safely discharge all residual water pressure from the unit before performing any inspection, maintenance, or cleaning procedures. tO pREVEnt SERiOuS injuRy FROm tOOl FailuRE: Do not use damaged equipment.
  • Page 15: Troubleshooting

    troubleshooting problem possible causes likely Solutions Pressure Washer 1. Cord not connected. 1. Check that cord is plugged in. will not start 2. No power at outlet. 2. Check power at outlet. If outlet is unpowered, turn off tool and check circuit breaker. If breaker is tripped, make sure circuit is right capacity for tool and circuit has no other loads.
  • Page 16: Pump Assembly Parts List

    parts lists and assembly Diagrams pump assembly parts list part Description part Description Outlet Capscrew Spring Spring Washer O-Ring Pump Body Sleeve O-Ring O-Ring O-Ring Valve Core Valve Seat Valve Core Spring Valve Core jacket Valve O-Ring Valve Spring O-Ring O-Ring Piston Valve Cap...
  • Page 17 pump assembly Diagram SKU 69488 For technical questions, please call 1-800-444-3353. Page 17...
  • Page 18 pressure Washer parts list and assembly Diagram part Description part Description Power Switch Cover Wheel Power Switch Heat Guard Front Panel Fan Cover Upper Housing Pump Asm. Waterproof Cover Left Motor Cover Right Motor Cover Cushion Cord Protector Gun/Extension Nozzle Holder Cord Clamp Upper Heat Guard Handle Extension...
  • Page 19 plEaSE REaD thE FOllOWinG caREFully THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLy DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLy. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANy REPRESENTATION OR WARRANTy OF ANy KIND TO THE BUyER THAT HE OR SHE IS qUALIFIED TO MAKE ANy REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS qUALIFIED TO REPLACE ANy PARTS OF THE PRODUCT.
  • Page 20: Warranty

    limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
